Revision 6/F3501
© Moffat Ltd, August 2006 E25 Convection Oven
-8-

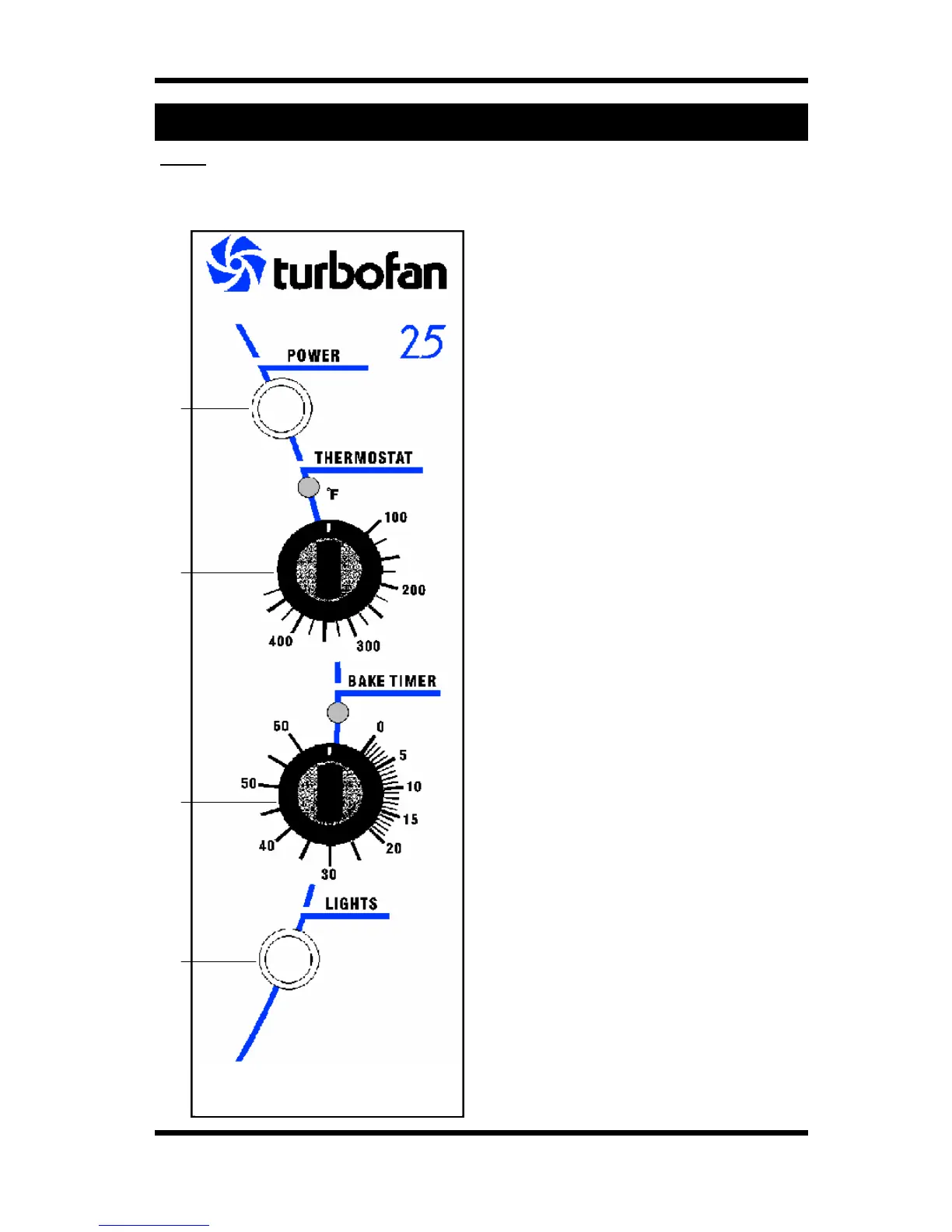

3.1 DESCRIPTION OF CONTROLS - E25
1. POWER
Depress to switch power on or off (switch
illuminates when power is on).
2. THERMOSTAT
Temperature range 50 - 250°C (120 - 480°F).
Indicator illuminates when elements are cycling
ON to maintain set temperature.
3. BAKE TIMER
1 Hour bake timer.
(Indicator illuminates when “time up” (0)
reached, and buzzer sounds).
4. LIGHT SWITCH
Push switch to activate light.
(Oven light illuminates while button depressed).
3. OPERATION
NOTE: A full user’s operation manual is supplied with the product and can be used for further
referencing of installation, operation and service.
4
3
2
1
