Revision 6/F3501
© Moffat Ltd, August 2006 E25 Convection Oven
-9-
1. POWER
Depress to switch power on or off (switch
illuminates when power is on).
2. THERMOSTAT
Temperature range 50 - 270°C (120 - 525°F).
(Indicator illuminates when elements are cycling
ON to maintain set temperature.
BROIL POSITION (E25B Only) - The BROIL
indicator will illuminate indicating that the
BROIL function has been set. The HEATING
indicator will also illuminate whenever the ele-
ments are on.
3. BAKE TIMER
1 Hour bake timer.
(Indicator illuminates when “time up” (0)
reached, and buzzer sounds).
4. LIGHT SWITCH
Push switch to activate light.
(Oven light illuminates while button depressed).

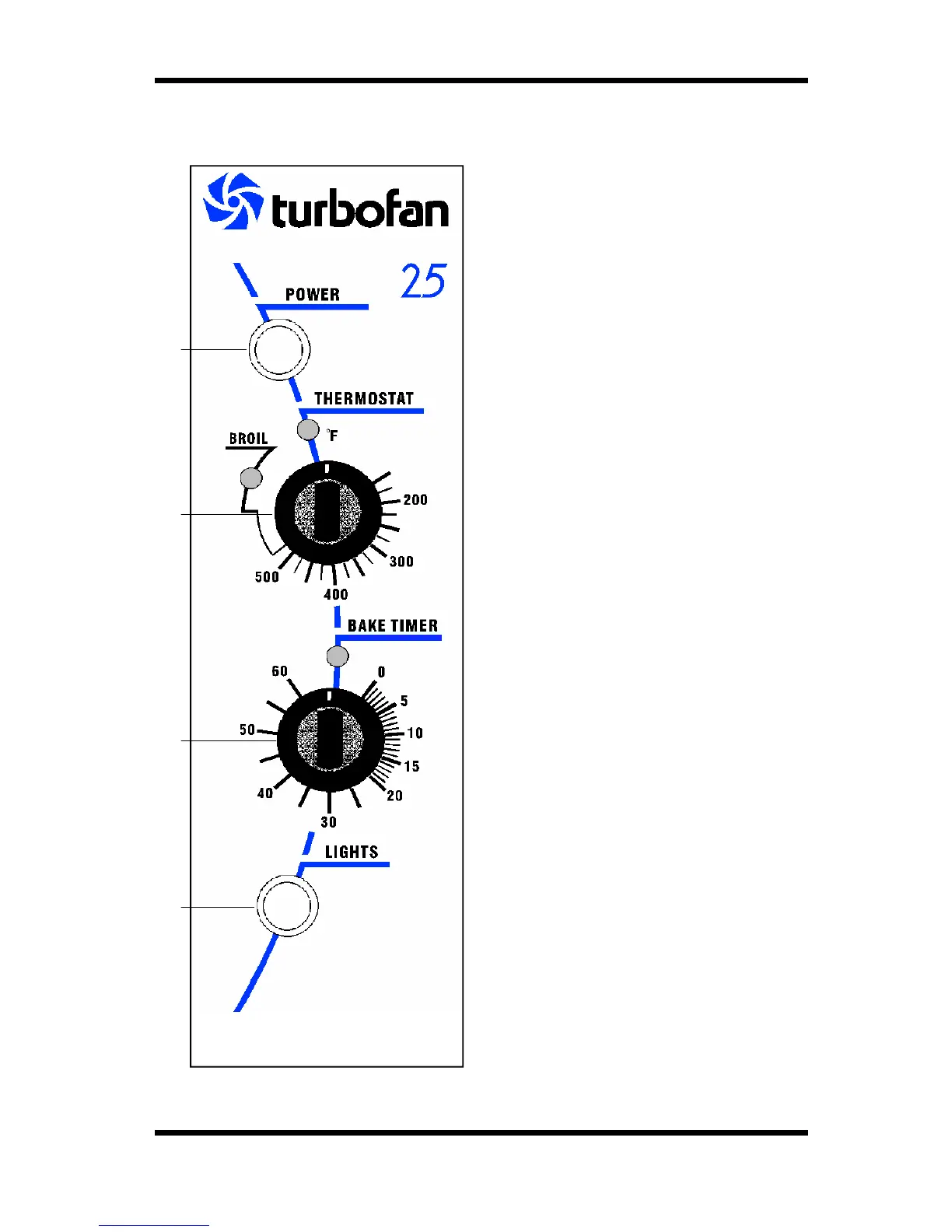

3.2 DESCRIPTION OF CONTROLS - E25B
4
3
2
1
