Moffat turbofan E25 - E25 MS Control Panel Assembly

Revision 6/F3501
© Moffat Ltd, August 2006 E25 Convection Oven
-44-

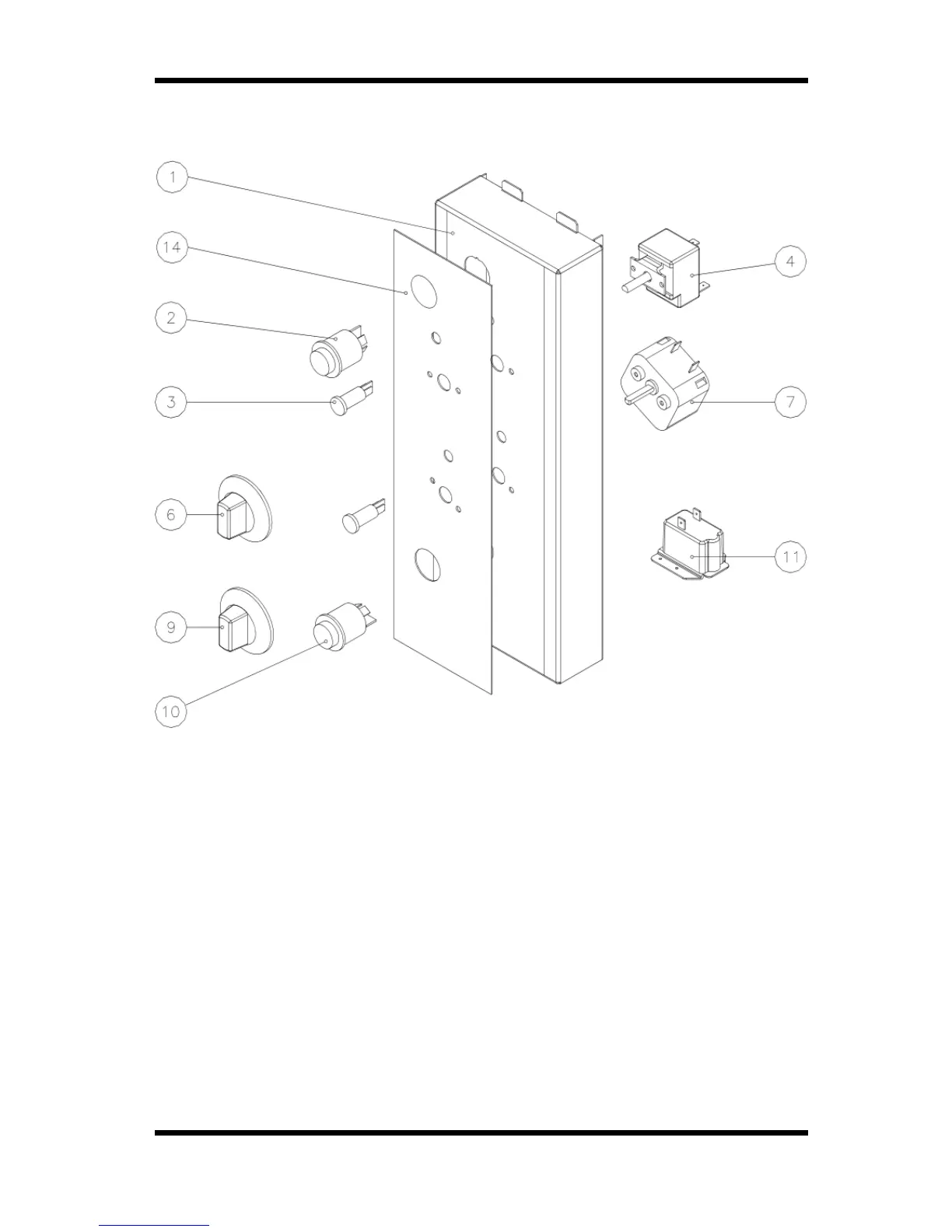

11.4.1 CONTROL PANEL ASSEMBLY - E25MS
Pos Part No. Description
1 026487 CONTROL PANEL
2 021514 POWER SWITCH - 110V
021473 POWER SWITCH - 240V
3 023857 NEON - 110V
020849 NEON - 240V
4 023211 THERMOSTAT
6 021472 KNOB -THERMOSTAT
7 011760 1 HOUR TIMER
9 020823 KNOB TIMER
10 021474 LIGHT SWITCH
11 015822 BUZZER - 110V
011794 BUZZER - 240V
14 026495 OVERLAY - MOFFAT
026608 OVERLAY - BLUE SEAL
