Section 5: Service Instructions

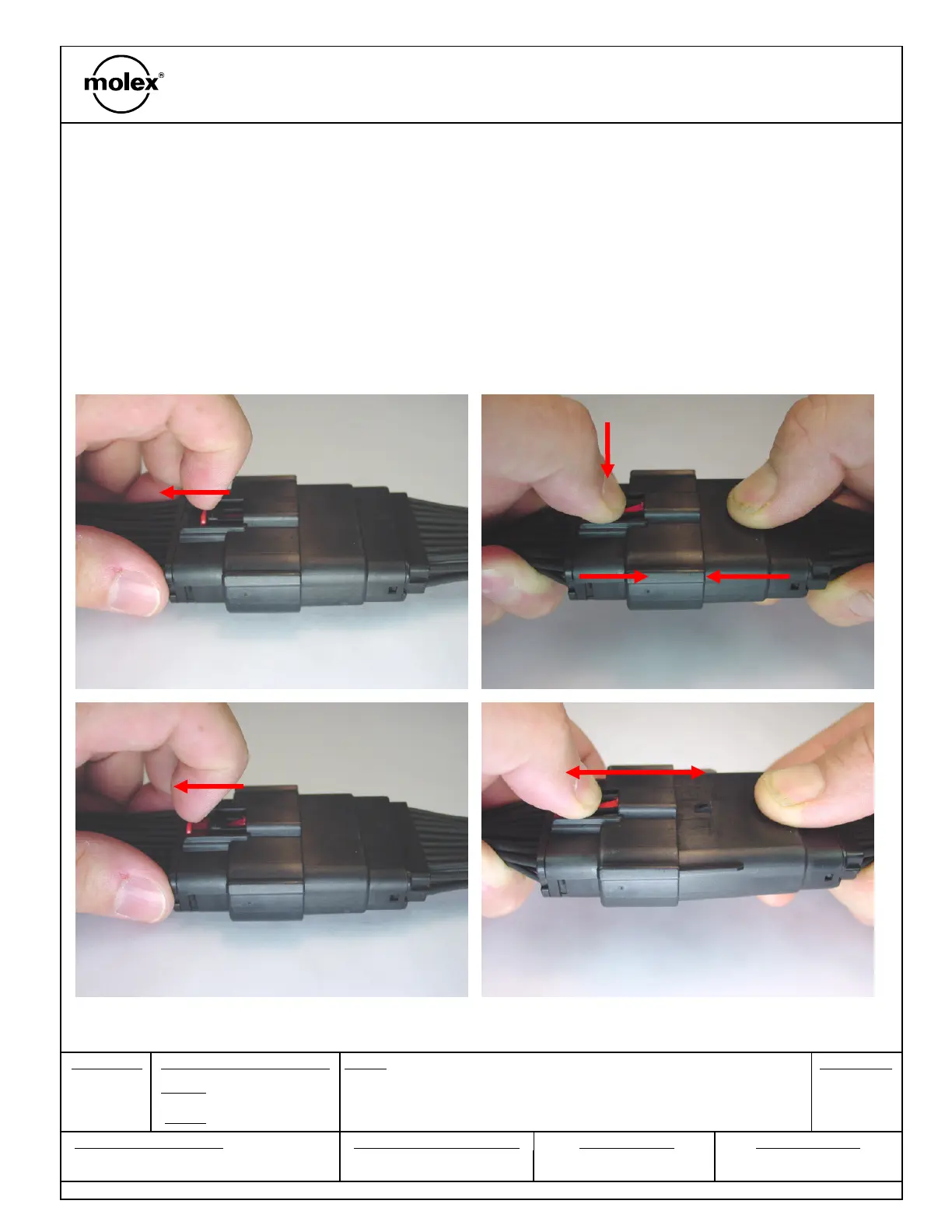

A. Un-mate procedure
To un
-
mate the connectors, pull
back on the CPA
(step 1, and step 2)
.
Push connector together to unload the latch system. Then depress the
latch with your thumb (step 3). Continue to depress the latch, and gently
pull apart connector assemblies (step 4).
Step 1
Step 2
Step3
Step 4
