Section 5: Service Instructions

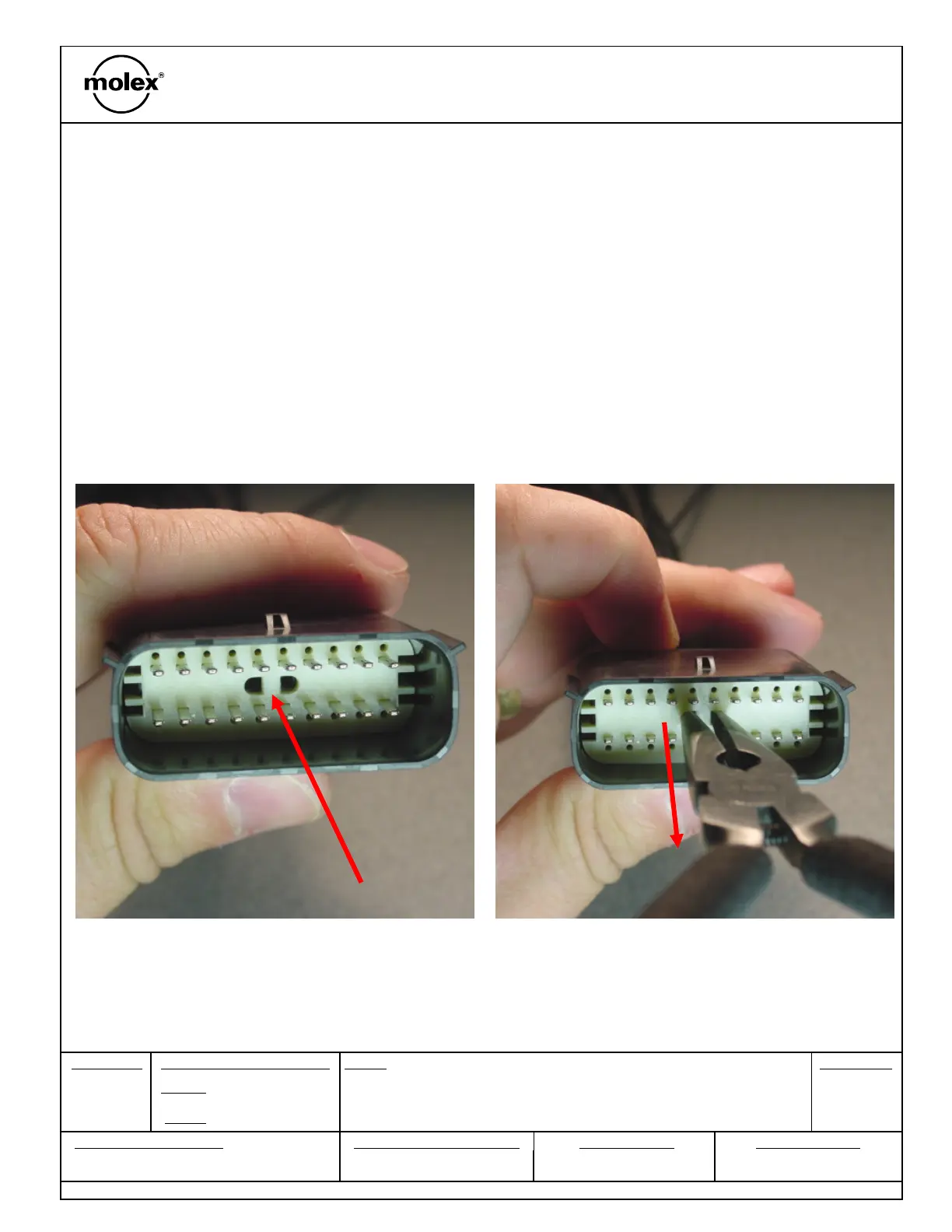

B. TPA servicing Blade side
The TPA should never be fully removed from the connector housing!
Excessive force may damage the TPA!
Step 1: Insert a small pair of needle nose pliers to the designated grab
point
Step 2: Pull back 5.0 mm, gently, until the TPA reaches pre-lock position.
Grab point
Pull back gently
Approximately
5.0mm
