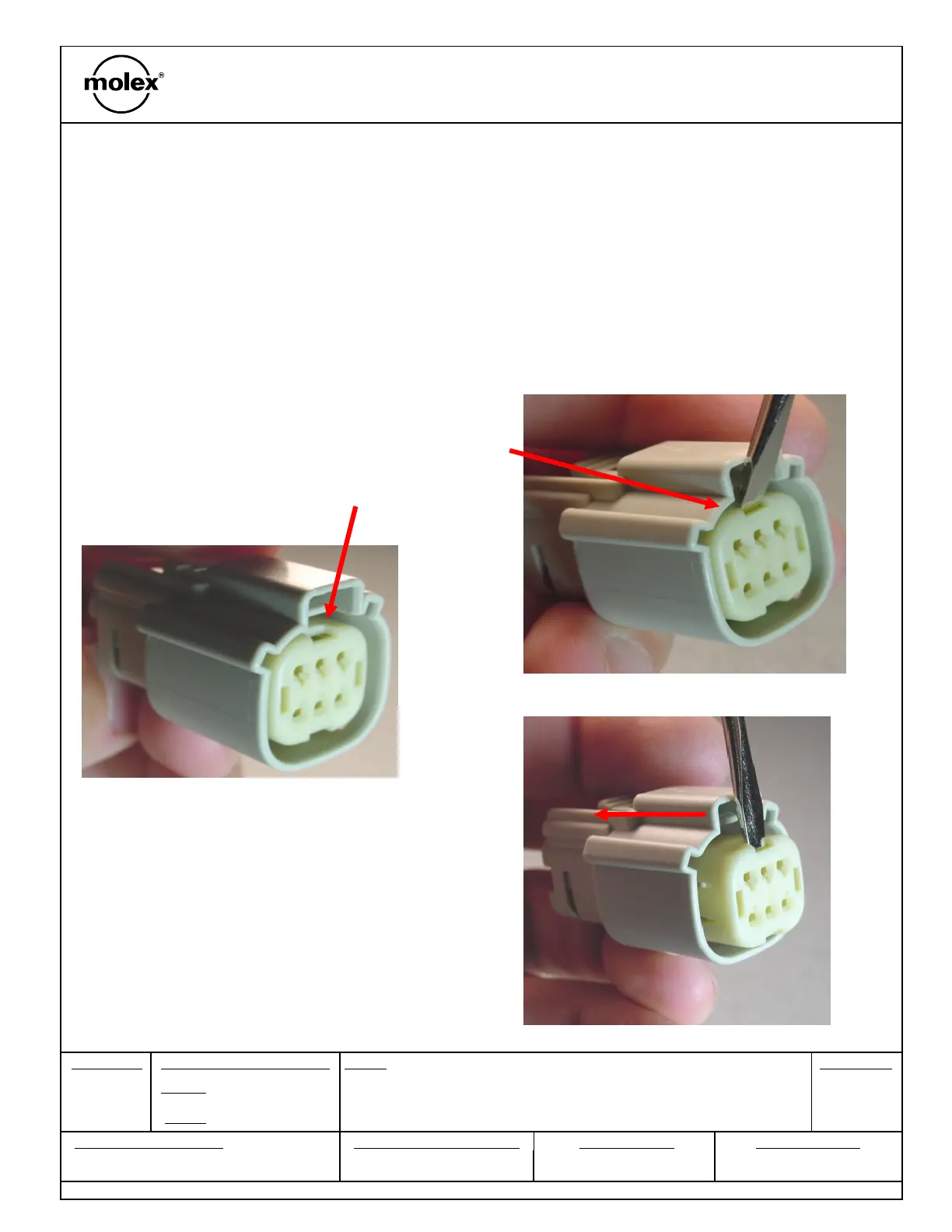

Step 1: Insert a small screwdriver (max width= 3.0 mm) into the designated
pry point
Step 2: Using the housing as a pivot point gently pry out on the TPA, until it
reaches pre-lock position (5.0 mm, travel)
Section 5: Service Instructions
C. TPA servicing Receptacle side
Pry Point
Step 1
Step 2
The TPA should never be fully removed
from the connector housing! Excessive
force may damage the TPA!
