Step 1: Using the 1.50 mm service too
l #63813
-
1500, insert the tip
into the terminal service hole adjacent to the terminal to be serviced.
Step 2: Push straight down gently and apply pressure to release
locking finger. This motion will release the locking finger, “picking”
is not required. Cavity plugs are removed in the same manner.
Do not apply any lateral force, this may damage the
tool, or the locking finger!
Do not use excessive force, excessive force can
damage the lock finger!
Do not insert the service tool at an angle, this may
cause damage to the terminal!
Section 5: Service Instructions
D. 1.50 mm terminal removal

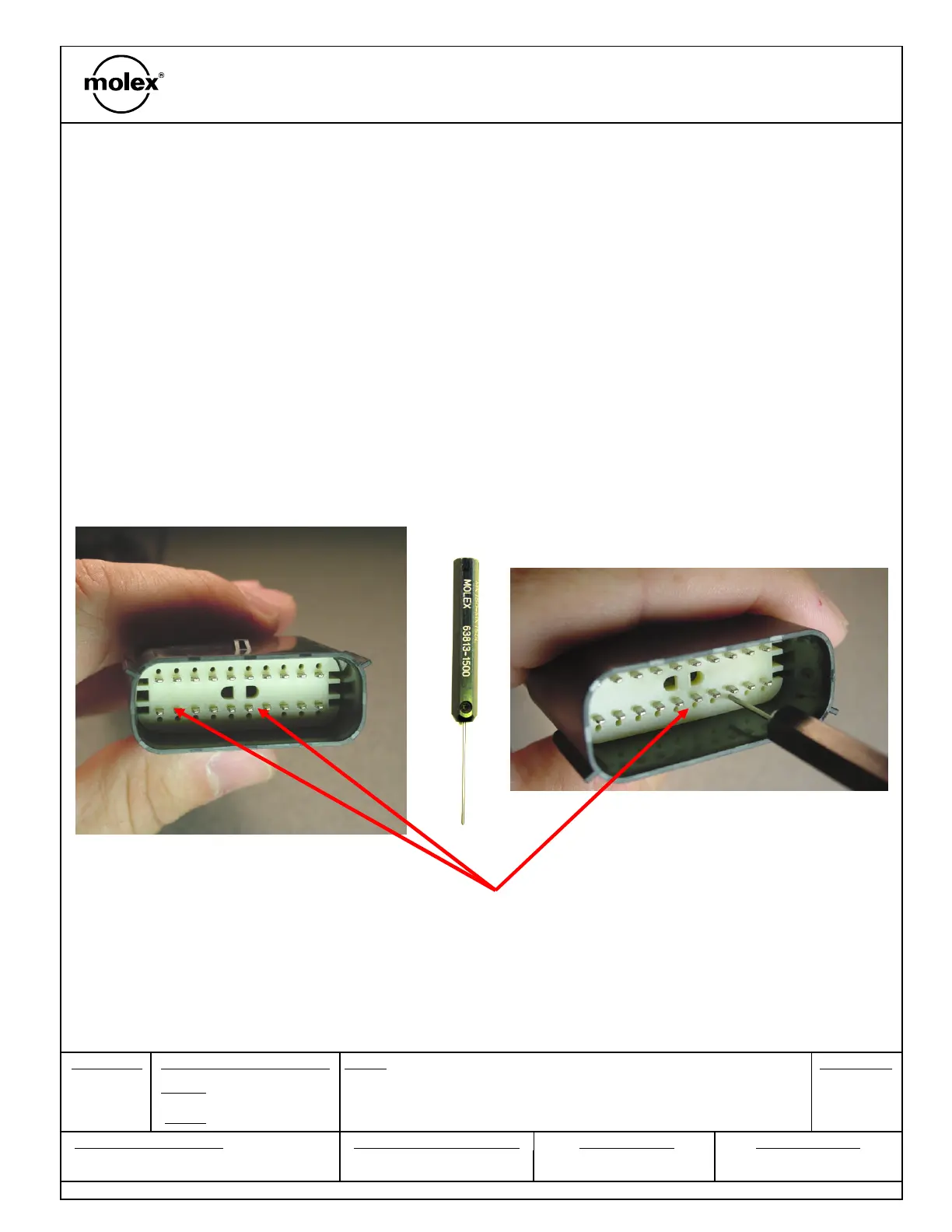

Service Ports
Service tool must be 90° to the connector face!
