Section 6: Electrical Continuity Checking
• Preferred method of probing
Fixtures used for continuity testing must meet the row and pitch dimensions as
identified in Section 6. Fixtures outside these requirements could result in
damage to the connector and/or terminal.

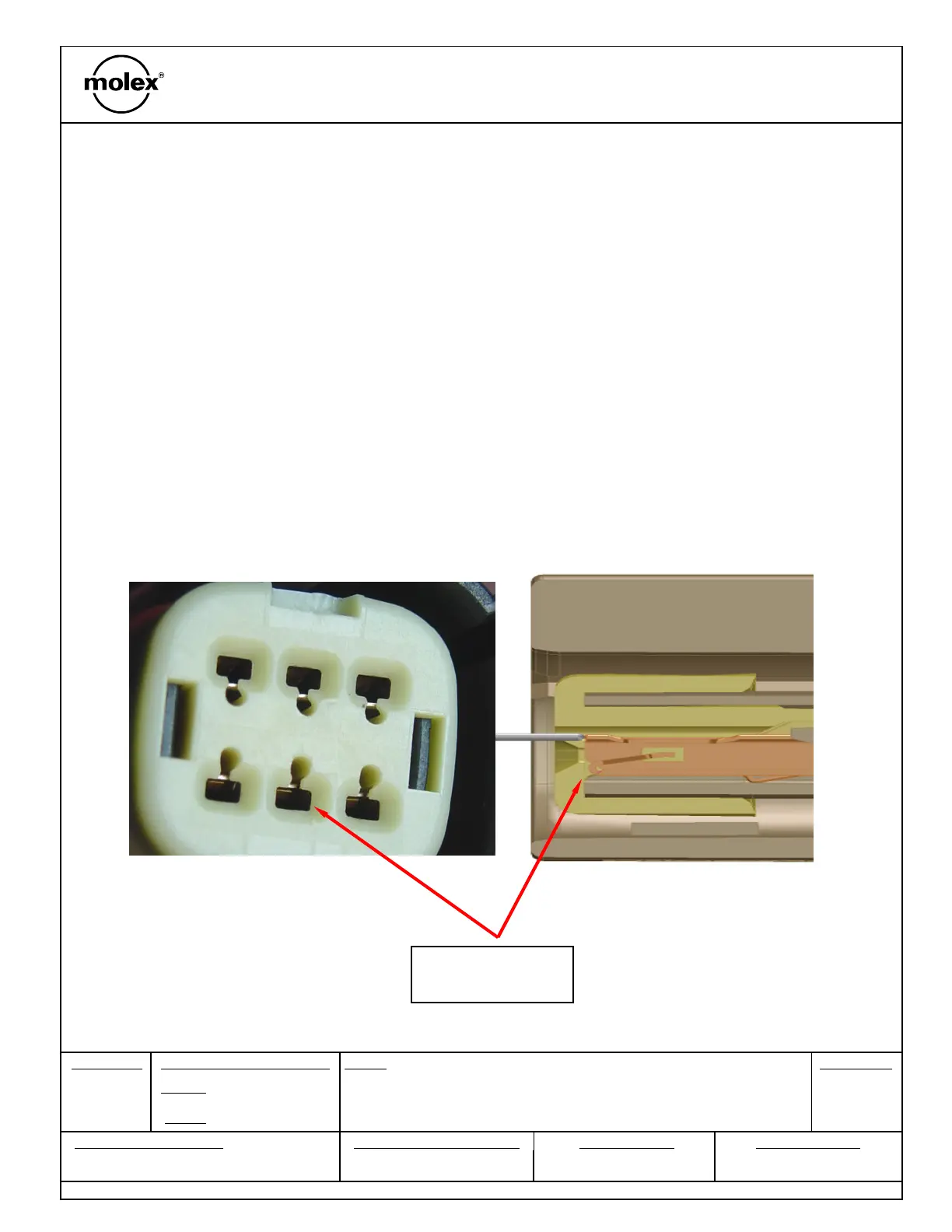

Molex Receptacle connector View of probe pin female terminal
When TPA allows access to the box, probe using this method.
Check electrical continuity on the terminal by inserting probe pin between
terminal access hole and terminal opening with a 0.50 mm probe.
Shown below are pictures of MX150 Sealed connector. Unsealed connectors
must be probed at the same location (between access hole and terminal
opening)
(0.50) mm probe
Must use this pin
or damage will
occur!
