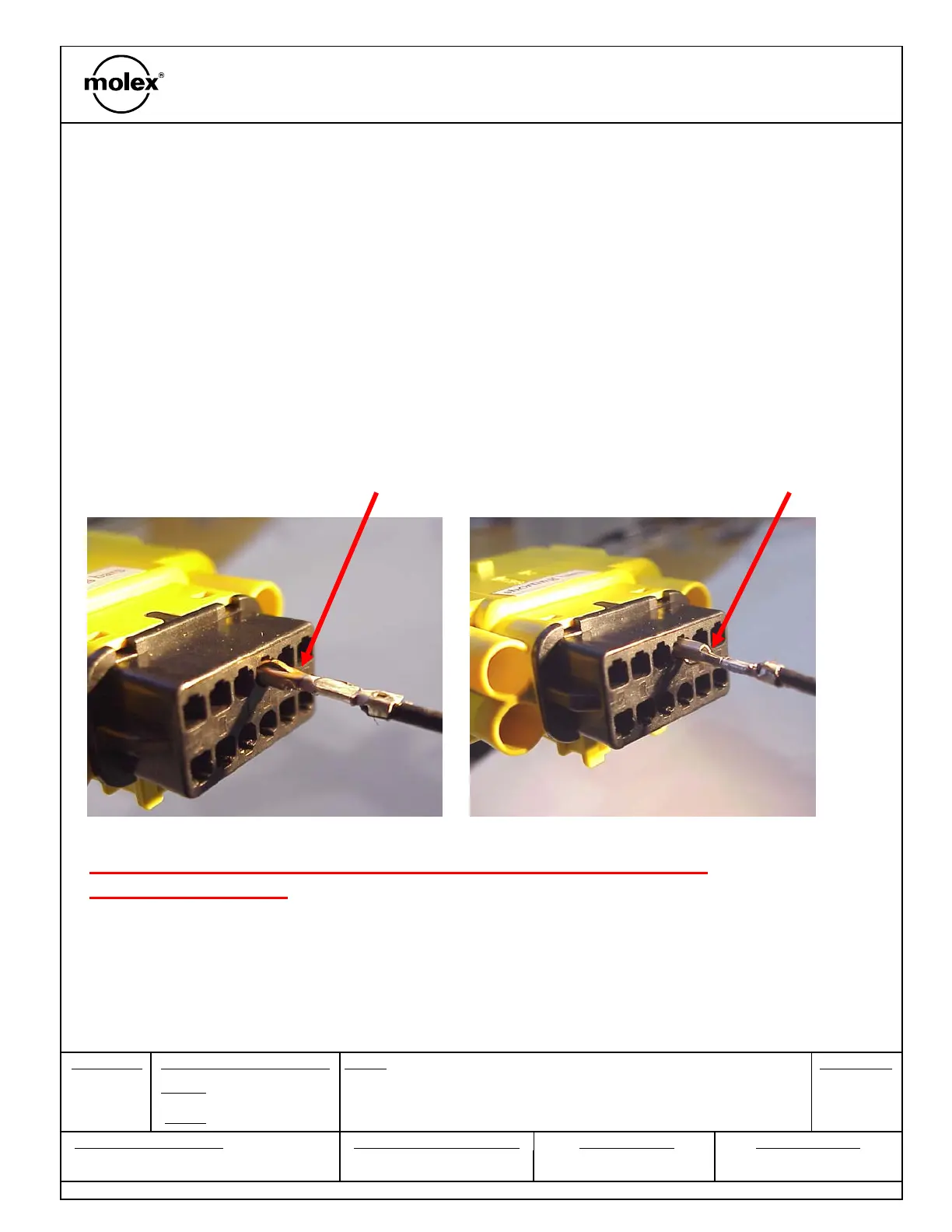

With TPA still in pre-lock position, orient terminal to rear of connector.
Grip the wire no less than 30 mm from the terminal insulation crimp and
insert through appropriate circuit opening. If resistance is encountered,
retract the terminal and adjust the angle of insertion. Continue inserting
the terminal until it stops and locks up on the lock finger with an
audible click.
Correct Orientation
180
°
°°
°
Mis-orientation
Section 8: Connector Assembly
D. 1.5 mm Shorting Bar Terminal Installation
Do not apply excessive force, this may damage the terminal
orientation feature!
