APPLICATION SPECIFICATION
REVISION: ECR/ECN INFORMATION: SHEET No.
EC No:
ABC2001-9999
1
DATE:
2008/16/03
TITLE:
MX150 Application Guide
55 of 62
DOCUMENT NUMBER: CREATED / REVISED BY: CHECKED BY: APPROVED BY:
Brian Zelinski Steve Verzyl Scott Marceau
TEMPLATE FILENAME: APPLICATION_SPEC[SIZE_A](V.1).DOC
Section 8: Service
Instructions

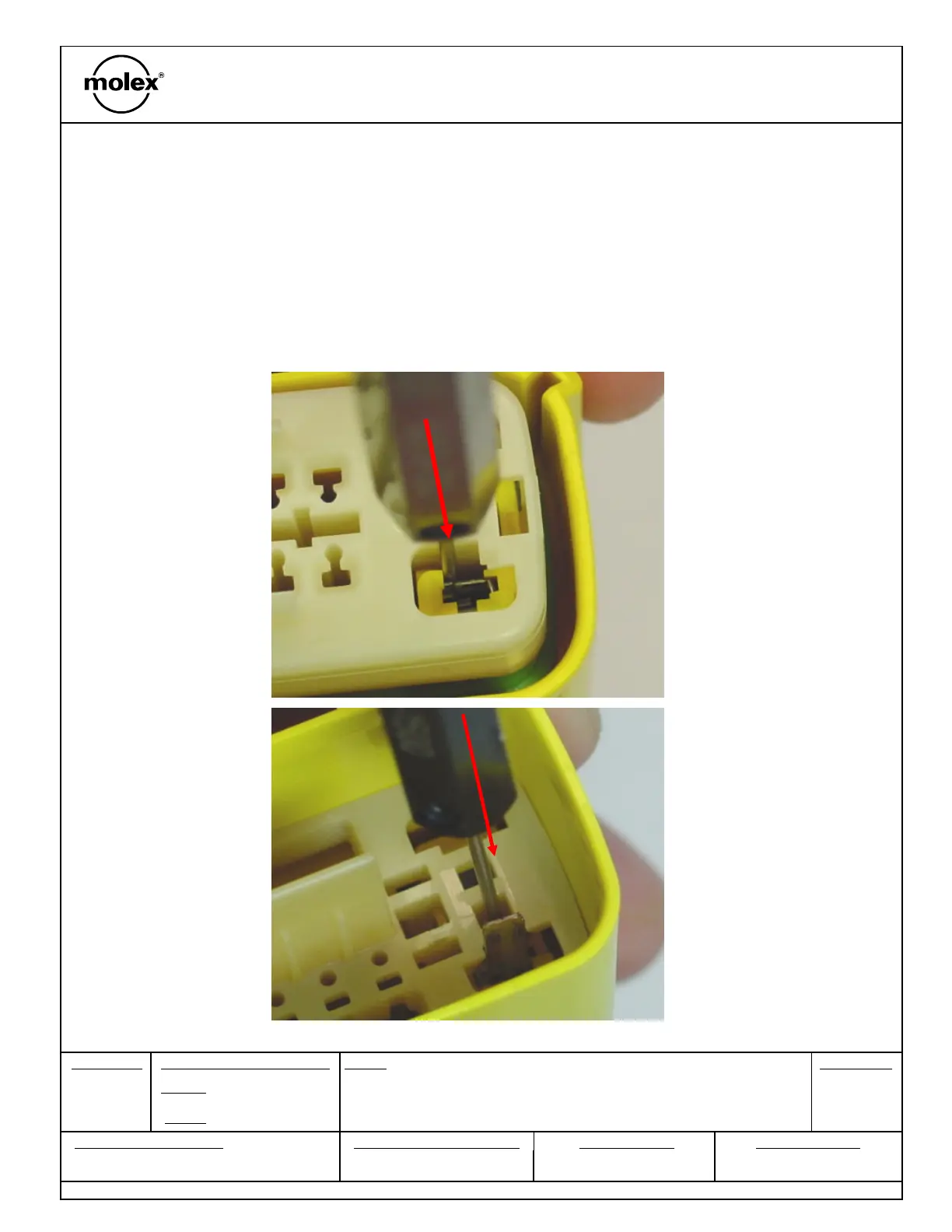

Step 1: Using the 2.8 mm service tool #63813-1500, insert
the tip into the terminal service hole adjacent to the terminal
to be serviced.
Step 2: Push down gently to release locki
