Section 2: Product Summary
D. Receptacle/Blade Terminal
Terminal Features
Base Material - Copper Alloy
Plating Options - Tin, Gold, Silver
Wire Sizes: 14,16,18,20,22 AWG
1.5, 1.0, 0.8, 0.5 mm
2
Refer to Section 7 for crimping details.

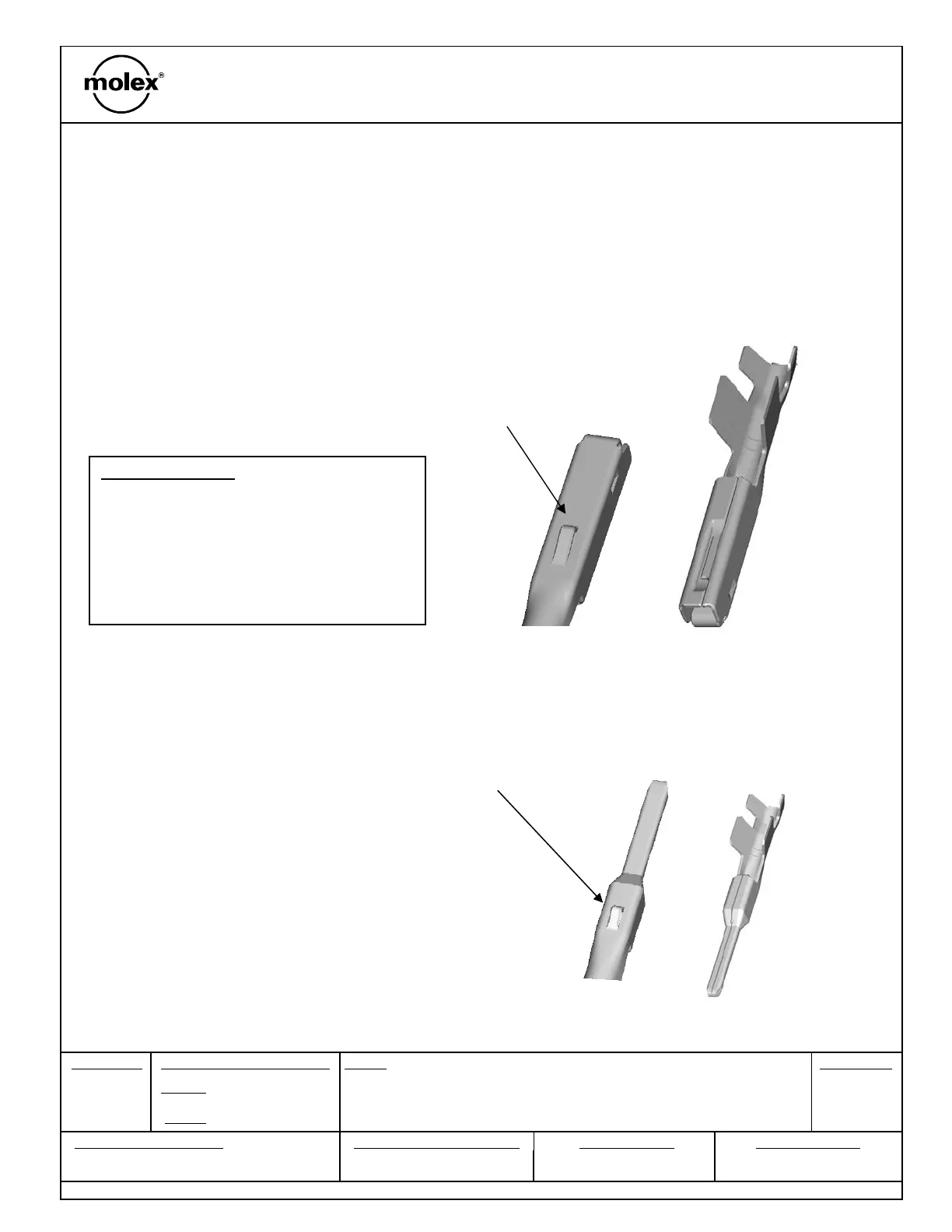

Blade Terminal
Receptacle Terminal
Orientation Feature
Orientation Feature
