32
T2 Terminator

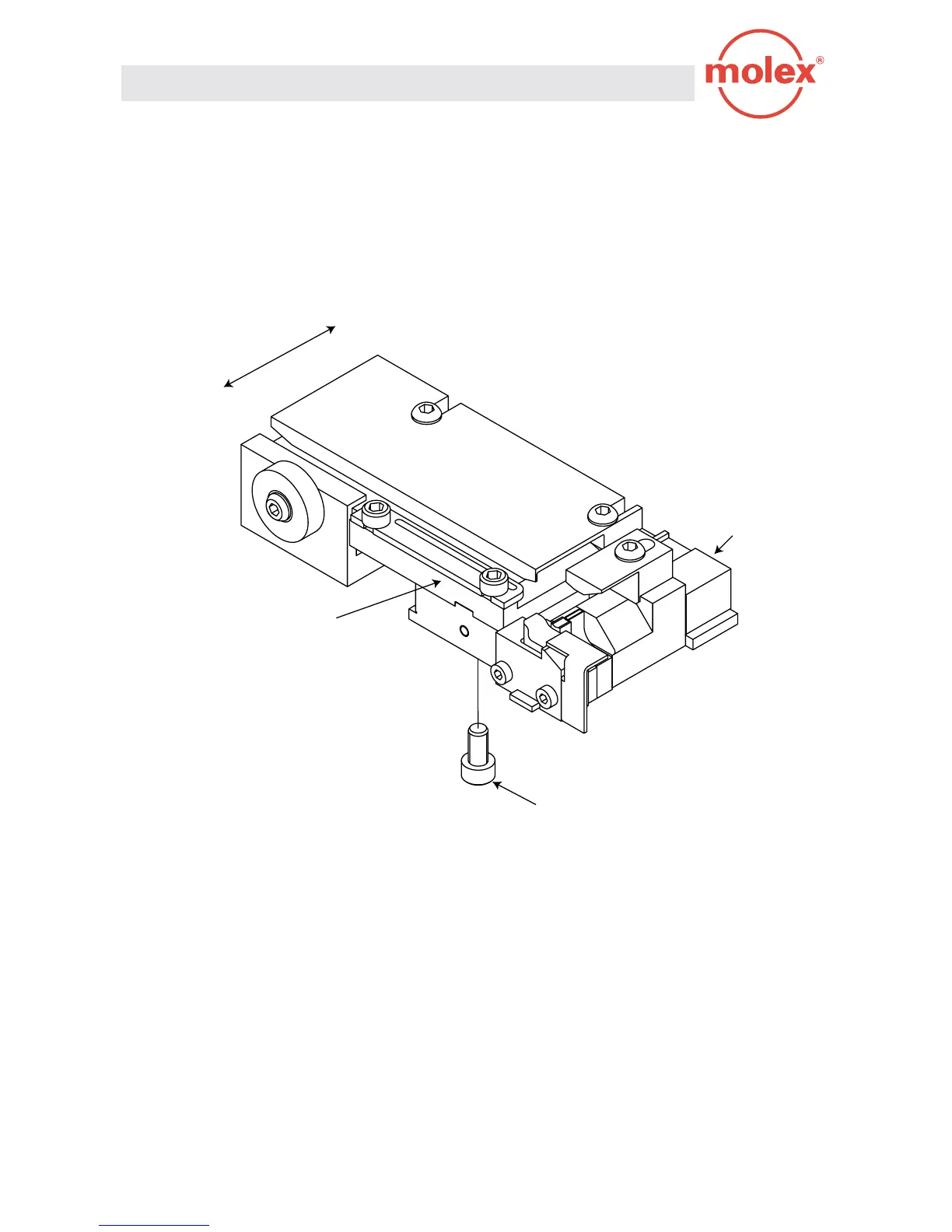

Track Adjustment T2 Series
The T2 Terminator allows for adjustment of both the bellmouth and cut-off tab by loosening the 6 mm S.H.C.S and
moving the terminator track in or out to achive desired conditions on crimp.
Track Adjustment Back
Track Adjustment Front
Terminal Track
M5 x 10 Lg. S.H.C.S.
T2 Terminator
Base
T2 TERMINATOR
Fig. 10
