1.4 Delivery Check
Qty
Terminator 1
Sample crimped terminals 5
Manual 1
Setup & Specification Documents 1
1.5 Tools
The following tools are recommended for setup and adjustments of the terminator tool.
1. Metric Allen Set
2. English Allen Set (for older terminator tools)
3. Large and Small Screwdriver
4. Cresent Wrench
5. Pliers (needle nose)
6. Crimp Micrometer
7. Eye Loop (10x)
8. Wire Stripper/Cutter
1.6 Safety & Work Area Check

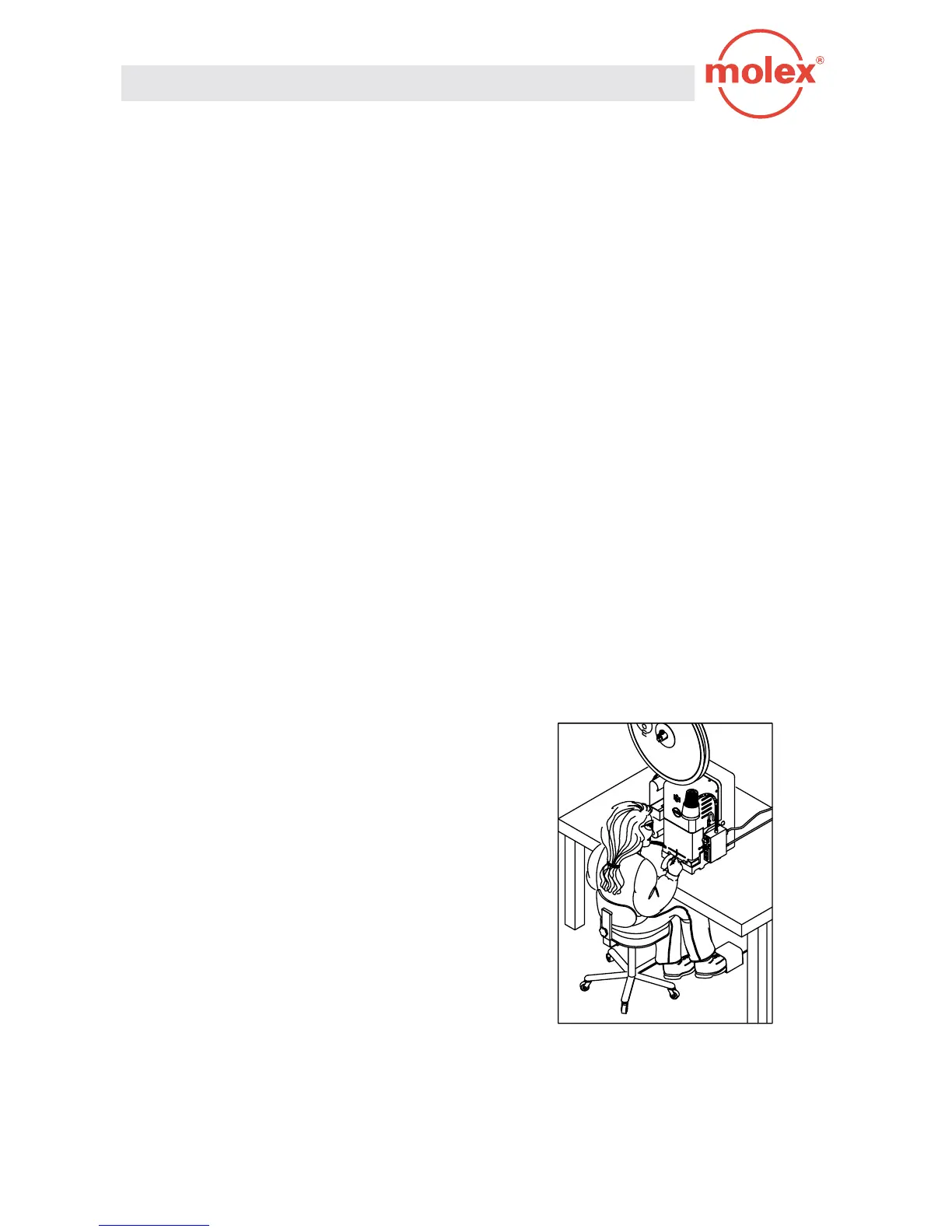

Check that the crimping position is ergonomic for the
operator’s size. A bench height of 762 to 813 mm (30
to 32 inches) will provide operator comfort, and allow
both feet to rest on the ground. The foot pedal should
be positioned for ease of reach.
Check that the press position is located paralleled and
approximately 150 mm (6 inches) from the edge of the
table. A chair or stool, with adjustable height and
backrest should be provided for maximum comfort and
back support to the operator. Adjust press light to give
appropriate visibility to the work area.
Check that the operators and observers are wearing
approved safety goggles when the press is in operation
and/or service.
