T2 Terminator Bill of Materials
Item No. Order No. Description Qty.
1 638008501 T2 Terminator Base 1
2 638000108 Terminal Track 1
3 690280660 Drag Springs 2
4 638000316 Guide Pin-Drag Frame 2
5 638000312 Drag Frame 1
6 638000115 Spacer Tube 1
7 638000313 Drag Cam 1
8 M4 x 12 Lg. B.H.C.S. 1
9 M5 x 10 Lg. S.H.C.S. 1

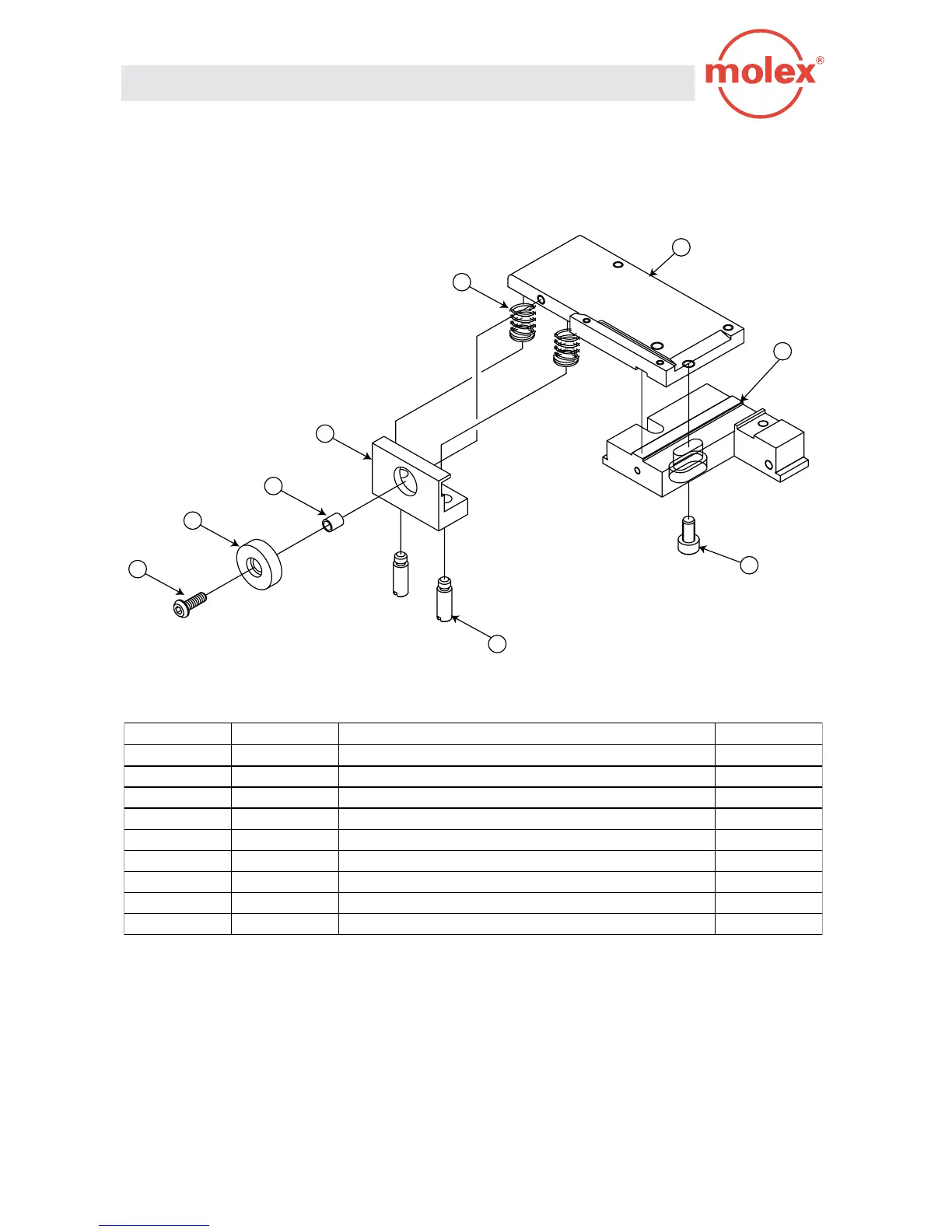

T2 TERMINATOR ASSEMBLY
Fig. 15
