• Raise front arm extension lock handle all the way up to unlocked position, extend
arm to position awning at desired height and lower lock handle to lock arms in
place. Drive stakes through bottom holes in arm.
• To move awning out of carport position reverse above steps.
Securing Awning for T
ravel
Before travel, check the following:
• Awning is fully retracted to side of motorhome.
• Black locking knobs are tightened.
• Storage locks are down in locked position.
• Brake control is in full down (locked) position and no red warning is showing.
• Bottom of front and rear arms are latched properly into bottom brackets.
• Catch rod is stored away.

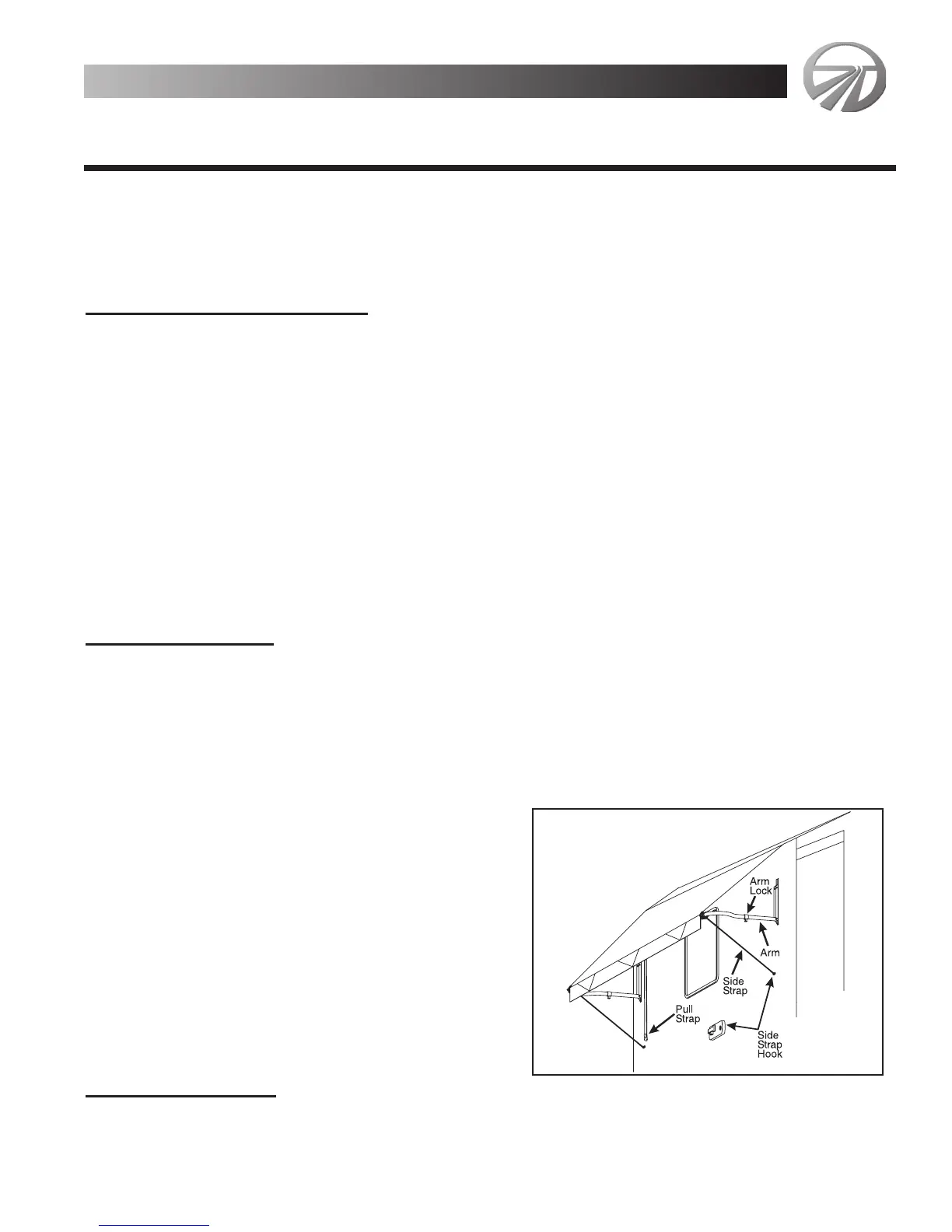

Slide-Out Awning
To Extend
Awning
Slide-out room must extend equally at both ends so that awning fabric will be taut
when room is fully extended.
• Move slide-out room all the way out.
• Find pull rod.
• Using pull rod push arm locks (one on each end arm) up all the way
to the unlocked position.
• Hook pull rod end into pull strap of
awning and pull awning and arms
out all the way.
• Hook end of side strap loops (one on
each end of awning) on to side strap
hooks on slide-out room.
• Slowly release awning.
• Pull strap to one side, remove pull rod
and store strap.
• Store pull rod.
T
o Retract Awning
Monarch 3-19
Appliances & Equipment
