12V DC System
Two 6-volt batteries are located in the first compartment behind the curbside rear
wheels. Positive battery lead is routed to an insulator post in the generator compartment
(generator start motor/HWH pump), then to a 12V DC distribution panel on firewall.

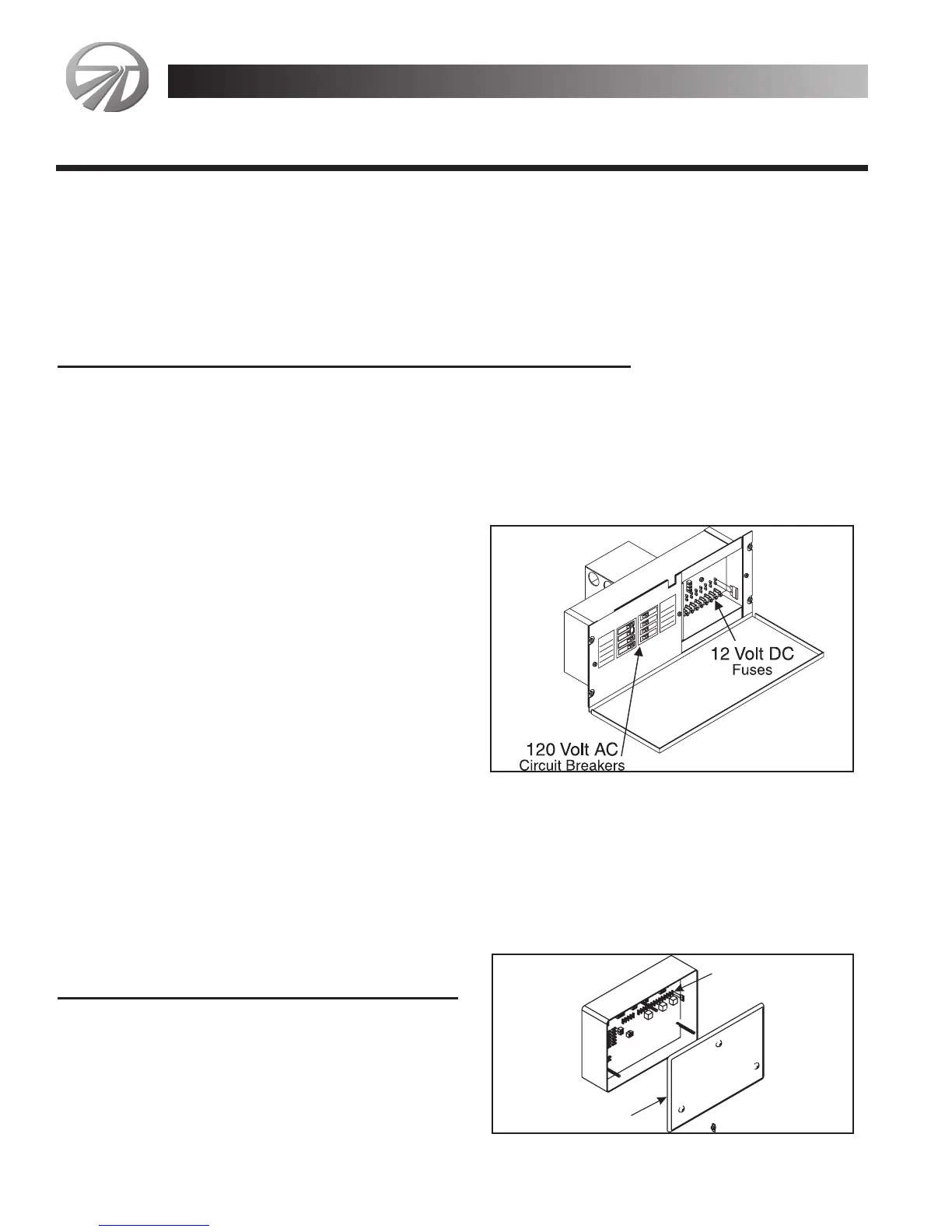

Inside motorhome Distribution Panel Circuit and Fuses
Fuse assignments are listed on a fuse label attached to the inside cover of the dis-
tribution panel. When replacing fuses, always replace with same size as listed for a par-
ticular location. Fuse sizes shown are maximum fuse sizes allowable. Installing fuse
sizes other than those listed can cause electrical wiring to become overloaded and create
hazardous situations.
Fuse assignments are as follows:
1. Bath Lights/Vent - 15 amp Fuse
2. Dinette/Porch/Rt. Overhead - 15 amp Fuse
3. Bedroom/ODS Lights - 15 amp Fuse
4. Kitchen/Left Overhead, Stove Vent,
Opt. Vent - 15 amp Fuse
5. Ceiling Lights - 15 amp Fuse
6. Furnace - 15 amp Fuse
7. Monitor Panel - 15 amp Fuse
8. Slide-out - 15 amp Fuse
9. Radio - 5 amp Fuse
Circuit Breaker assignments are as follows:
Left Side: Right Side:
• 50 AMP MAIN • Converter, Bedroom, TV, Dining Room
• Front Air Conditioner • Bathroom, Kitchen, Refrigerator, TV, VCR
• Rear Air Conditioner • Water Heater
• Microwave
Outside motorhome Distribution Panel
The distribution panel (12V DC) is
located inside a roadside compartment. Fuse
assignments are listed on a fuse label
attached to the inside cover of the front distri-
bution panel. When replacing fuses, always
Monarch
6-6
Electrical Systems
Electrical Systems
MONACO
2000
