4.2.4 FM radio
1
4
2
3

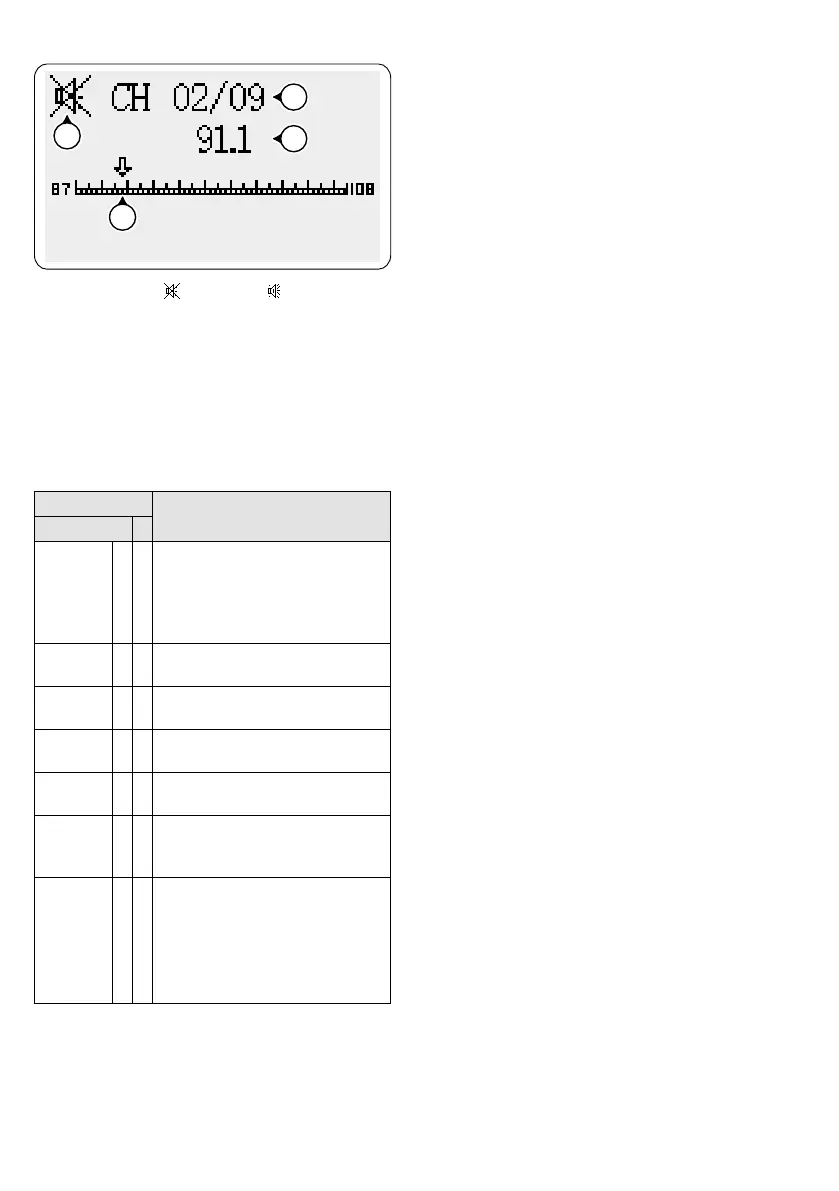

1 Sound muted / unmuted
2 Storage location currently used / number of
storage locations
3 Frequency in MHz
4 Frequency scale with current position
All stations can be automatically scanned and
stored. However, it is also possible to directly
select the frequency of a station and to store it.
Stored stations can be deleted.
Remote control 
Function
Module 
RPT/SCAN
SCN (U/SD)
×
×
to start automatic station scan
All stations found will be automati-
cally stored.
At the module, keep the button
pressed until automatic scan starts.
PRE / NEXT
I /  I
×
×
previous / next storage location
0, 1… 9 ×
to enter the frequency
example: 911 for 91.1MHz
FOLDER
EQ
×
×
to reduce the frequency by 100 kHz
RPT × ×
press the button briefly to increase
the frequency by 100 kHz
I /  I
×
keep the button pressed to scan the
next / previous station that can be
received; the station will be stored
PLAY
II
×
×
press the button briefly to store a
station
press the button for 2seconds to
delete a station stored
press the button for 5seconds to
delete all storage locations
5 Specifications
Amplifier
Amplifier class: � � � � � � � � � � � D, mono
Power rating: � � � � � � � � � � � � 60 W
THD: � � � � � � � � � � � � � � � � � � < 0�5 %
Frequency range: � � � � � � � � � 60 Hz – 15 kHz
Inputs (sensitivity / impedance; connection)
CH 1: � � � � � � � � � � � � � � � � � � 4�5 mV/ 600 Ω ; XLR bal�
CH 2, CH 3
Microphone level: � � � � � � � 4�5 mV/ 600 Ω ;
6�3 mm jack, unbal�
Line level: � � � � � � � � � � � � 120 mV/10 k Ω ;
6�3 mm jack, unbal�
CH 4, CH 5: � � � � � � � � � � � � � � 60 mV/ 10 k Ω ;
RCA (L / R), unbal�
TEL INPUT: � � � � � � � � � � � � � � 90 mV/ 600 Ω ; screw
terminals, unbal�
S / N ratio
Microphone inputs: � � � � � � � � 72 dB
Line inputs: � � � � � � � � � � � � � � 85 dB
Phantom power supply for CH 1: ⎓ 48 V, switchable
Outputs
Speakers: � � � � � � � � � � � � � � � 4 / 8 /16 Ω , 70 / 100 V;
screw terminals
RCA jacks REC OUT: � � � � � � � mixed signal with
linelevel
MOH OUTPUT: � � � � � � � � � � � mixed signal with line
level; screw terminals
Bluetooth version: � � � � � � � � � � � 4�2
Power supply
Mains: � � � � � � � � � � � � � � � � � 230 V/ 50 Hz
Power consumption: � � � � � 160 VA
DC voltage: � � � � � � � � � � � � � � 24 V
Current consumption: � � � � 4�2 A
Ambient temperature: � � � � � � � � 0 – 40 °C
Dimensions (W × H × D): � � � � � 320 × 95 × 245 mm
Weight: � � � � � � � � � � � � � � � � � � � 4�5 kg
5.1 Conformity and approval
Herewith, MONACOR INTERNATIONAL declare that
the product PA-806DAP complies with the directive
2014 / 53 / EU� The EU declaration of conformity is availa-
ble on the Internet:
www�monacor�com
The product is generally approved for operation in EU
and EFTA countries; it is licence-free and requires no
registration�
Subject to technical modification.
All rights reserved by MONACOR
®
INTERNATIONAL GmbH & Co. KG.
No part of this instruction manual may be reproduced in any form or by any means for any commercial use.
