Monacor PA-900DT User Manual

2
ELECTRONICS FOR SPECIALISTS ELECTRONICS FOR SPECIALISTS ELECTRONICS FOR SPECIALISTS ELECTRONICS FOR SPECIALISTS
COM
SPEAKER
OUTPUT
4Ω 70V 100V
100 V
COM
SPEAKER
OUTPUT
4Ω 70V 100V
4 Ω
COM
SPEAKER
OUTPUT
4Ω 70V 100V
4 Ω
COM
SPEAKER
OUTPUT
4Ω 70V 100V
4 Ω
COM
SPEAKER
OUTPUT
4Ω 70V 100V
70 V
+
-
100 V
+
-
100 V
+
-
100 V
+
-
+
-
+
-
. . .
+
-
+
-
+
-
+
-
70 V
+
-
70 V
+
-
70 V
+
-
. . .
4 Ω
30 W RMS
8 Ω
60 W RMS
4 Ω
120 W RMS
8 Ω
60 W RMS
4 Ω
30 W RMS
4 Ω
30 W RMS
max. Belastung
max. load
120 W RMS
max. Belastung
max. load
120 W RMS
4 Ω
30 W RMS

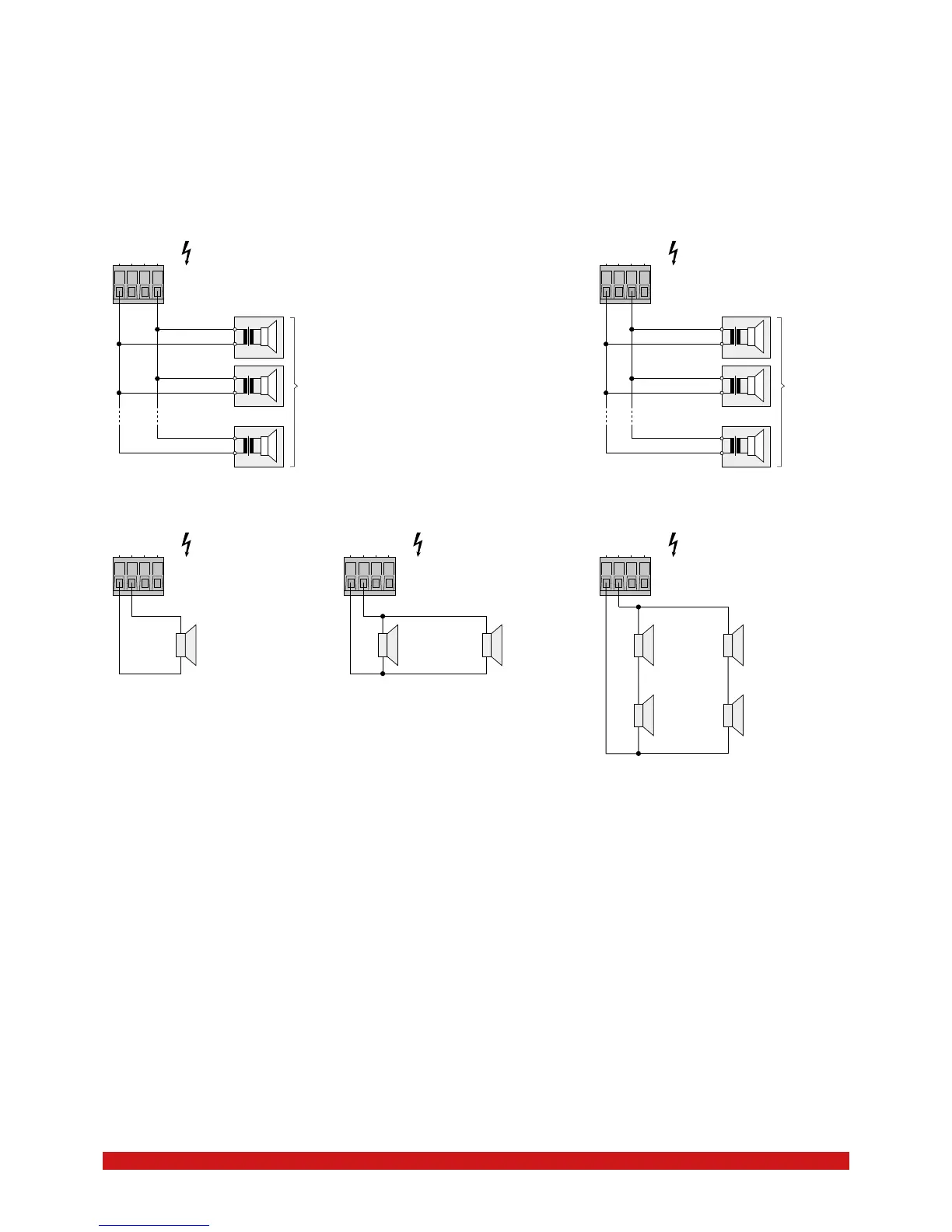

Beispiele für den Anschluss der Lautsprecher
Examples of Speaker Connections
➀
➂ ➃
➁
➄

Monacor PA-900DT Specifications

General

Brand	Monacor
Model	PA-900DT
Category	Amplifier
Language	English
