DFS Series Vent Free Fireplace
16
71D0532

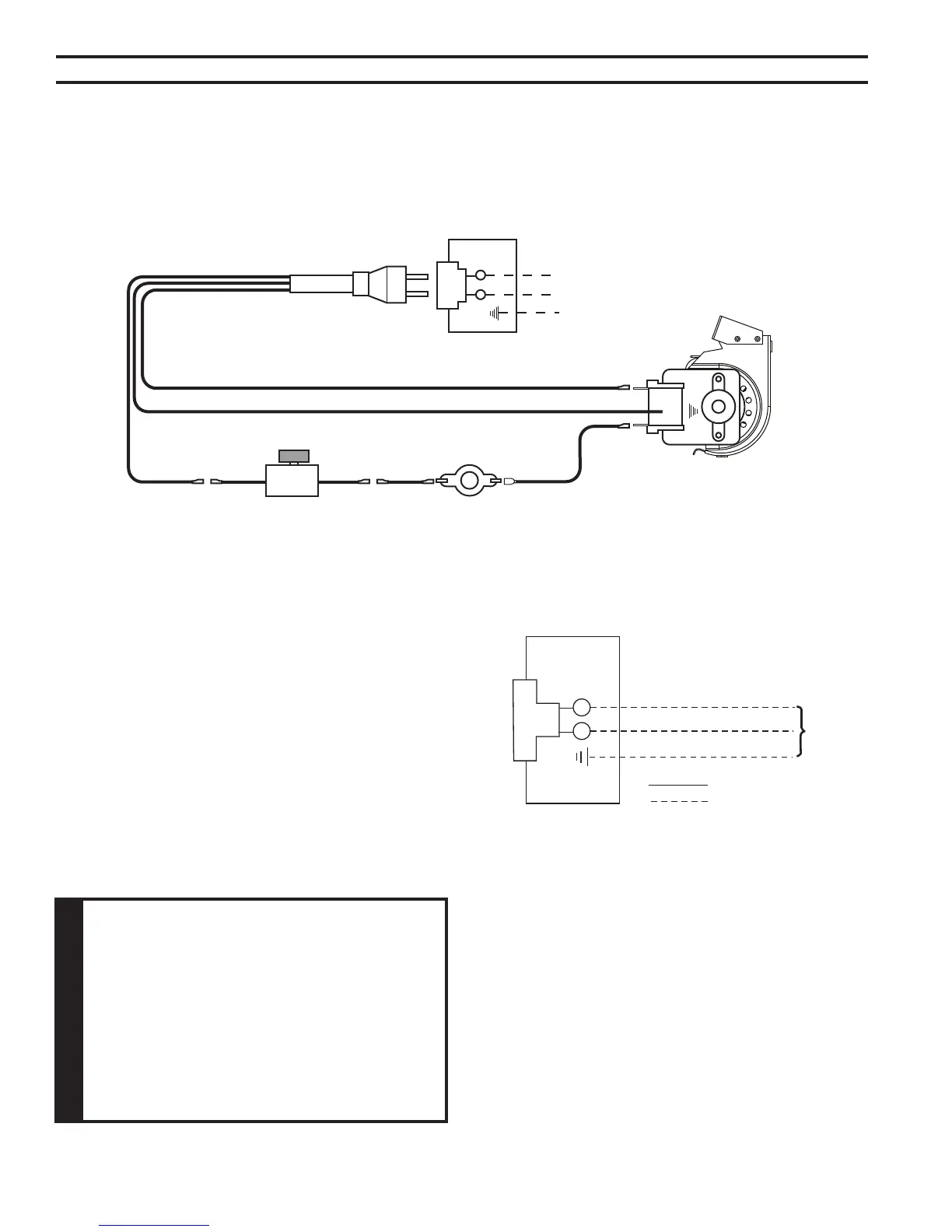

If you are installing the forced air blower kit, refer to the installation instructions provided with
the kit. The rebox must be connected to main power supply at time of rebox installation. The
electrical connections must be made before the rebox is framed and enclosed in the nished
walls.
BLACKBLACKWHITE
GREEN
BLACK
BLACKWHITE
Receptacle
Junction
Box
120VAC
Speed Control
FP2675
BLOT blower wiring
FP2675
1. This should be done before framing the replace. Wire
the receptacle into an electrical circuit. Wire with mini-
mum 60° C wire in accordance with prevailing codes.
2. Remove the external junction box cover by removing
the screw from the side of the outside rebox wall.
Junction box was installed at the factory.
3. The junction box cover has a factory installed “romex”
style strain relief connector. After connecting the wires,
route the wire leads through this connector. Refer to
the wiring diagram in Figure 16.
FP1912
Junction box wiring
8/08
Junction Box
Factory Supplied
Not Supplied
120V AC
60Hz
To Next Page
