DFS Series Vent Free Fireplace
71D0532 9
The clearance from the
inside of the appliance to any combustible adjacent wall
should no be less than 9". Figure 4
The ceiling must be at least 42" from
the top of the rebox opening. Figure 4
The appliance may be placed
against a combustible back wall.
This replace may be installed directly
onto a combustible oor or raised on a platform of appro-
priate height. Do not install the replace directly onto any
soft ooring material such as carpeting, vinyl tile or other
combustible material other than wood ooring, unless there
is a sheet metal panel (.030” minimum thickness) or at
wood, plywood or particle board panel (1/2” minimum thick-
ness) extending the full width and depth of the enclosure.
Be sure rebox rests on a solid continuous oor or platform
with appropriate framing for support.

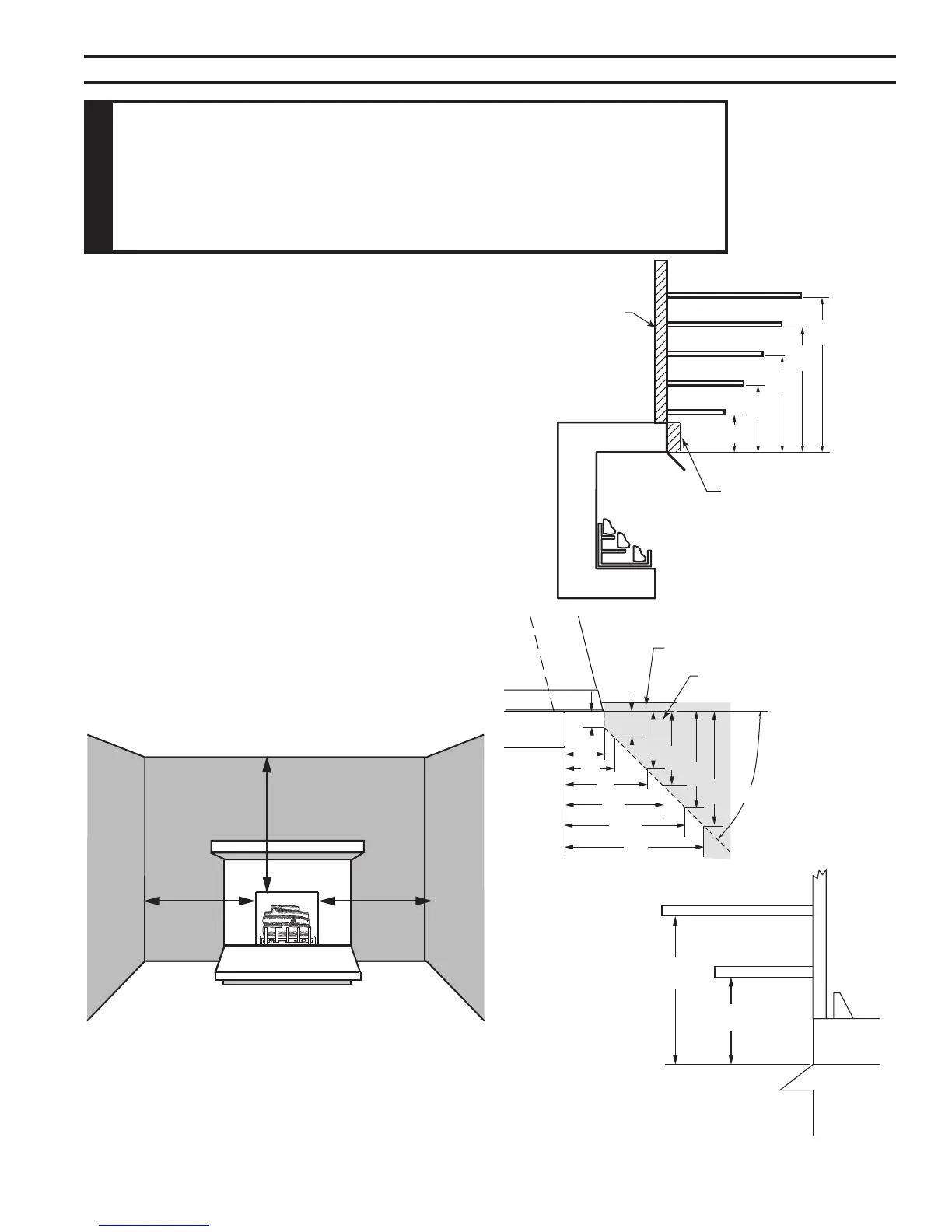

The canopy supplied with the unit
must be installed. If a combustible mantel is installed. It
must meet the clearance requirements shown in Figures
5 & 6.
9"
Minimum
9"
Minimum
42" Minimum
FP2441
sidewall clg clear
FP2441
256O”
6”
8”
10”
12”
12”
16”
19”
21”
23”
FP2442
mantel clearances
Combustible mate-
rial can contact top
of replace
Noncombustible material
only if needed to cover
optional radiant top
panel above canopy
FP2442
12”
8”
8”
14”
FP2443
mantel clear wide hood
Refer to Page 35)
FP2444
45°
1”
256O”
3”
5”
6”
56O”
56O”
56O”
FP2692
mantel leg clearance
6”
756O”
756O”
9”
Finish Wall
Combustible Material
Area
