DFS Series Vent Free Fireplace
30
71D0532

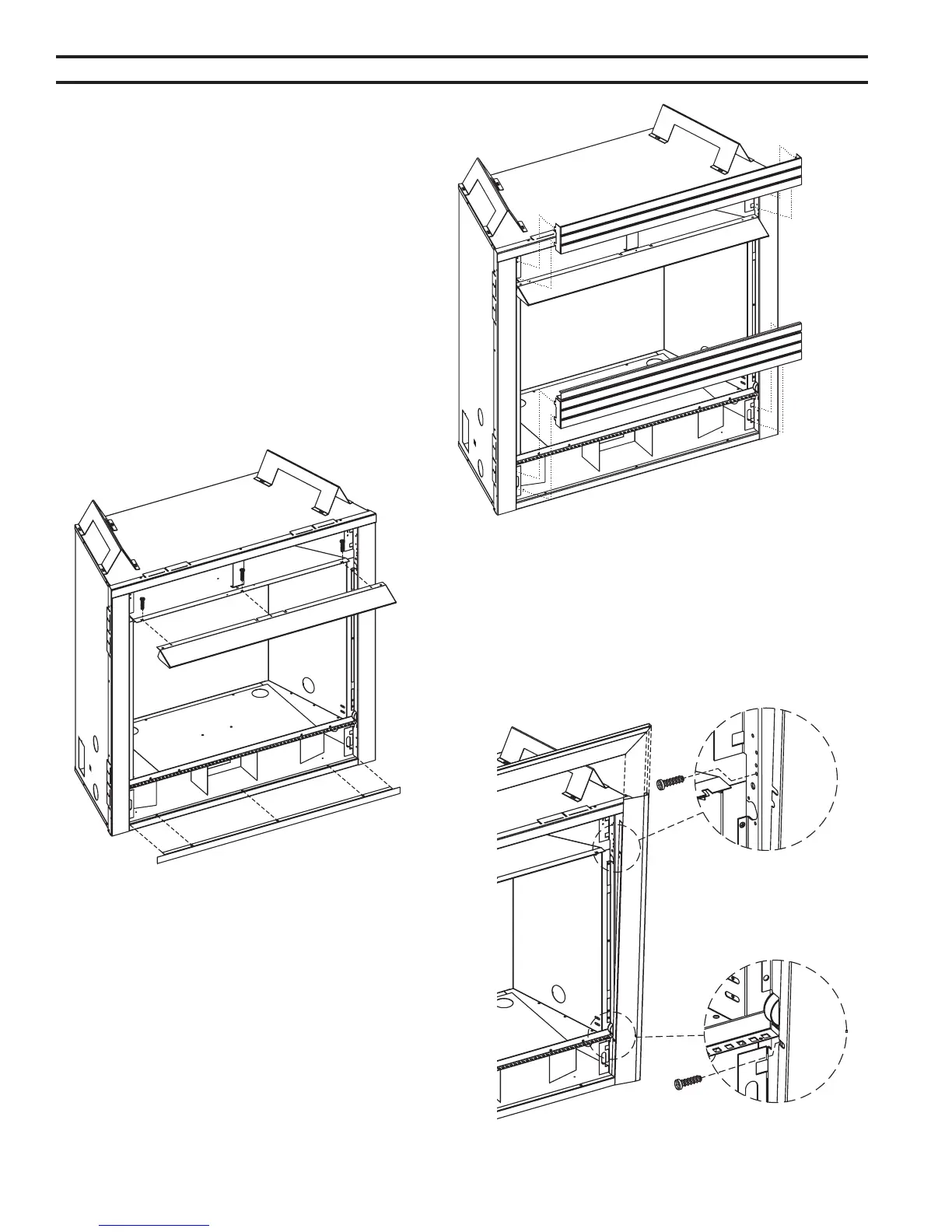

1. Remove top and bottom louver assemblies by
disengaging hooks. Pull assemblies up and away
from unit. Figure 28
FP2454
2. Remove canopy by removing screws and pulling canopy
away from unit. Figure 29
3. Set bottom trim kit piece in place on bottom of face.
Bottom piece will be held in place by the side pieces.
Figure 29
FP2455
FP2456
4. Loosely install four supplied screws into left and right
sides of unit face. Leave approximately 1/8th in. of
screw shaft protruding from unit in each location.
Figure 30
