Wiring your speakers

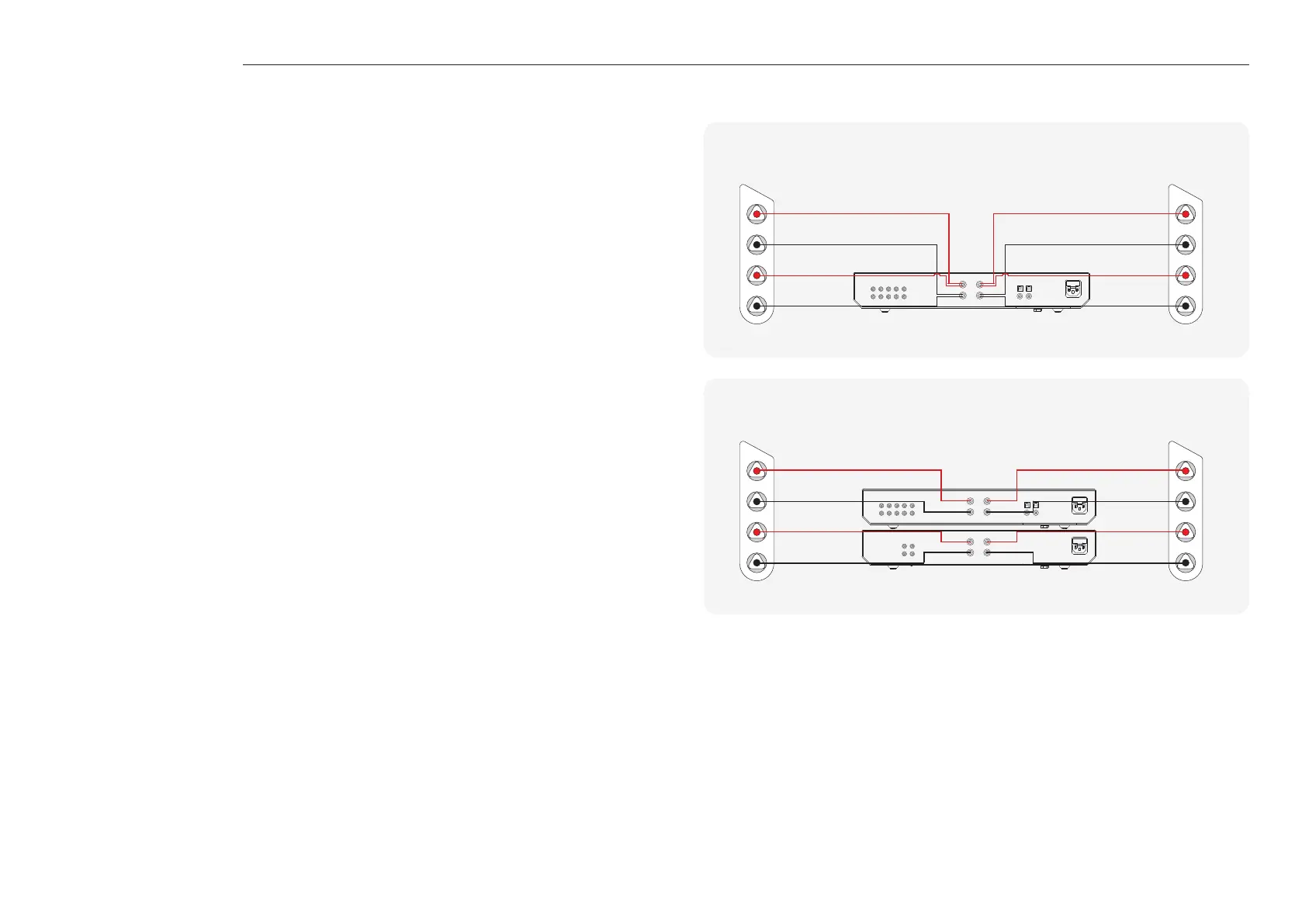

Bi-wiring
Bi-wiring is accomplished by connecting separate pairs of loudspeaker cables to the terminals
on the loudspeaker from a single pair of connections on the ampliier. In the case of Hyphn, the
bottom terminals connect to the bass driver(s) and the top terminals connect to the mid and
tweeter.
Bi-amping
Bi-amping is the same as bi-wiring, except you are introducing a second ampliier into the
equation.
In order to bi-amp, you must connect a set of loudspeaker cables to the top terminals on the
loudspeaker from one ampliier and another set of loudspeaker cables to the bottom terminals
from the second ampliier.
RightIntergrated Amplifier
+
-
+
-
Left
RightIntergrated Amplifier
+
-
+
-
Left
RightPower Amplifier
+
-
+
-
Left
