Monitor Audio PL - Connecting Cables and Placing Speaker; Tightening Fixing Screws

Platinum In Wall
5
6

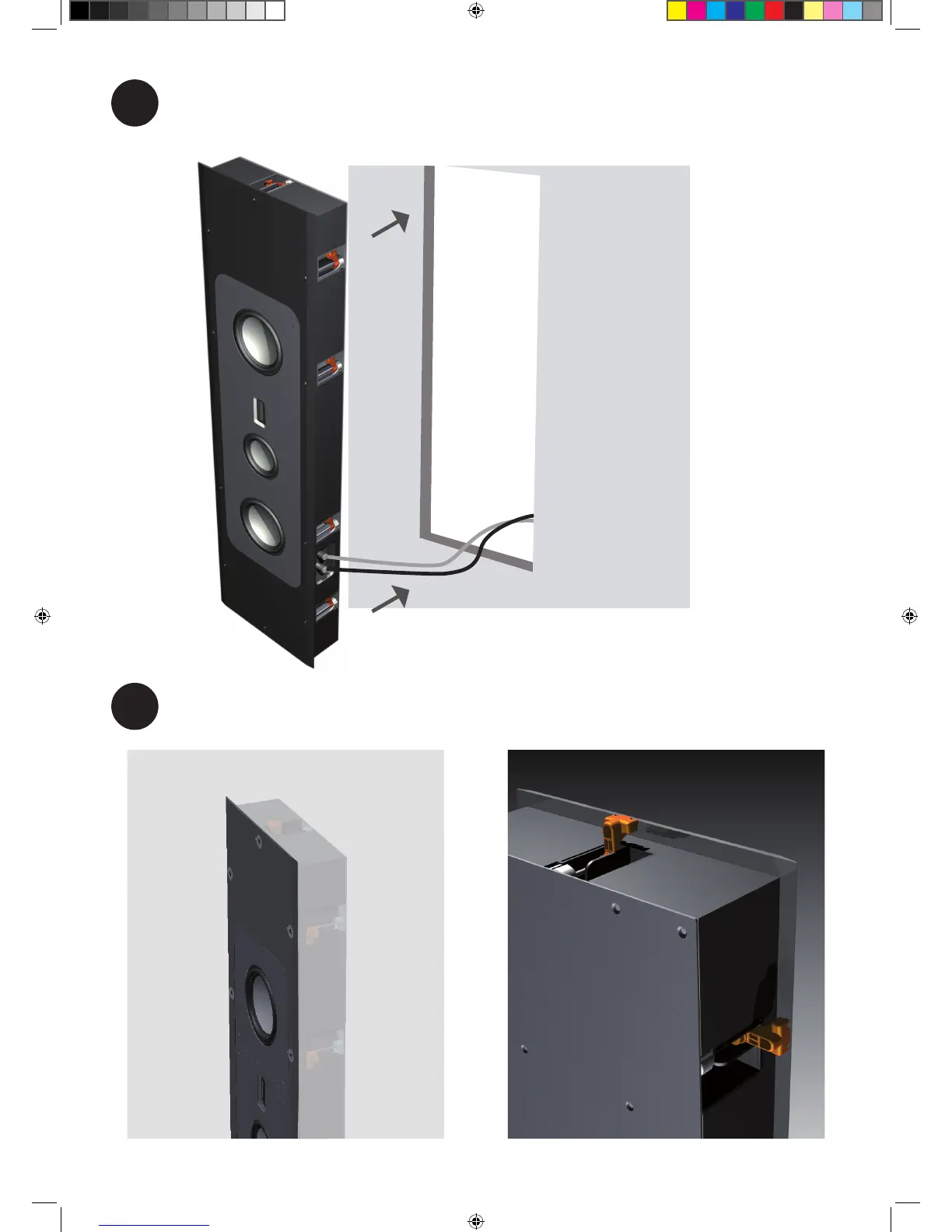

Connect the speaker cables and place the PL In Wall into
the wall cut-out.
Tighten all of the dog leg fixing screws.
There are 10 fixing screws to tighten. The images below illustrate the position of the dog leg
fixings once deployed, viewed from behind the wall.
