Monogram ZIF36N RH - Side Panel or Filler Options

11
Custom Panel Dimensions
36" Refrigerators, Freezers
CUSTOM PANEL
DIMENSIONS
1/4" Side Panels
Insert end of
side panel into trim.
Standard 4" high toekick or trim to fit.
Height may vary depending on application.
1/2" to 3/4" Side Panels
Recessed front edge.
Standard 4" high toekick or trim to fit.
Height may vary depending on application.
1/2" to 3/4" Side Panels
Leading Edge
Flush with Cabinet
Front. The front or
leading edge must be
finished to match
cabinetry.
Standard 4" high toekick or trim to fit.
Height may vary depending on application.

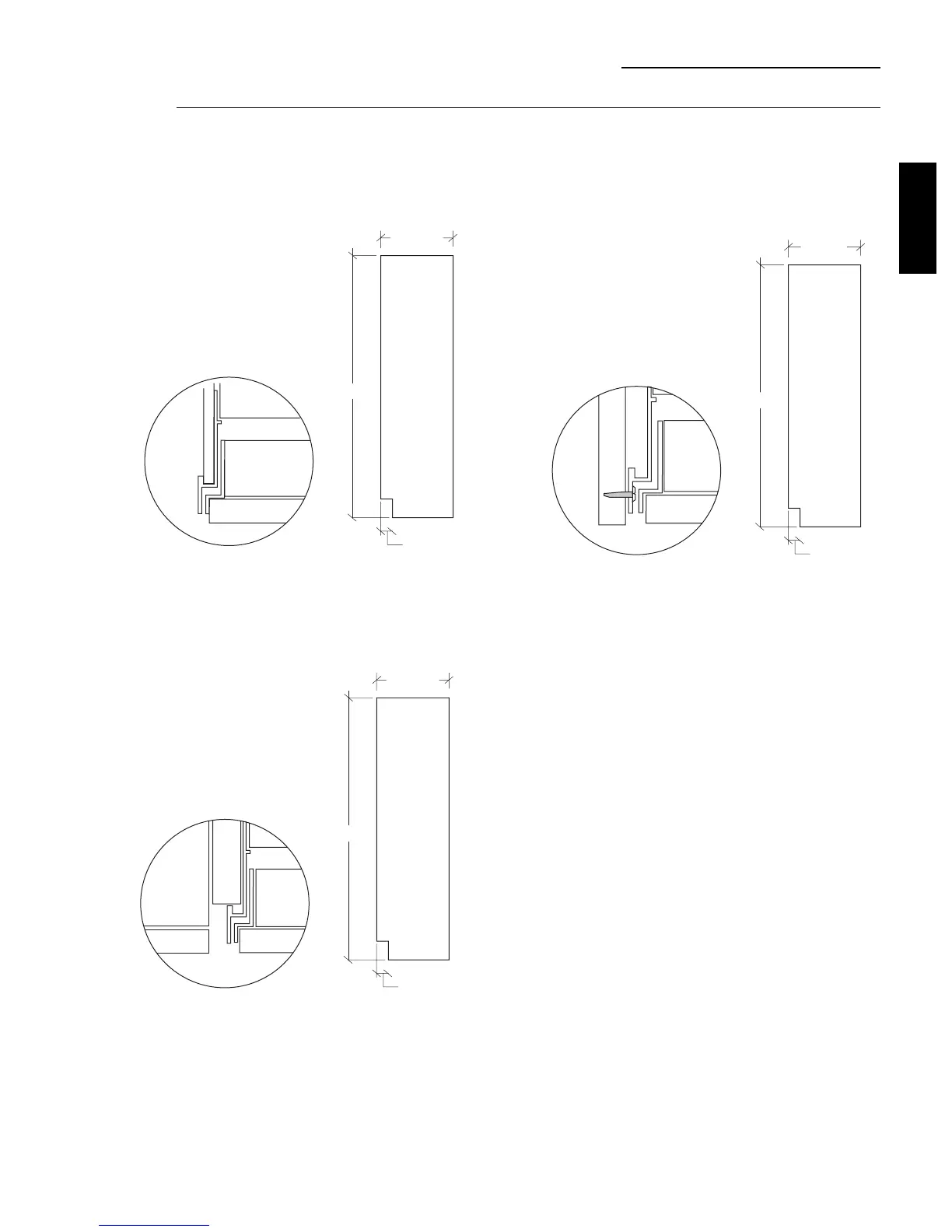

Side Panel or Filler Options
(Not to scale)
Side panels must be used whenever the sides of the
refrigerator or freezer will be exposed.
23 9/16"
84"
2 9/16"
Trim
24 3/4"
84"
3 3/4"
23 5/16"
84"
2 5/16"
Top View
Top View
Top View
