Installation
36" Refrigerators, Freezers

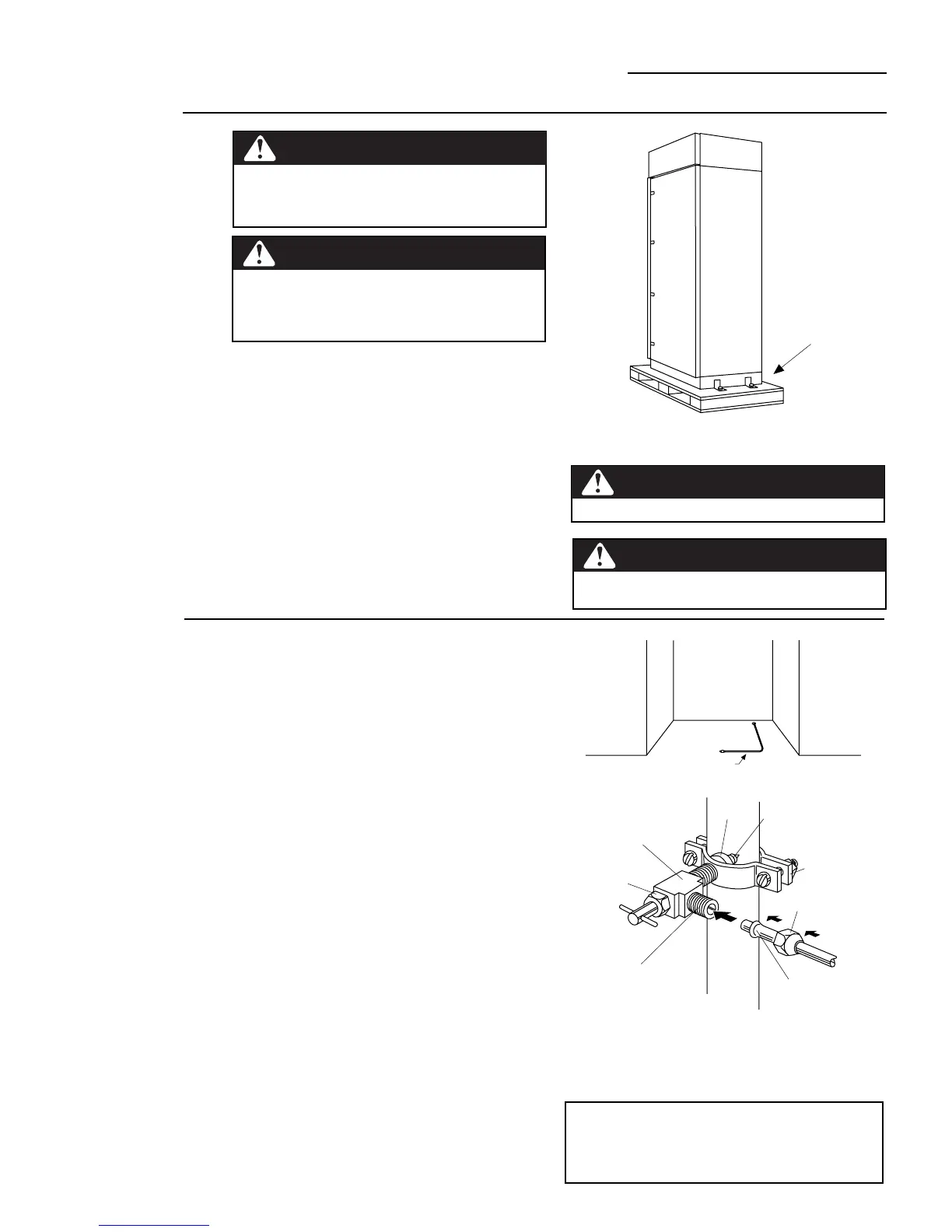

• Remove outer carton.
– Carefully cut banding at the top and bottom.
• Slide out back corner posts (2).
• Slide carton off top of cabinet.
NOTE: IT IS NOT NECESSARY TO LAY CABINET DOWN
IN ORDER TO REMOVE SKID!
• The unit is secured to the skid with 4 slotted tie-down
straps. First remove the 5/16" bolts from the base
channels in the tie-downs, then remove the 7/16" bolts
securing the straps to the skid.
• Protect the flooring. Cut a large piece of the card-
board carton and place under the product.
• Support blocks on the bottom must be removed before
sliding unit off skid. Remove support blocks by
carefully tilting cabinet to side and sliding out.
Step 1
Remove
Packaging
Step 2
Install
Water Line
• Install optional water filter in the water line near the
refrigerator. A water filter is recommended in areas
where water supply contains sand or particles.
Installation instructions are packed with the filter.
• A cold water supply is required for automatic icemaker
operation. The water pressure must be between 20 and
120 p.s.i.
• Route 1/4" OD copper tubing between house cold
water line and the water connection location.
• Copper tubing should be long enough to extend to the
front of the refrigerator. Allow enough to accommodate
bend leading into the water valve.
Shut off the main water supply.
Turn on the nearest faucet long enough to clear the line
of water.
• Install a shut-off valve between the icemaker water
valve and cold water pipe in a basement or cabinet.
The shut-off valve should be located where it will be
easily accessible.
NOTE:
It is best to install the valve into a vertical water
pipe. If installed into a horizontal water pipe, make the
connection at the top or side, rather than at the bottom,
to avoid drawing off any sediment from the water pipe.
• Drill a 1/4" hole in the water pipe.
• Fasten the shut-off valve to the pipe with pipe clamp.
• Tighten the clamp screws until the sealing washer
begins to swell. Do not over tighten.
• Place a compression nut and ferrule (sleeve) onto the
end of the tubing and connect it to the shut-off valve.
Make sure the tubing is fully inserted into the valve
and ferrule is tightened.
• Turn on the main water supply and flush debris from
the line. Run about a quart of water through the tubing
into a bucket. Shut off water at the shut-off valve.
NOTE: Saddle type shut-off valves are included in many
water supply kits. Before purchasing, make sure a
saddle type valve complies with local plumbing codes.
CAUTION
Refrigerator and freezer is much heavier at the top
than at the bottom – be careful when moving. When
using a hand truck, handle from side only.
PRUDENCE
Le réfrigérateur est beaucoup plus lourd en haut
qu'en bas. Il faut être prudent lors des
déplacements. Si un diable est utilisé, il faut
soulever le réfrigérateur sur le côté seulement.
CAUTION
DO NOT ATTEMPT TO ROLL UNIT OFF SKID.
PRUDENCE
IL NE FAUT PAS ESSAYER DE FAIRE ROULER LE
RÉFRIGÉRATEUR POUR L'ENLEVER DE LAY PALETTE.
Floor
Copper Tubing
Saddle Type
Shutoff Valve
Compression Nut
Ferrule
(Sleeve)
Outlet Valve
Packing Nut
Inlet End
Pipe Clamp
Washer
7/16" Bolt
NOTE: Commonwealth of Massachusetts Plumbing
Codes 248CMR shall be adhered to. Saddle valves
are illegal and use is not permitted in Massachusetts.
Consult with your licensed plumber.
