Design Information
36" Refrigerators, Freezers
Installation

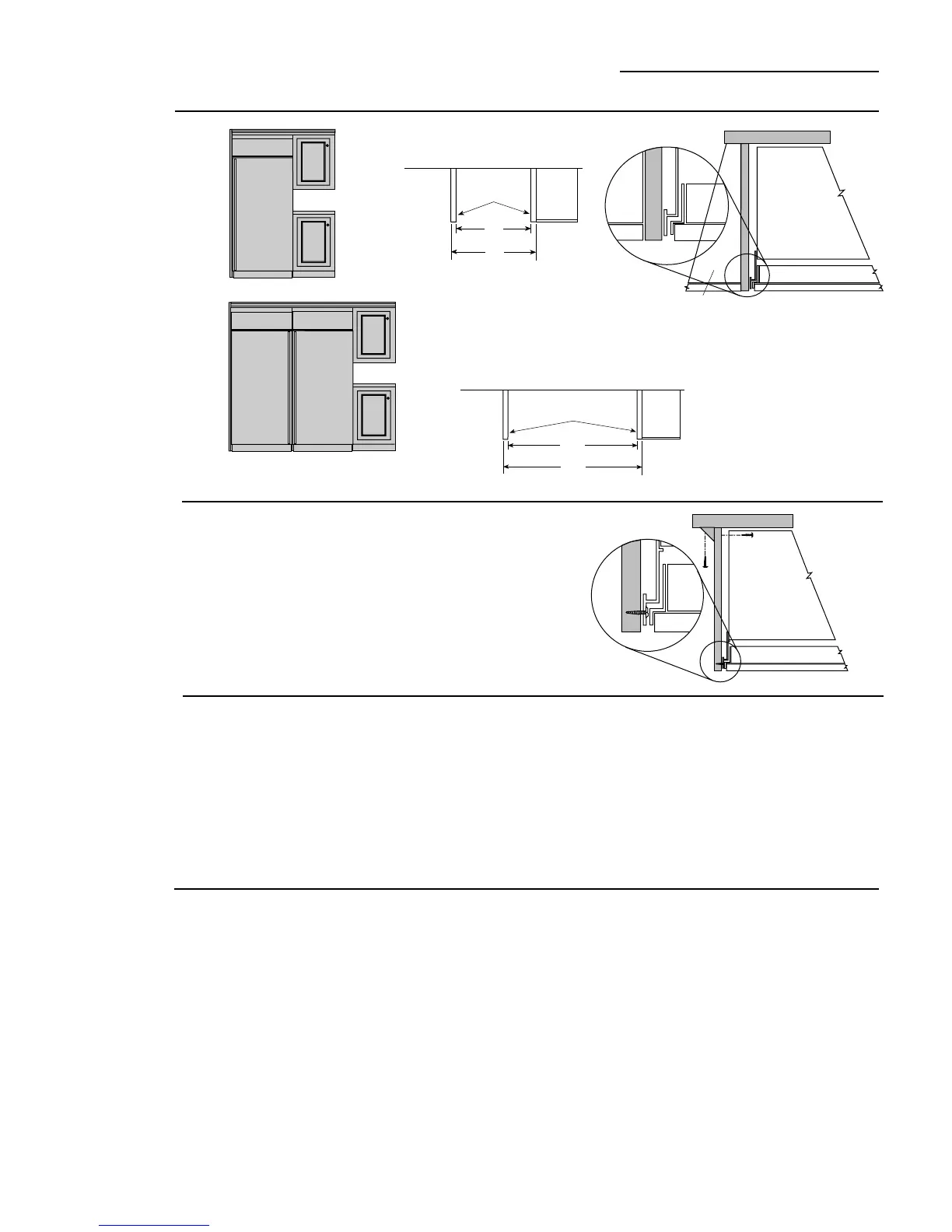

At End-of-Run
Frameless
Cabinets
Note: 1/2" thick side panels shown.
Side panels can be any thickness.
Add side panel thickness to
outside trim width, (36” or 72" for
two models) to calculate the
rough-in dimension. The leading
(front) edge must be finished to
match surrounding cabinetry.
Side panels, 1/2" minimum thickness are required
when using frameless cabinets. The side panel
acts as a spacer between the cabinet and the
case trim and prevents interference with cabinet
door swing. The leading (front) edge must be
finished to match surrounding cabinetry.
1/2" To 3/4" Side Panels. Leading
Edge Flush With Cabinet
Accessory
Panel Kits
These refrigerators and freezers require field installed
door and grille panels.The factory installed trim will
accept accessory panel kits. White or black Lexan
®
and
stainless steel kits are available. Panels are cut to size
and ready to install. These panel kits must be ordered
separately.
ZWBR36, Black Lexan
®
Panels
ZWWR36, White Lexan
®
Panels
ZWSR36, Stainless Steel Panels
A wide range of custom appearance options can be
created with optional trim kits. See page 6 for examples
and trim kit descriptions.
Refrigerator or Freezer
Refrigerator and Freezer
installed side-by-side
These refrigerators and freezers are designed to be
customized with decorator door and grille panels. Field
installed custom door and grille panels are required for
these models.
Factory installed trim will accommodate 1/4" thick
custom panels, Lexan
®
or stainless steel panel kits.
Door and grille panel sizes vary to accommodate the kit
being used. Sizes are provided in this booklet.
Caution: Maximum door panel weight is 50 pounds.
Side panels must be used whenever the sides of the
refrigerator will be exposed. Side panel sizes vary
depending on the installation.
Advance
planning
exterior
appearance
options
3/4" thick custom panels-Without trim kits
A raised panel design, screwed or glued to a 1/4" thick
backing can be used. See page 8 for panel sizes and
clearances.
You should:
1. Select the appearance option.
2. Order the trim kit for that option.
3. Order the custom door and grille panels from the
cabinet manufacturer. The exact dimension for each
trim kit application is provided in this booklet. Find
and pull out the page for your application and fax or
send it to the cabinet manufacturer. The cabinet
manufacturer must have this information to con-
struct the panels accurately.
4. Determine the final installation situation and order
matching side panels.
Cabinet
Refrigerator
Cabinet
Refrigerator door
73"
1/2" Thick
Side Panels
72"
Finished Dim.
Rough-In Dim.
Refrigerator
Cabinet
Refrigerator door
37"
1/2" Thick
Side Panels
36"
Finished Dim.
Roughed-In Dim.
