Design Information
36" Refrigerators, Freezers
DESIGN
INFORMATION
For a complete food storage center, install a Monogram
Freezer and Refrigerator side by side. Order ZUG75
Unified Grille Panel Kit for one continuous 3/4" panel.
Order ZFC1 Trim Kit to cover the inside trim and/or gap
between the two products.
• The electrical and water locations must be located as
shown for either type of installation. A separate 115V,
60Hz. 20 amp power supply is recommended for each
product.
Installation
Between
Base &
Wall Cabinets
Note: 1/4" thick side panels can be
inserted into the case trim, making the
rough-in the same as the outside trim
width, 36”.
*72" min. for a flush installation
71-1/2" min. for a semi-flush installation
Note: Additional cutout width may be required when side
panels are used. Add side panel thickness to the finished
cutout to calculate rough-in width. See installation examples
below.
Side panels are required whenever the sides of the
product will be exposed.
1/2" to 3/4" side panels are normally set into place and
fastened to adjacent cabinetry or to the back wall
before rolling the refrigerator or freezer into the
opening.
Therefore, the rough-in dimensions must allow for side
panel thickness. In both a flush and semi-flush
installation, the finished dimension, (the width of the
opening after side panels are installed), must accom-
modate the full width of the product.
See page 11 for side panel sizes.

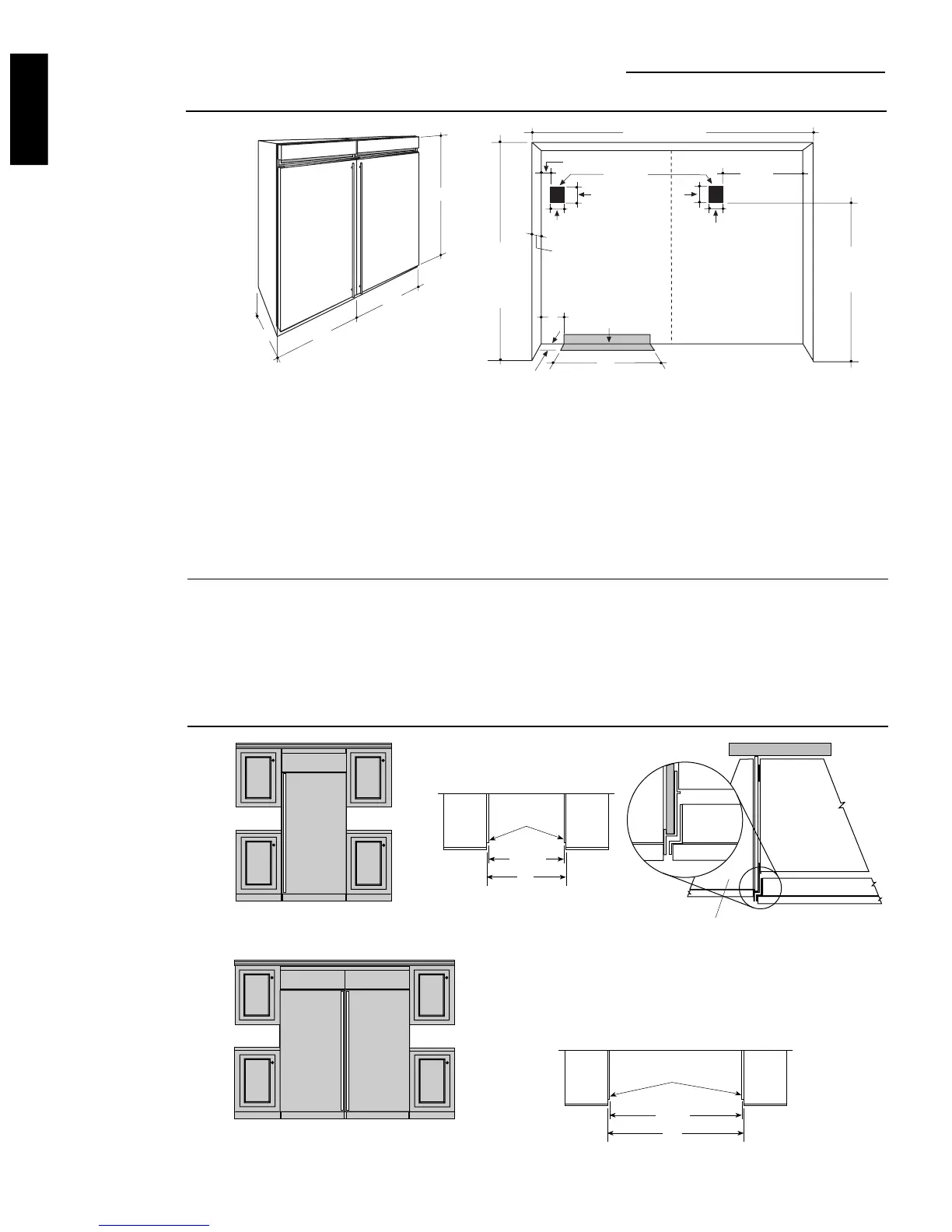

Side By Side
Installation
Of Freezer
And Refrigerator
Installation
Examples
Refrigerator or Freezer
Refrigerator and Freezer
installed side-by-side
1/4" Thick
Side Panels
35-1/2"
Finished Dim.
36"
Rough-In Dim.
Cabinet
Refrigerator door
Refrigerator
Cabinet
36"
84"
24-3/4"
36"
1/4" Thick
Side Panels
71 1/2"
Finished Dim.
72"
Rough-In Dim.
*Shipped at 84"
Installation Height.
Order ZFC1 Trim Kit or ZUG75 Unified Grille Panel Kit for side by side installation.
2 1/2"
74" From Floor
to Bottom
of Electrical
84 1/2" max
83 1/2" min
Finished
Opening
*Finished Width
Electrical
5"
5"
3 1/2"
24 3/4" Total
Depth
Water Supply
Wall View
7"
5"
7"
28 1/2"
26"
Freezer Refrigerator
