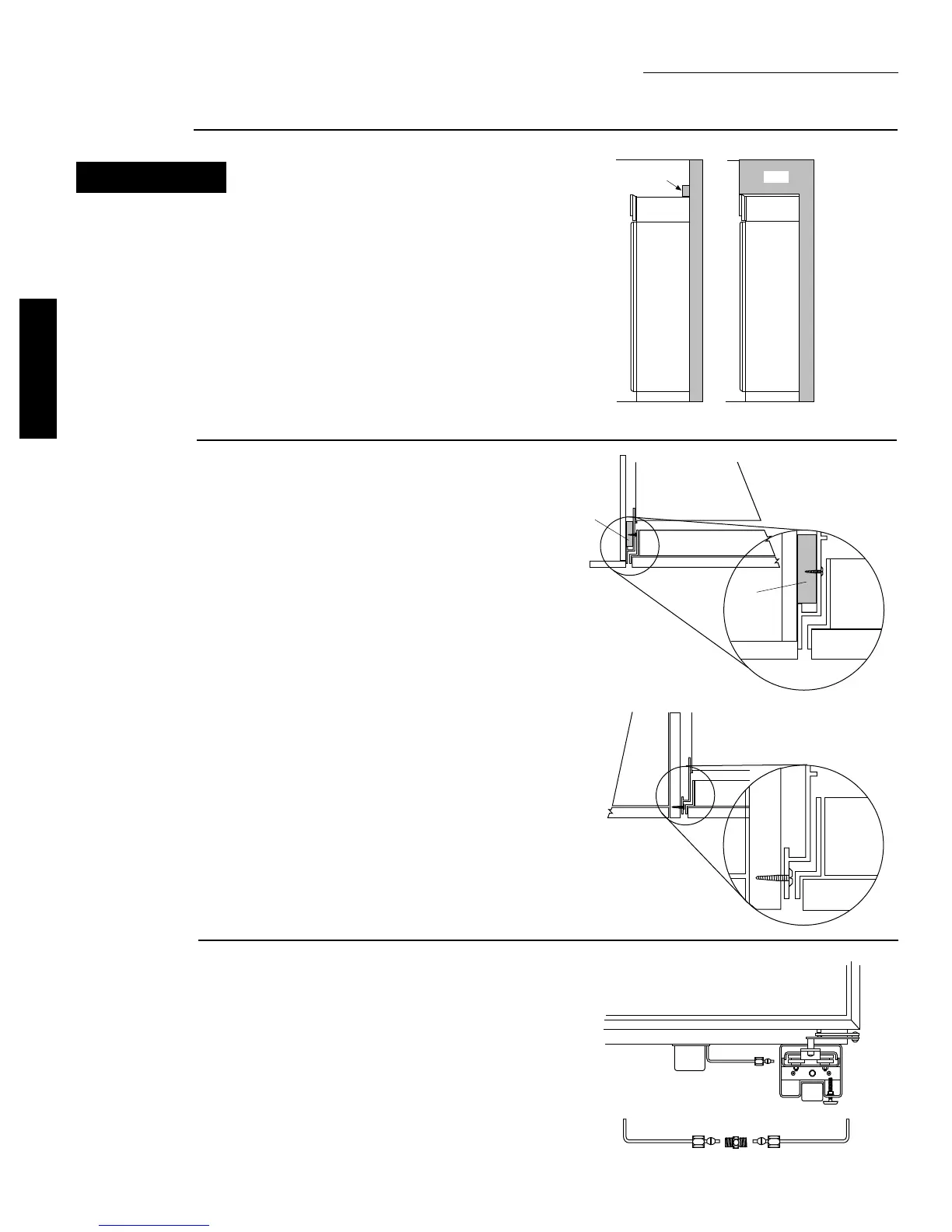

Installation
42" Built-In Refrigerator
18
PRODUCT
INSTALLATION
Personal Injury/Property Damage Hazard
The refrigerator is much heavier at the top. To prevent
the refrigerator from tipping over you must:
• Install a wood block, the full width of the refrigerator.
Secure the block with wood screws penetrating at
least 3/4" into wall studs.
Block
Soffit
Side View
Side View
When using 1/2" to 3/4" side panels, the front flange of
the case trim is attached to the side panel.
• Open freezer door to access case trim.
• Drill hole in flange and drive screw through the
flange, into the side panel.
• Follow the same procedure for fresh food side.
Refrigerator Cabinet
Refrigerator door
Stud
Spacer
block
If refrigerator is installed between cabinets with no
side panels or in a custom enclosure, install a spacer
block as shown.
• Open freezer door to access case trim.
• Drill hole in trim and drive screw through the trim and
into the spacer block.
• Follow the same procedure for fresh food side.
OR
Top View
Top View
• Locate and bring copper tubing to front of cabinet.
• Turn water on to flush debris from line, run about a
quart of water through tubing into a bucket, then shut
off water.
• Slip a 1/4-1/4 union nut (provided) over both ends of
the copper tubing at the right front leg of the
refrigerator and couple the lines.
• Turn on water to check for leaks.
WARNING
Anti-tip
precautions
Step 8
Secure
refrigerator
case trim
to side panel
Step 9
Connect
water
supply
To Next Page
