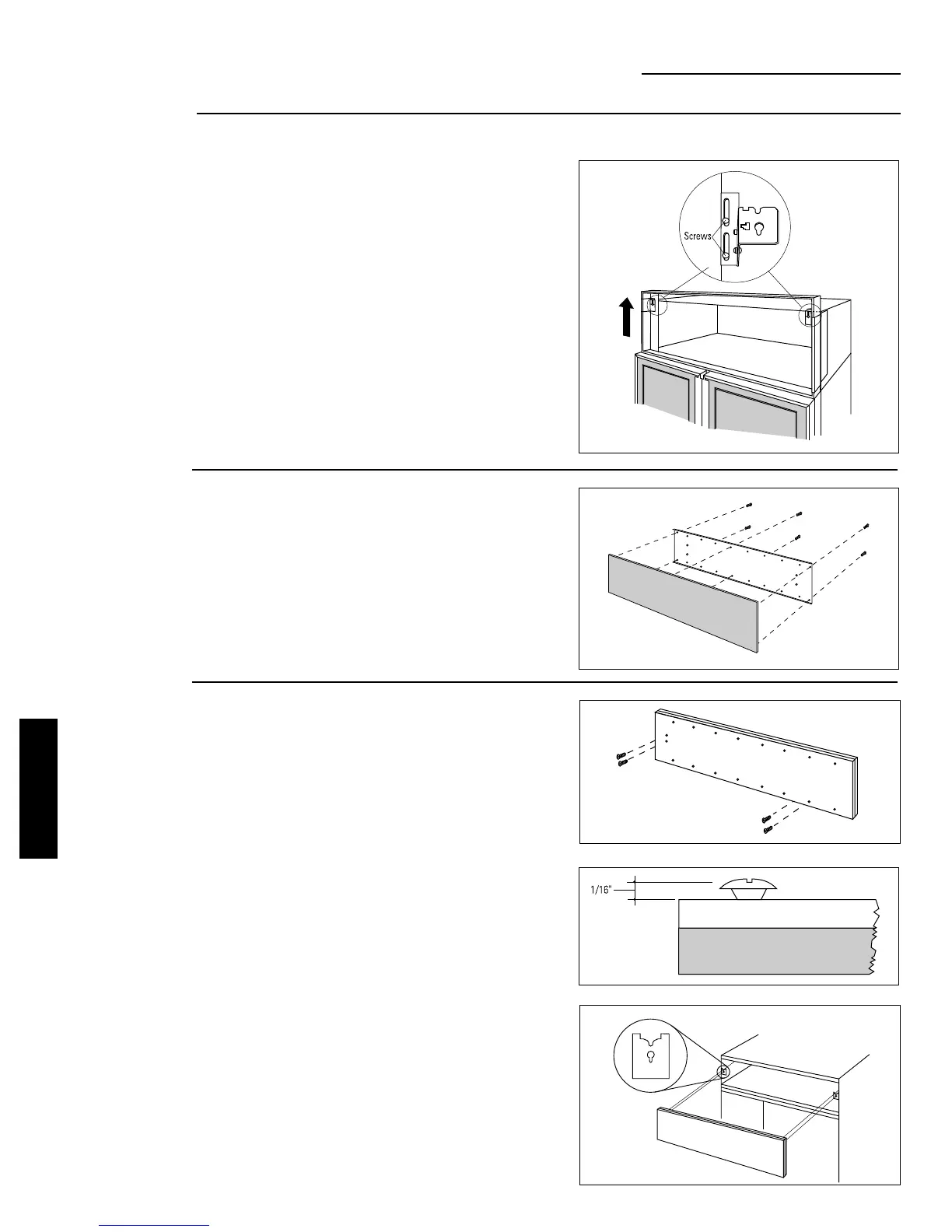

The refrigerator is shipped with the top case trim
secured at the 83" refrigerator height.
• Loosen 2 screws on both sides and raise the case
trim to meet soffit height, from 83" to 84-1/2".
• Tighten all 4 screws.
Grille panel mounting slots attached to the case trim
are set for a 84" soffit height. The height of the
decorative panel can vary with soffit or installation
height. See grille panel sizes for your model in “Custom
Panel Dimensions”.
• Secure the new grille panel support to the back side
of the 3/4" panel with #6 screws.
Important:
Maintain 1-1/2" min. gap between top of doors and
bottom of grille panel.
Step 6
Secure 3/4"
panel to
grille panel
support
Step 5
Adjust
grille panel
height
ZKT42 Trim Kit
3/4" Custom Panels
Option 1 Installation
• Attach the assembled panel to the grille frame by
inserting the four protruding screws into brackets
located on each side of the grille frame.
• Install four of the six larger under cut screws such
that the top of the screws are 1/16" from the surface of
the support.
Back View
Grille Panel Support
Step 7
Install
grille panel
30
ZKT42 INSTALLATION
INSTRUCTIONS
