Strip the cable for 20 mm of length
and strip each wire for 8 mm of
length. We suggest to use a power
cable with at least 3 x 1,00 mm
2
section wires (the insert terminals can
however support a cable with wires
up to a section of 4 mm
2
/12AWG).
Insert the power cable into the
bushing and into the chuck
(white chuck for a cable diameter
of 5 ÷ 11 mm; black chuck for a cable
diameter of 9.50 ÷ 15 mm).
Insert the wires into the terminals
and fasten the clamping device by
a at screw driver.
The wire ends can be clamped in
or soldered to the terminal, always
paying attention to the symbols
shown on the connector:
L (Live - corresponding to the
brown wire),
N (Neutral - corresponding to the
light blue wire) and
(Ground - corresponding to the
yellow and green wire).
After connecting the wires to the
insert, lead the cable through the
housing and screw down the bushing.
The connector shown in the preceding example is a POWERCON
®
model
NAC3FCA, blue, similar to the one tted to the mains power cable supplied
with the product.
It ts the blue AC LINE IN (1) socket.
It is not compatible with the grey AC LOOP OUT (2) socket.
DO NOT FORCE THE WRONG PLUG TO FIT THE WRONG SOCKET !!!!!
In case you must assemble a cable to be connected to the AC LOOP OUT
socket, use a grey model NAC3FCB POWERCON
®
plug.

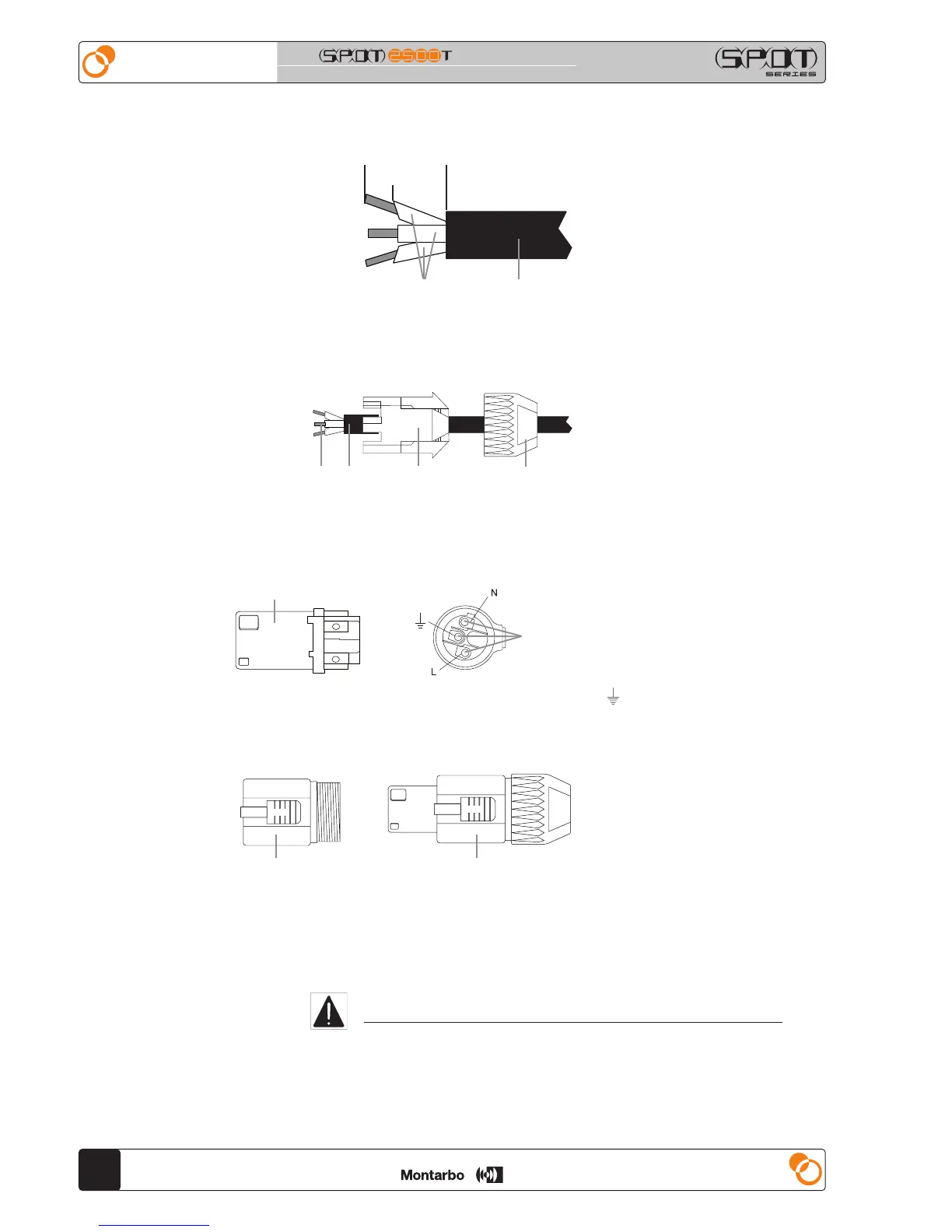

3.2.1 - Wiring of PowerCon
®
connector
p o w e r c o n
®
c o n n e c t o r
h o u s i n g
c a b l e
w i r e s
20 mm
8 mm
b u s h i n gc h u c k
c a b l e
w i r e s
s e t s c r e w s
i n s i d e
v i e w
