PROFESSIONAL LOUDSPEAKER SYSTEM PROFESSIONAL LOUDSPEAKER SYSTEM
16
PROFESSIONAL LOUDSPEAKER SYSTEM PROFESSIONAL LOUDSPEAKER SYSTEM
3
2
1
3
2
1
1
2
3
1
2
3
3
2
1
3
2
1
1
2
3
1
2
3
3
2
1
tip ring sleeve
(GND)
tip
ring
sleeve
(GND)
1
2
3
3
2
1
tip sleeve
(GND)
tip
sleeve
(GND)
1
2
3
user's manual
ENGLISH

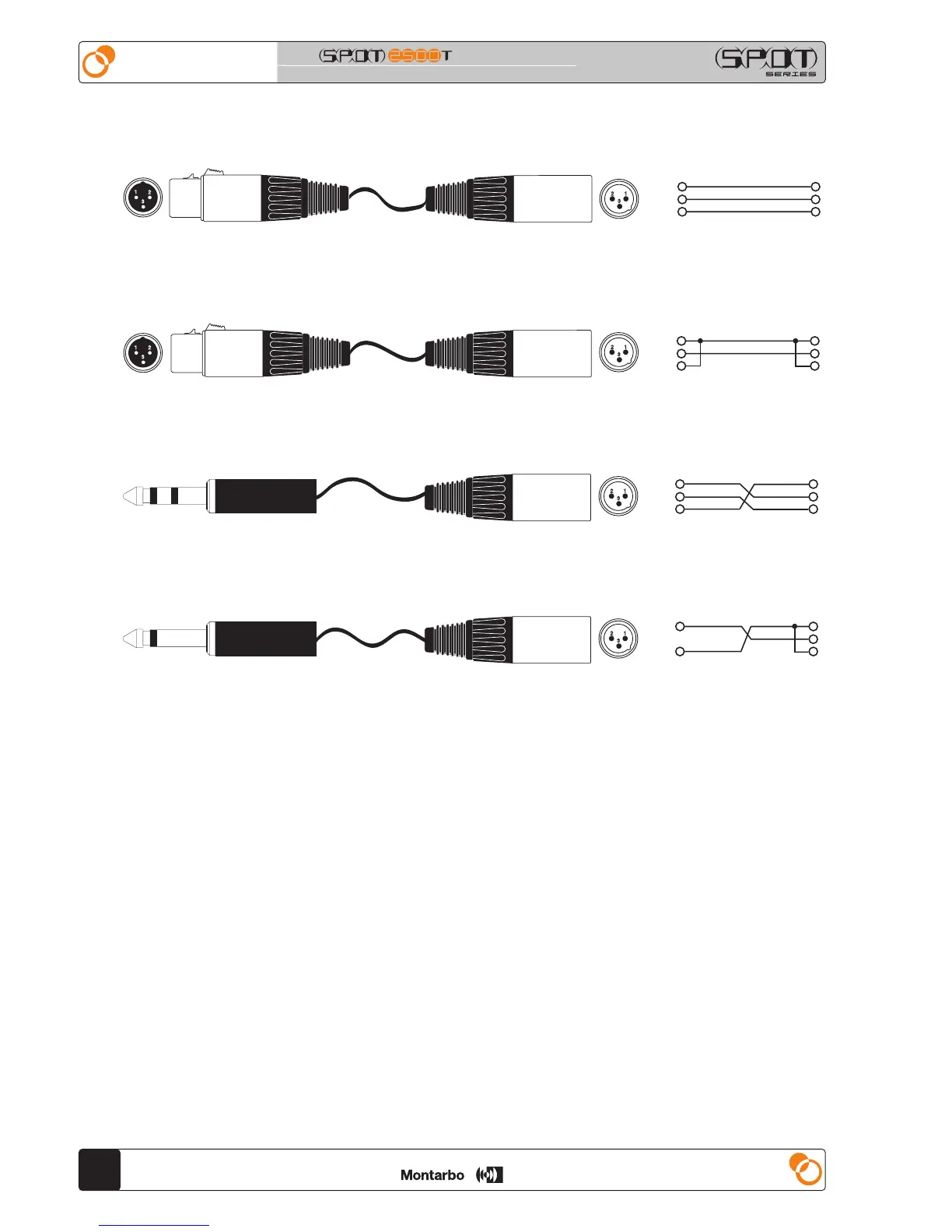

• If the mixer has XLR balanced outputs: use standard balanced XLR
connectors.
• If the mixer has XLR unbalanced outputs: in this case, unless using
a Montarbo mixer, make sure that the XLR outputs on the mixer are
unbalanced to IEC 268 standard 1 = GND, 2 = HOT, 3 = GND.
• If the mixer has JACK balanced outputs (stereo jacks):
it is possible to use stereo jack-XLR adapters, wired according to IEC 268
pin 1 = ground (sleeve), pin 2 = tip, pin 3 = ring.
• If the mixer has JACK unbalanced outputs (mono jacks):
use suitable Jack-XLR male adapters unbalanced according to IEC 268
pin 1 = ground, pin 2 = tip, pin 3 = ground.
• Connection to a sub-woofer:
- If it has a balanced input: use a balanced XLR cable like the one of the
rst example.
- If it has an unbalanced input (with a female XLR connector): use a cable
like the one in the second example.
- If it as an balanced input (with a stereo jack): use a cable wired like the
one in the third example, but with a female XLR connector.
- If it has an unbalanced input (with a mono jack): use a cable wired like
the one in the fourth example, but with a female XLR connector.
3.3.2 - Wiring of SPEAKON
®
connectors
To connect the full-range cabinet SPOT2500T to the bass cabinet SPOT15B
use the cable supplied with the system.
If longer cables are needed, they may be assembled using good quality
unshielded cable (speaker cable) of sufficient copper section (gauge), at
least 4 x 1,5 mm
2
.
The plugs are wired as follows:
Pin 1 +: positive LF – Pin 1 -: negative LF
Pin 2 +: positive HF – Pin 2 -: negative HF.
