ENGLISH
user's manual
2 - SYSTEM'S COMPONENTS
SPOT2500T is a 'quasi 3-way' active tri-amplied speaker system composed
of two modules: a full-range cabinet and a bass cabinet.
- The full-range cabinet SPOT2500T incorporates all the electronics needed
to process and power the whole system: three class-D amplifiers (with
switching power supplies) that can supply a total of 2500 Watts EIAJ
managed by the Montarbo DSP.
The system is equipped with:
- two 15” woofers, one of which is enclosed in the passive bass module.
Both feature a 4” voce coil and a powerful, shielded, neodymium
magnet. The magnet is front-mounted, allowing for improved cooling
under power-intensive conditions;
- one HF driver with a 1.4” throat and 3” voice coil, featuring a neodymium
magnet and titanium diaphragm, loaded by a high directivity wave-guide
horn. The horn has a very low cut-off frequency, resulting in improved
far-field intelligibility.

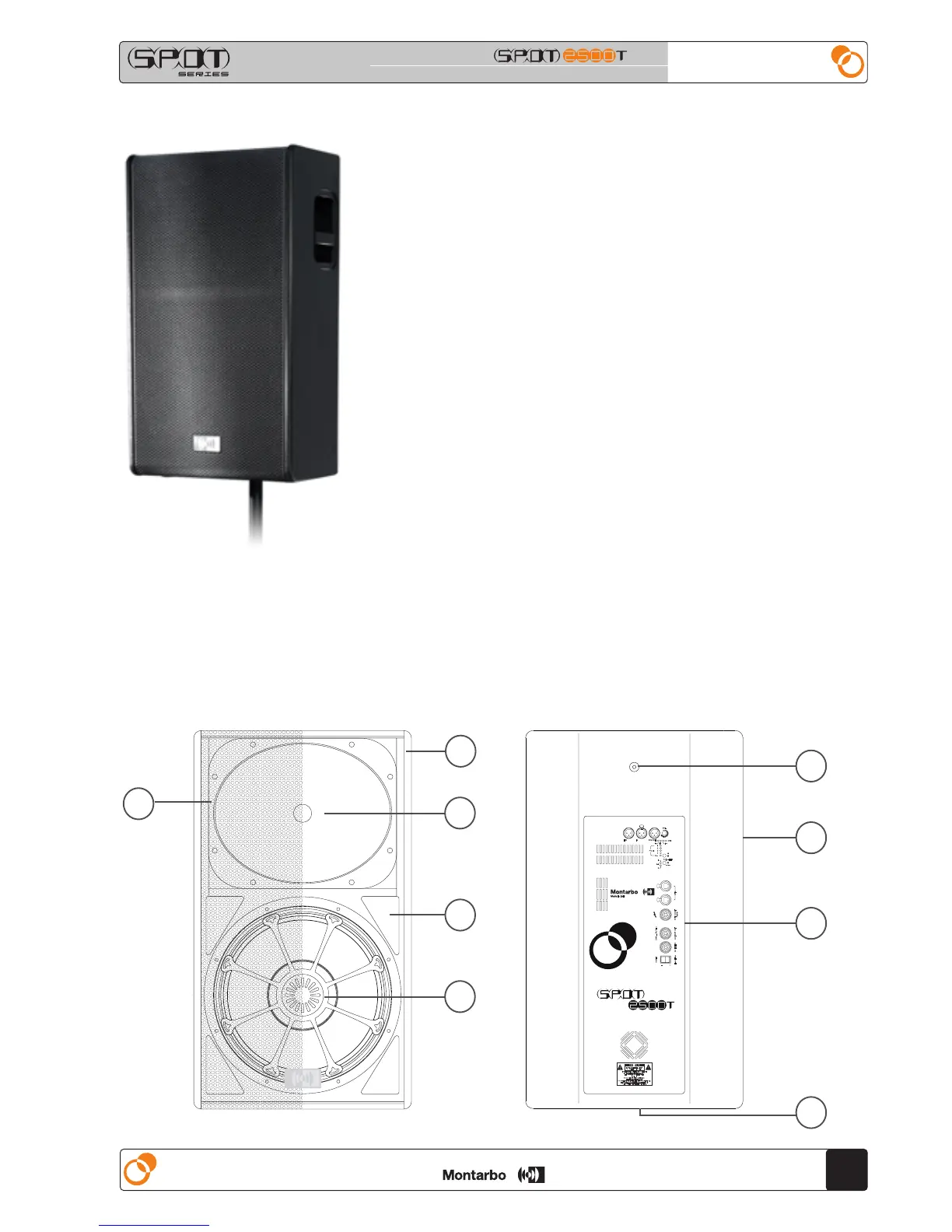

2.1 - SPOT2500T - full-range active cabinet
a - 1 x 15” woofer , with a 4” voce coil and a powerful, shielded,
neodymium, front-mounted, magnet
.
b -
one HF driver with a 1.4” throat and 3” voice coil, featuring a
neodymium magnet and titanium diaphragm, loaded by a high
directivity (50°H x 40°V) wave-guide horn
.
c - Cabinet made from birch plywood, with high-impact, chip-resistant paint.
d - Steel protection grill with foam protection.
e -
Bass reex vents .
f - Carrying handles.
g -
Controls and connections panel .
h - Speaker-stand adapter.
i - M10 threaded inserts.
