ENGLISH
user's manual
3.4 - PARALLEL CONNECTION OF MULTIPLE SYSTEMS

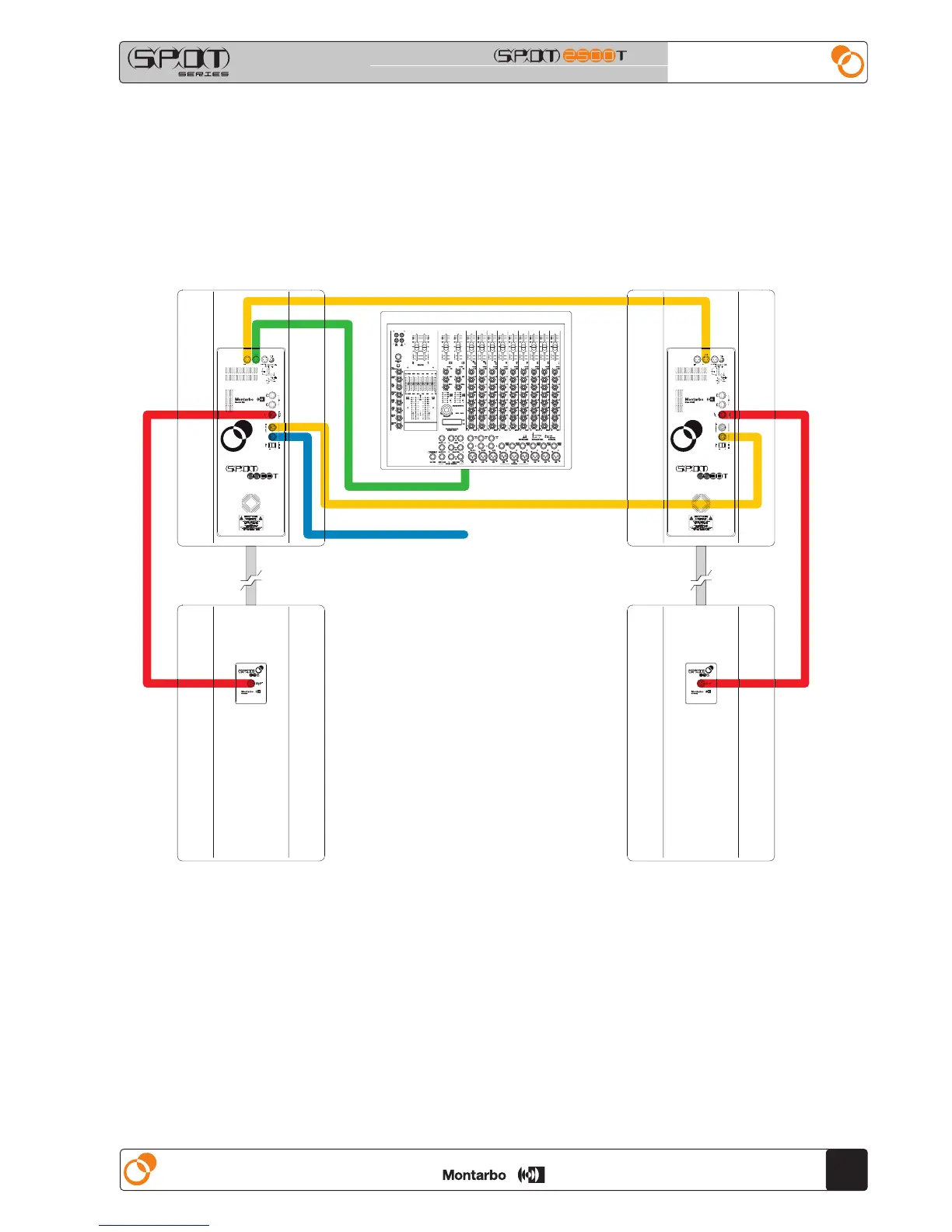

Connect the LINK output to the IN input of the other system, as shown in
the following image.
If you need to supply ac power to the second system, using the rst
system's AC LOOP OUT socket, use a suitable cable, at least 3 x 1,0 mm
2
,
terminated with a POWERCON
®
NAC3FCB, gray, on one side, and a
POWERCON
®
NAC3FCA, blue, on the other.
The possibility of adjusting the emission delay (refer to par. 5.3.2) make
for a successful installation of multiple systems, because it allows for the
time alignment of their acoustic emissions.
