Monuments Edge Series - Heater Sensor Installation; Sensor Positioning Guidelines

37
EN
20 cm
Fig. 11
Fig. 10

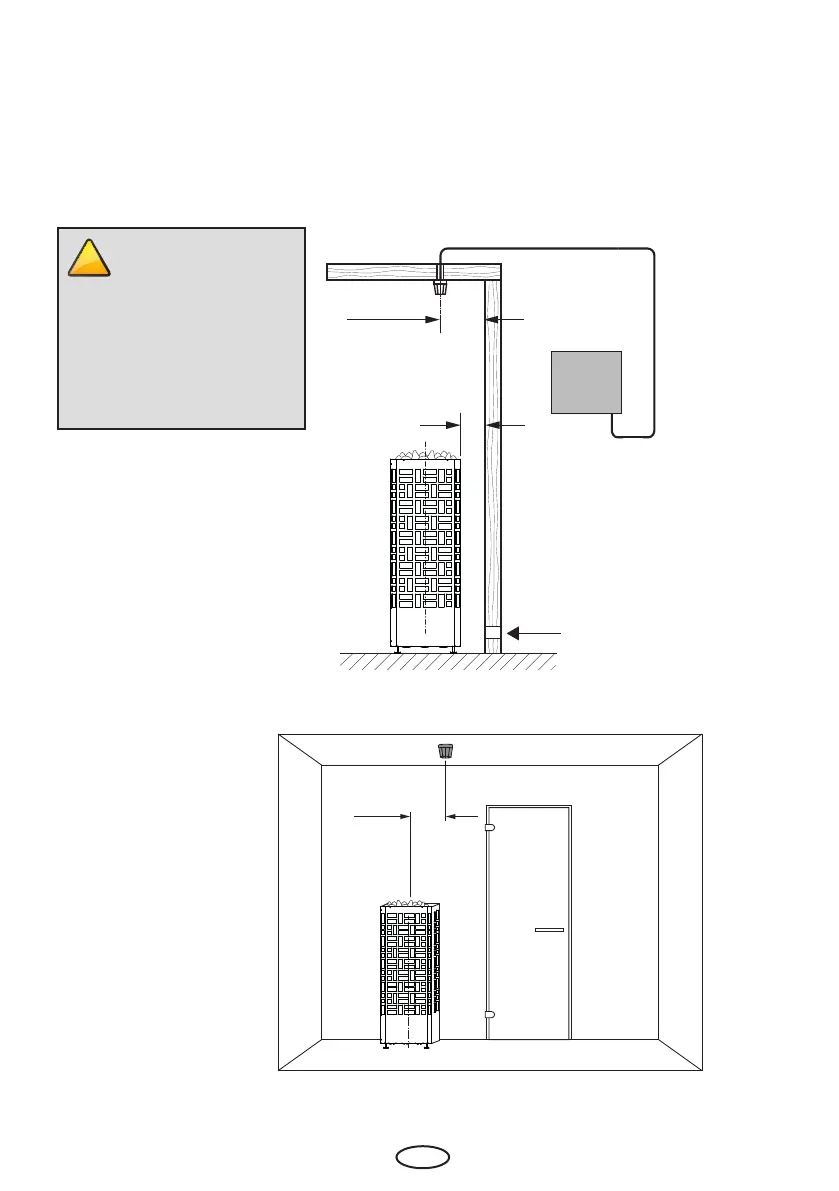

Installation of the heater sensor above the heater
Mount the heater sensor in sauna cabins according to Fig. 10 and 11. If the installation
instructions for your sauna control unit states a different position for the sensor, always
use this position for the heater sensor.
!
Attenion!
Different sensor posi-
tion. Pay attention to
the different position
of the sensor!
min. 27 cm
Fühlerleitung
12
cm
Zuluft
Sauna-
control unit
sensor cable
air supply
