ROW ONE (Continued)

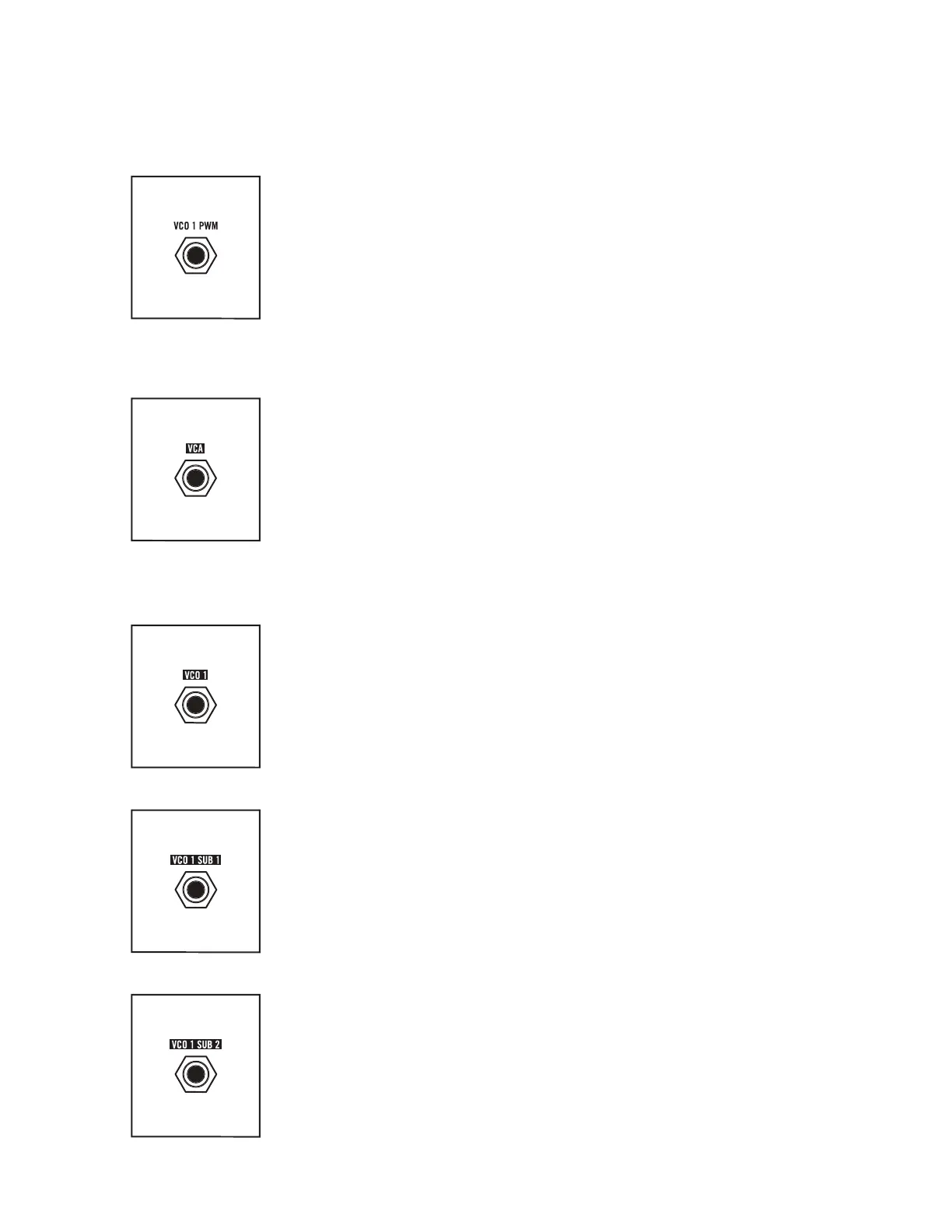

VCO 1 PWM INPUT
Connect a control voltage to this input to modulate the Pulse Width of VCO 1
and of the SUB 1 and SUB 2 subharmonic oscillators associated with VCO 1.
In order to hear the eect, the Square wave must be selected using the VCO
1 WAVE switch. A connection made here overrides the internal connection
(subharmonic oscillator sawtooth 1) used to control PWM with the VCO 1 WAVE
switch in the center position.
CV INPUT: -5V to +5V
(1% Duty Cycle/Narrow Pulse to 99% Duty Cycle/Wide Pulse)
VCA OUTPUT
This output jack provides a Subharmonicon output signal at the Eurorack level.
AUDIO OUTPUT: 10V peak to peak
ROW TWO
VCO 1 OUTPUT
The audio output of VCO 1 is available at this jack.
AUDIO/CV OUTPUT: 10V peak to peak
VCO 1 SUB 1 OUTPUT
The audio signal of VCO 1, Subharmonic Oscillator 1 is available here.
AUDIO/CV OUTPUT: 10V peak to peak
VCO 1 SUB 2 OUTPUT
The audio signal of VCO 1, Subharmonic Oscillator 2 is available here.
AUDIO/CV OUTPUT: 10V peak to peak
THE PATCHBAY (Continued)

Moog Subharmonicon Specifications

General

Type	Semi-modular analog synthesizer
Sequencer	2x 4-step sequencers
Weight	3.5 lbs
Envelope	No dedicated envelope generator
Clock Input	Yes
Sync Input	Yes
MIDI	MIDI In via 3.5mm TRS
Subharmonic Generators	4 x Subharmonic Oscillators
CV/Gate	Yes
Audio Output	1/4"
Oscillators	2 VCOs with selectable waveform (sawtooth, square)
Patch Points	32 patch points
