Moog Subharmonicon User Manual

48
NOTES:
Tune SEQ 1 and SEQ 2 to desired hi-octave pitches.
For percolating clusters, adjust the RHYTHM 2, RHYTHM 3, and RHYTHM 4 SEQ 2 knob rates.
Adjust VCA DECAY for unique universal rhythmic clusters.
Reset and play sequence; perform on all mixer dials to bring dierent pitches in and out of the cosmic void.

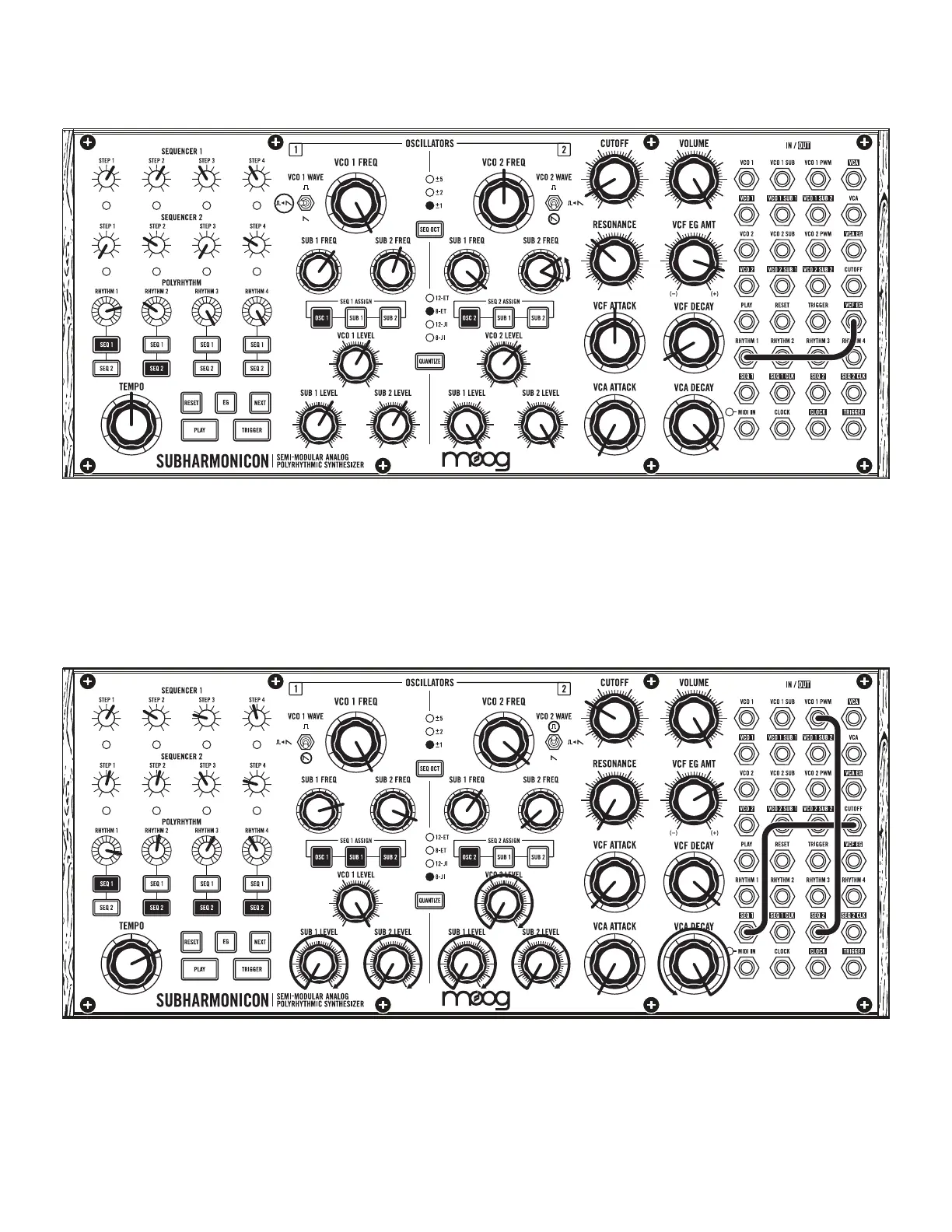

SPIRAL WAYS
NOTES:
Tune sequencers to desired pitches.
Tune SUB VCO 1 FREQ 1 to a Fifth. Tune SUB VCO 2 SUB 2 to a Major 3rd.
Adjust VCF ATTACK for crescendo depth.
SPIRAL WAYS
STAR-GATE
STAR- GATE

Moog Subharmonicon Specifications

General

Type	Semi-modular analog synthesizer
Sequencer	2x 4-step sequencers
Weight	3.5 lbs
Envelope	No dedicated envelope generator
Clock Input	Yes
Sync Input	Yes
MIDI	MIDI In via 3.5mm TRS
Subharmonic Generators	4 x Subharmonic Oscillators
CV/Gate	Yes
Audio Output	1/4"
Oscillators	2 VCOs with selectable waveform (sawtooth, square)
Patch Points	32 patch points
