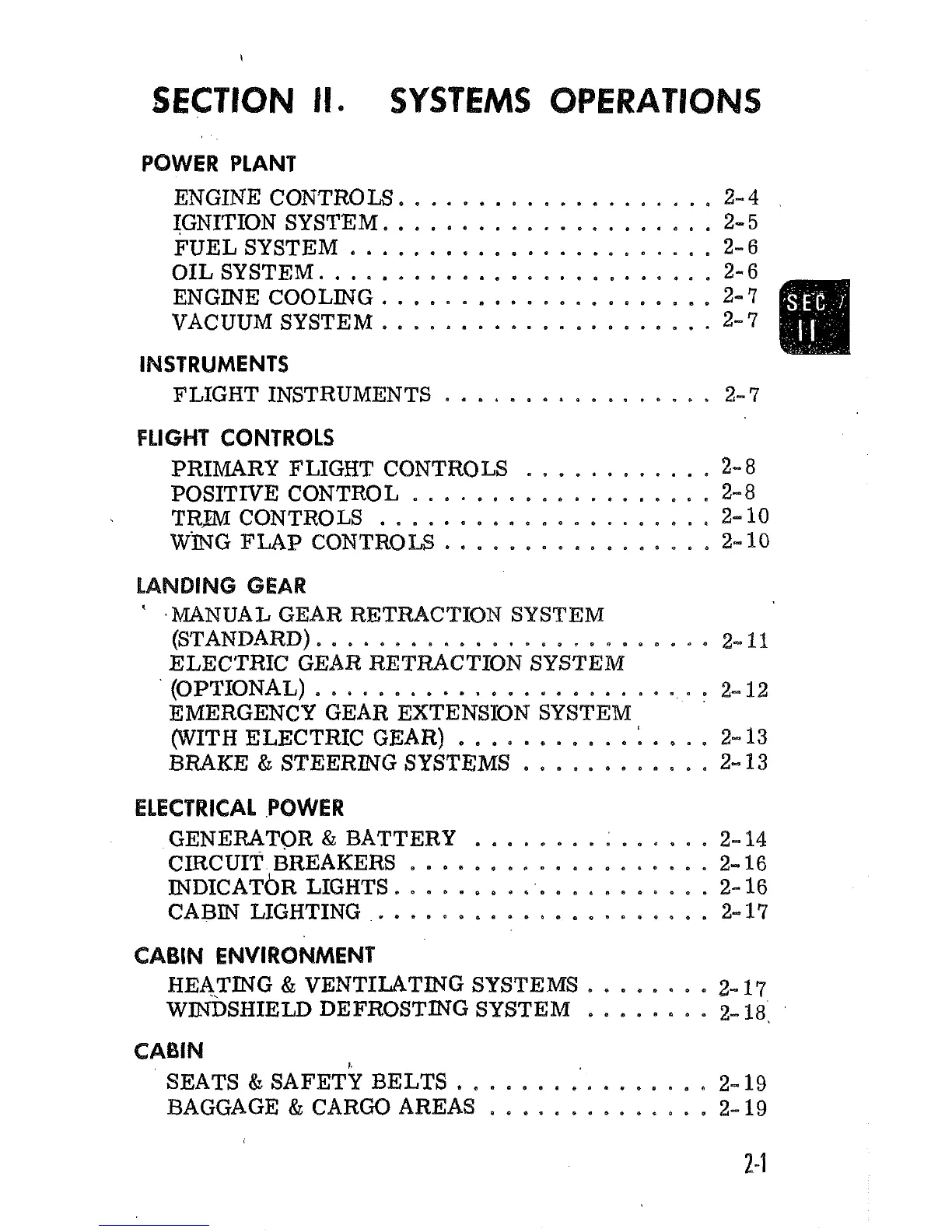

SECTION II . SYSTEMS OPERATIONS
POWER PLANT
ENGINE CONTROLS .................... 2-4
IGNITION SYSTEM ..................... 2-5
FUEL SYSTEM ....................... 2-6
OIL SYSTEM
......................... 2-6
ENGINE COOLING
..................... 2-7
VACUUM SYSTEM ..................... 2-7
INSTRUMENTS
FLIGHT INSTRUMENTS ................. 2-7
FLIGHT CONTROLS
PRIMARY FLIGHT CONTROLS ............ 2-8
POSITIVE CONTROL
................... 2-8
TRJM CONTROLS ..................... 2-10
W'ING FLAP CONTROLS ................. 2-10
LANDING GEAR
' .MANUAL GEAR RETRACTION SYSTEM
(STANDARD)
......................... 2-11
ELECTRIC GEAR RETRACTION
SYSTEM
(OPTIONAL) ......................... 2-12
EMERGENCY GEAR EXTENSION SYSTEM
(WITH ELECTRIC GEAR)
...........
.... 2-13
BRAKE & STEERING SYSTEMS ............ 2-13
ELECTRICAL POWER
GENERATOR&BATTERY ............... 2-14
CIRCUIT BREAKERS
................... 2-16
INDICATOR LIGHTS .................... 2-16
CABIN LIGHTING ..................... 2-17
CABIN ENVIRONMENT
HEATING & VENTILATING SYSTEMS ........ 2-17
WINDSHIELD DEFROSTING SYSTEM ........
2- 18*
CABIN
SEATS&SAFETYBELTS. ............... 2-19
BAGGAGE
& CARGO AREAS .............. 2-19
