MOONEY @mm-- OWNERS MANUAL

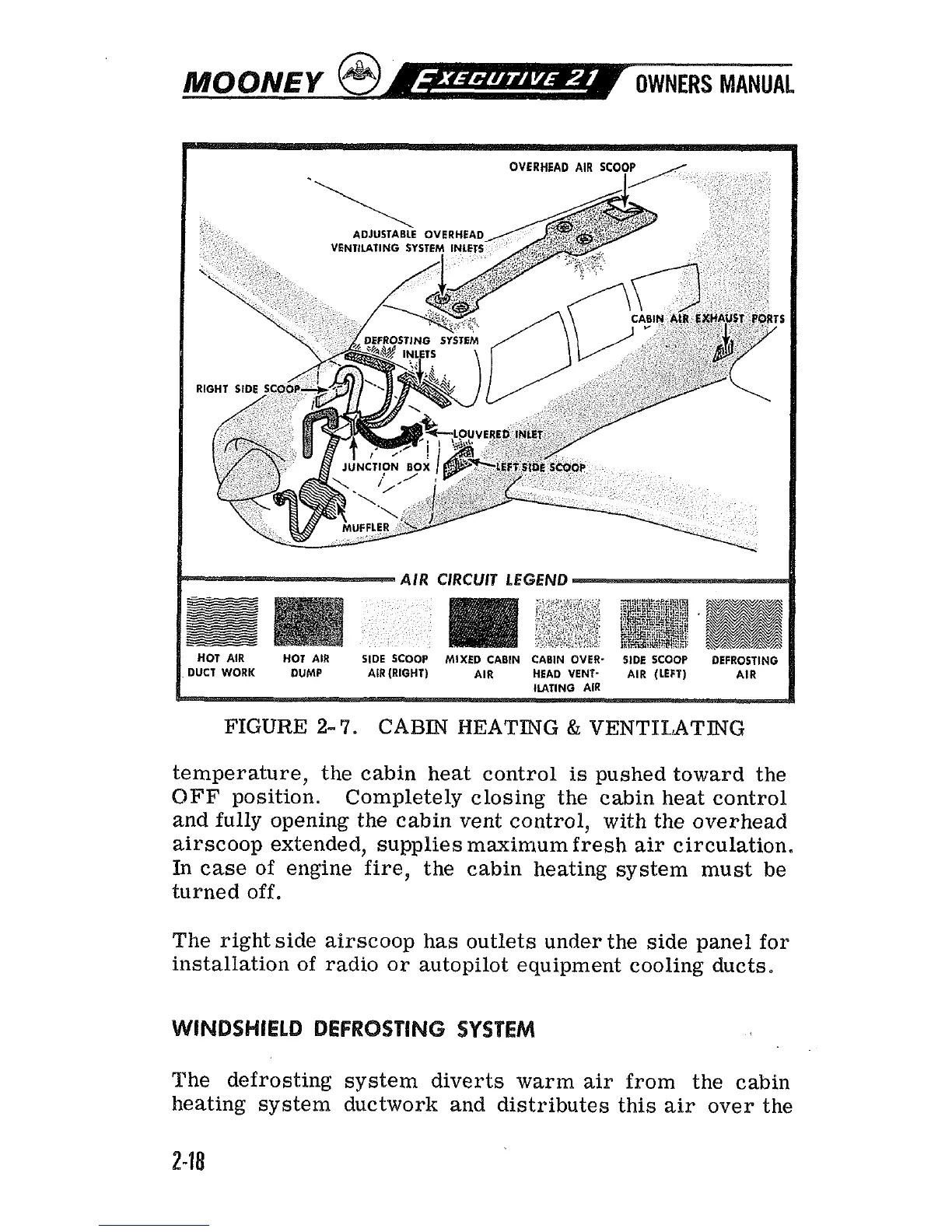

FIGURE 2- 7.
CABIN HEATDJG & VENTILATING
temperature, the cabin heat control
is pushed toward the
OFF position. Completely closing the cabin heat control
and fully opening the cabin vent control, with the overhead
airscoop extended, supplies maximum fresh air circulation.
In case of engine fire, the cabin heating system must be
turned off.
The right side
airscoop has outlets under the side panel for
installation of radio or autopilot equipment cooling ducts.
WINDSHIELD DEFROSTING SYSTEM
The defrosting system diverts warm air from the cabin
heating system
ductwork and distributes this air over the
