MooNEk'
@--
OWNERS
MANUAL
ELECrRlCAL POWER
GENERATOR
&
BATTERY
The direct-current electrical power system has a 35-am-
pere- hour 12-volt negative-ground storage battery in the
tailcone. The ammeter in the instrument cluster indicates
battery charging or discharging rate.
A
power loss in the
generator or voltage regulator will be shown as a discharge
reading on the ammeter at flight power
settings;
a
dis-
charged battery will be shown as a high charge reading.
The master switch turns on the entire electrical power
supply system. The master switch must not be flipped off
and on in flight while electrical equipment
is
operating.
CIRCUIT
BREAKERS
Push- to- reset -or toggle- switch circuit breakers protect all
of the circuits
in
the electrical power systems. Circuit

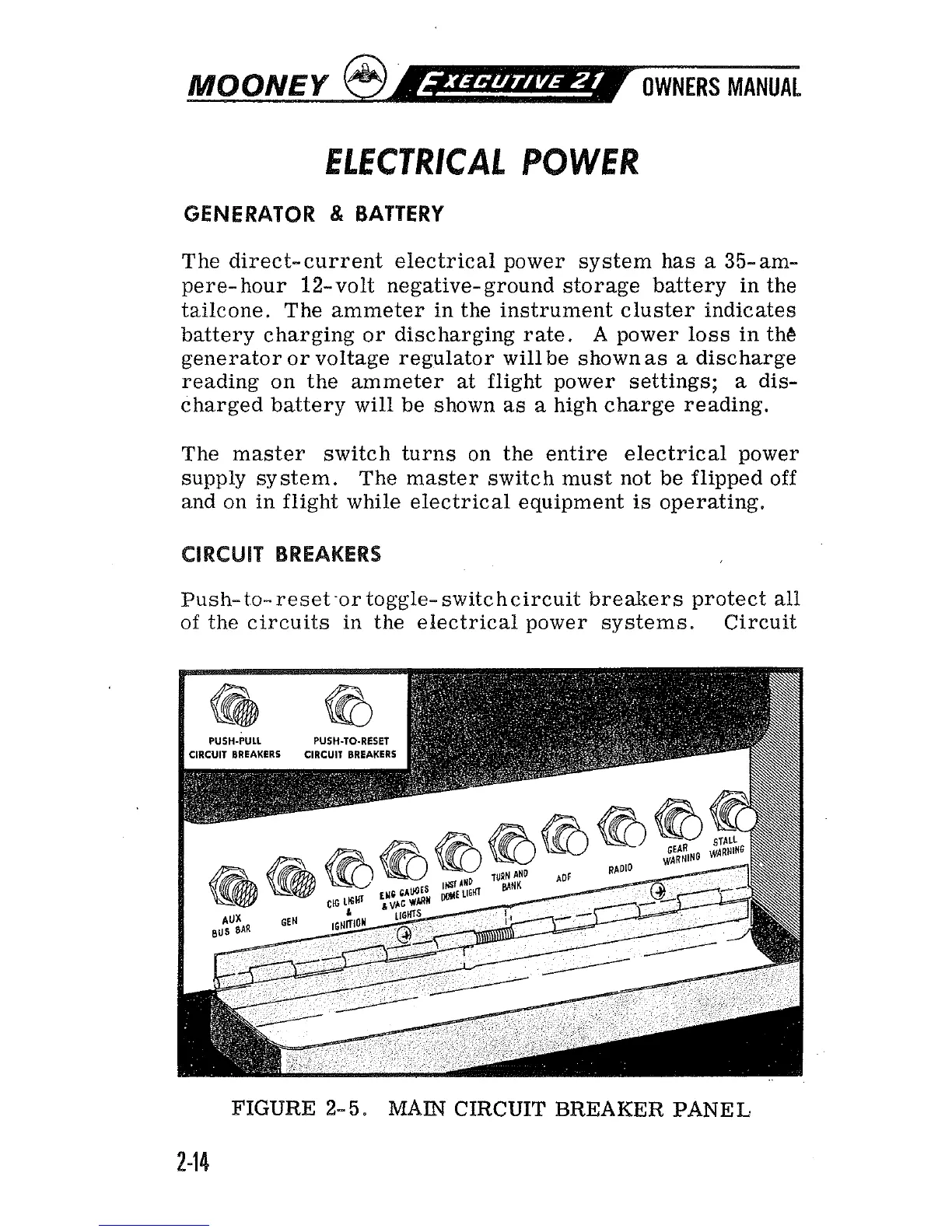

FIGURE
2-
5.
MAIN
CIRCUIT BREAKER PANEL
