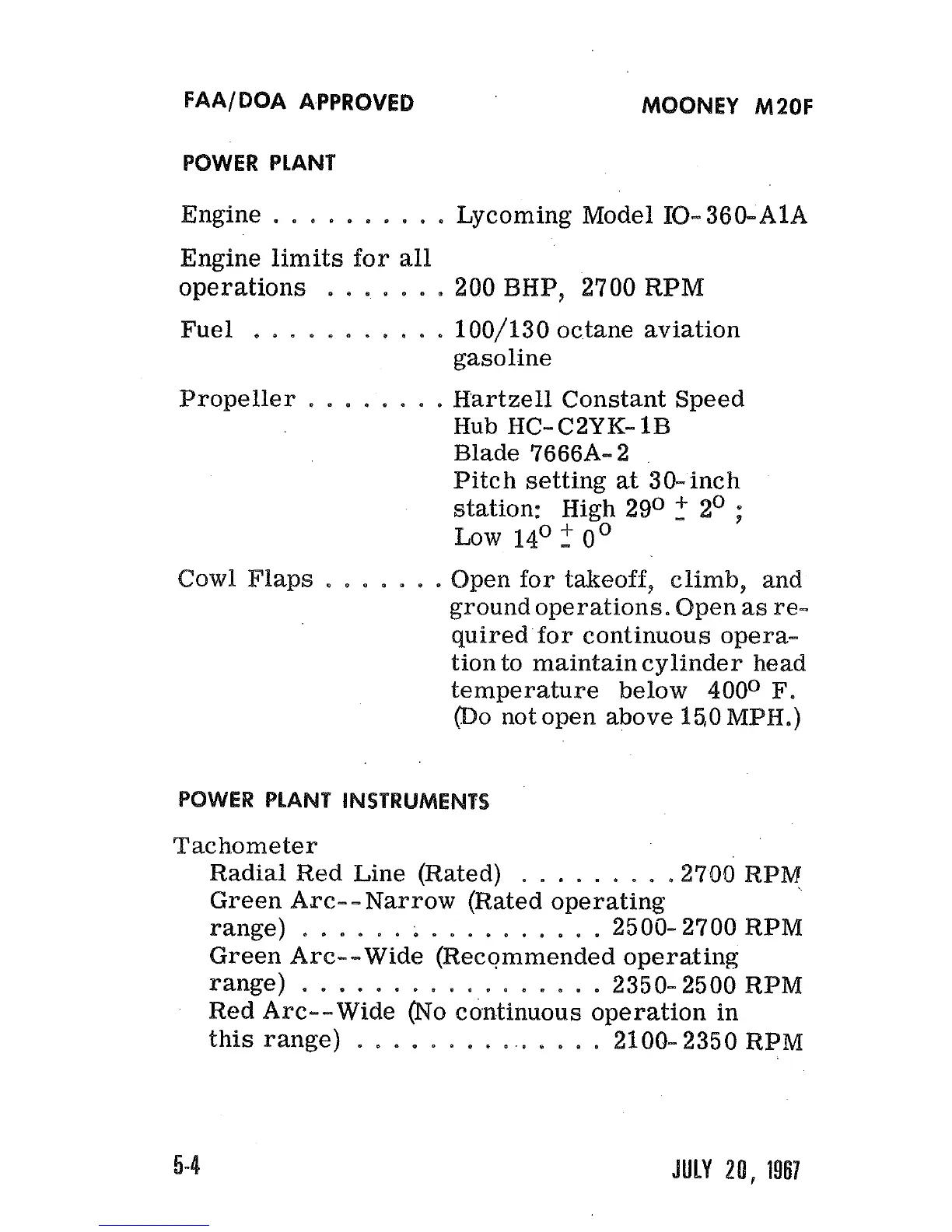

FAAIDOA APPROVED MQONEY M20F
POWER PLANT
Engine
..........
Lycoming Model
10-
360-A1A
Engine limits for all
operations
.......
200
BHP,
2700
RPM
Fuel
...........
100/130 octane aviation
gasoline
Propeller
........
Hartzell Constant Speed
Hub HC-C2YK-IB
Blade 76668- 2
Pitch setting
at
30-inch
station: High 29O
+
2O
7
0
+
o0
Low 14
-
@ow% Flaps
.......
Open for takeoff, climb, and
ground operations.
Open
as
re-
quired for continuous opera-
tion to maintain cylinder head
temperature below
400° F.
(840
not open above I50 MPW.)
POWER PLANT INSTRUMENTS
Tachometer
........
Radial Red Line (Rated)
.2700
RPM
Green
Arc-- Narrow (Rated operating
range)
.................
2500- 2700 RPM
Green Arc-- Wide (Recommended operating
range)
.................
2350-2500 RPM
Red Arc-- Wide (No continuous operation
in
this range)
..............
2100- 2350 RPM
