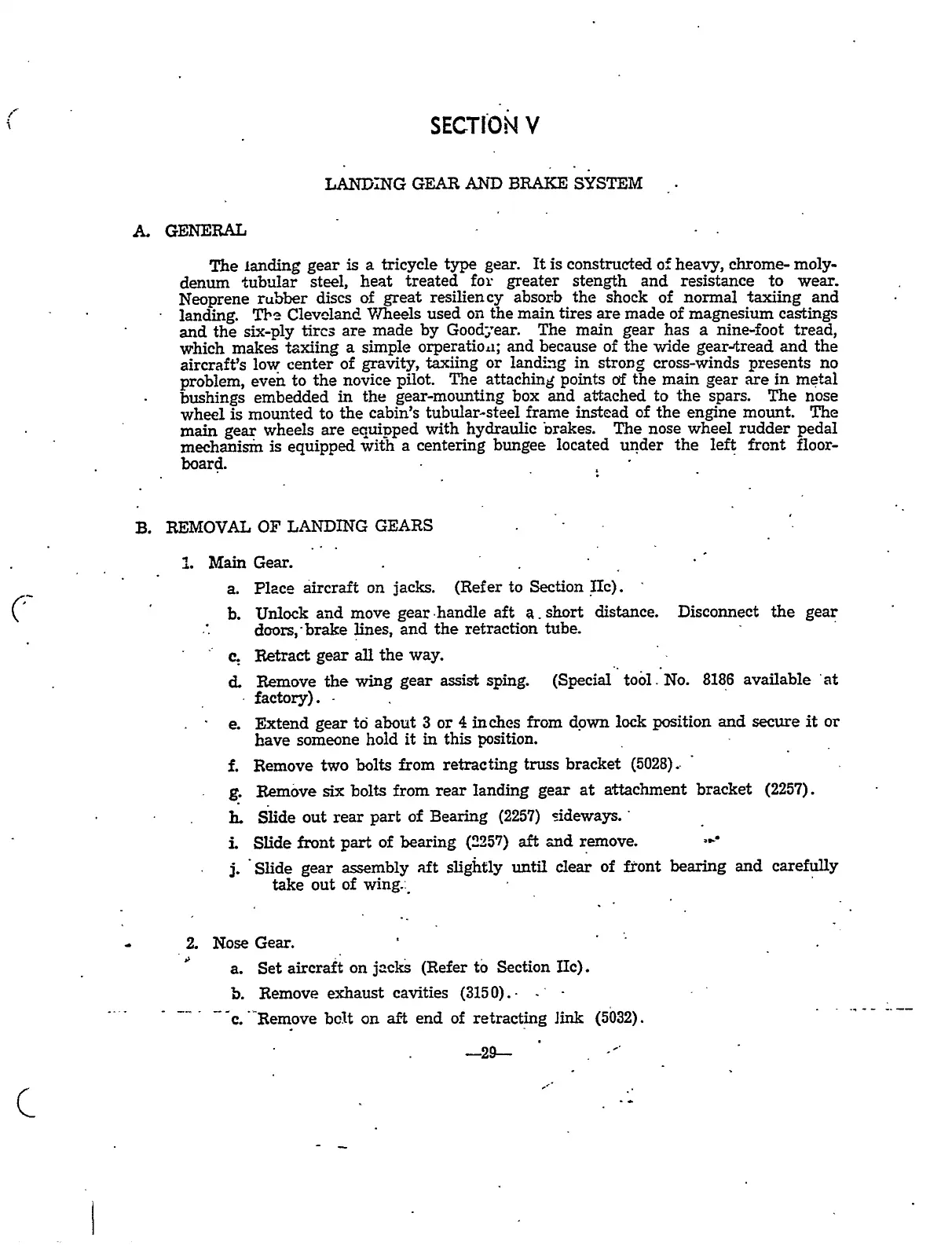

SECTION
V
LANDING
GEAR
AND
BRAKE
SYSTEM
A.
GENERAL
The
landin~
gear
is
a
tricycle
type
gear.
It
is
constructed
of
heavy,
chrome-
moly-
denum
tubular
steel,
heat
treated
for
greater
stength
and
resistance
to
wear.
Neoprene
rubber
discs
of
great
resiliency
absorb
the
shock
of
normal
taxiing
and
landing.
The
Cleveland
VJheels
used
on
the
main
tires
are
made
of
magnesium
castings
and
the
six-ply
tires
are
made
by
Good~ear.
The
main
gear
has
a
nine-foot
tread,
which
makes
taxiing
a
simple
orperatioll;
and
because
of
the
wide
gear´•tread
and
the
aircraft’s
low
center
of
gravity,
taxiing
or
land~g
in
strong
cross-winds
presents
no
problem,
et-en
to
the
novice
pilot.
The
attachin~C
points
of
the
main
gear
are
in
metal
bushings
embedded
in
the
gear-mounting
box
and
attached
to
the
spars.
The
nose
wheel
is
mounted
to
the
cabin’s
tubular-steel
frame
instead
of
the
engine
mount.
The
main
gear
wheels
are
equipped
with
hydraulic
brakes.
The
nose
wheel
rudder
pedal
mechanism
is
equipped
with
a
centering
bungee
located
under
the
left
front
noor-
board.
B.
REMOVAL
OF
LANDING
GEARS
1.
Main
Gear.
a.
Place
aircraft
on
jacks.
(Refer
to
Section
IIc).
b.
Unlock
and
move
gearhandle
aft
a~short
distance.
Disconnect
the
gear
doors,-bralre
lines,
and
the
retraction
tube.
e.
I~tract
gear
all
the
way.
d.
Remove
the
wing
gear
assist
sping.
(Special
tobl.No.
8186
available~at
factory).
e.
Extend
gear
td
about
3
or
4
inches
from
down
lock
position
and
secure
it
or
have
someone
hold
it
in
this
position.
f.
Remove
two
bolts
from
retracting
truss
bracket
(5028).
g.
Remove
six
bolts
from
rear
landing
gear
at
attachment
bracket
(2257).
h.
Slide
out
rear
part
of
Bearing
(2257)
sideways..
i
Slide
front
part
of
bearing
(2257)
aft
and
remove.
j.’Slide
gear
assembly
aft
sligi~ly
until
clear
of
f~ont
bearing
and
carefully
take
out
of
wing..
2.
Nose
Gear.
a.
Set
aircraft
on
j~dklj
(Refer
to
Section
IIc).
5.
Remove
exhaust
cavities
(3150).
c.’-Remove
bolt
on
aft
end
of
retracting
link
(5032).
-29-
