Mooney M20B - Page 78

r’

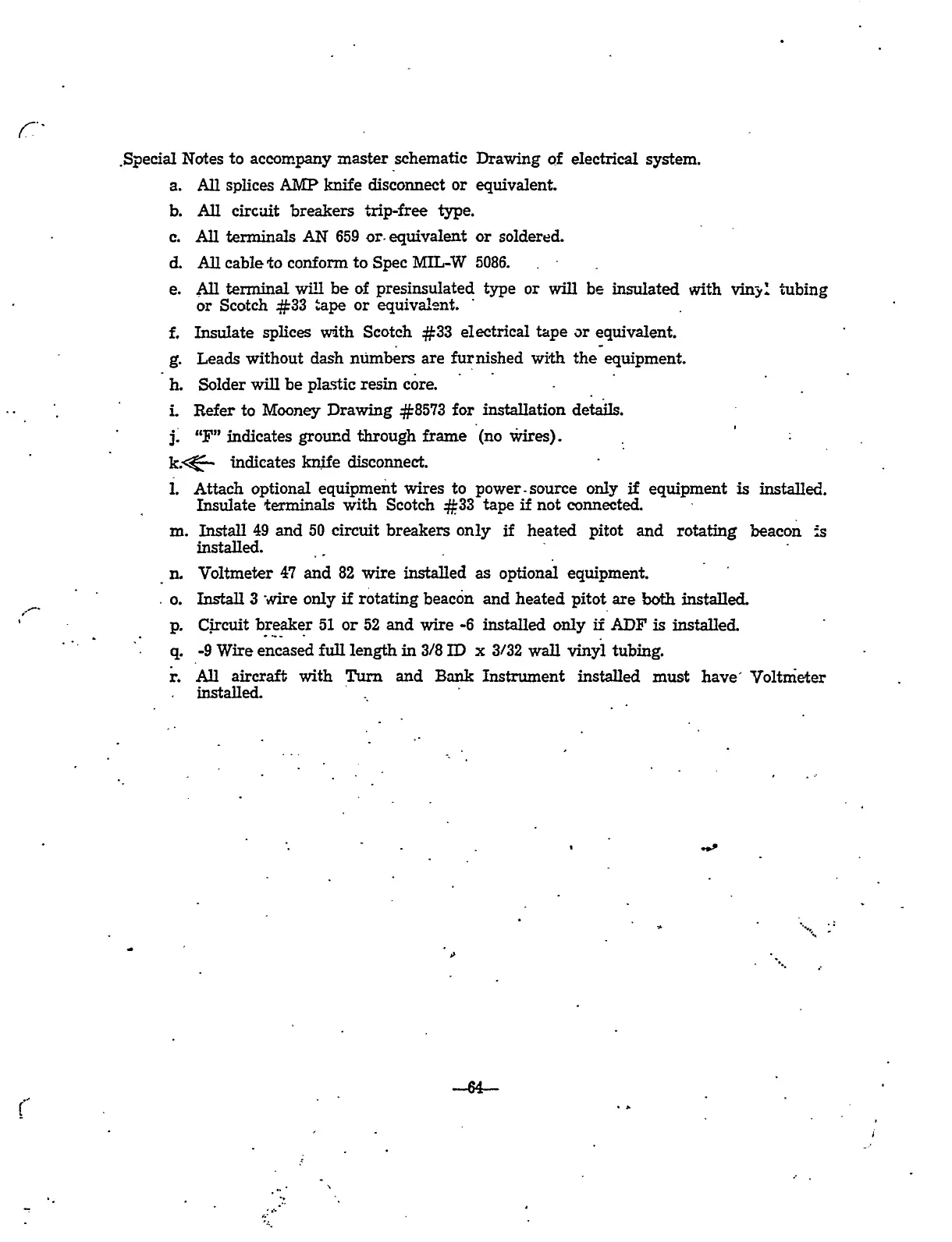

Notes
to
accompany
master
schematic
Drawing
of electrical
system.
a.
All
splices
A~P
knife
disconnect
or
equivalent.
b. All
circuit
breakers
trip-free
type.
c.
All terminals
AN
659
or´•equivalent
or
soldered.
d.
All
cable4o
conform
to
Spec
MlL-W
5086.
e.
All
terminal
will
be of
presinsulated
type
or
will
be
insulated
~vith
vin-~:
tubing
or
Scotch
#33
tape
or
equivalent.
f.
Insulate
splices
with
Scotch
#33
electrical
tape
or
equivalent.
g.
Leads
without
dash
niunb~rs
are
furnished
with
the~equipment.
h.
Solderwillbeplasticresin
core.
i
Refer
to
Mooney Drawing
#8573
for installation details.
j.
indicates
ground
through
frame
(no
~ires).
k~-
indicates
knife
disconnect.
i.
Attach
optional
equipmeht
wires
to
power.source
only
if
equipment
is
installed.
Insulate terminals
with Scotch
tape
if
not
connected,
m.
Install
49
and
50 circuit
breakers
only
if
heated
pitot
and
rotating
beacon
is
install~d.
a
Voltmeter
47
and 82 wire
installed
as
optional
equipment.
o.
Install
3 wire
only
if
rotating
beacon
and
heated
pitot
are
both
installed.
p.
CLrcuit
breaker
51
or
52
and
wire
-6
installed
only
if
ADF
is
installed.
q.
-9 ~ire
encased full
length
in
3/8
ID
x
3/32
wall
vinyl
tubing.
r.
All
aircraft with Turn and
Rank
Instrument installed
must have’Voltmeter
installed.
