M2 Quick Setup Guide Manaul

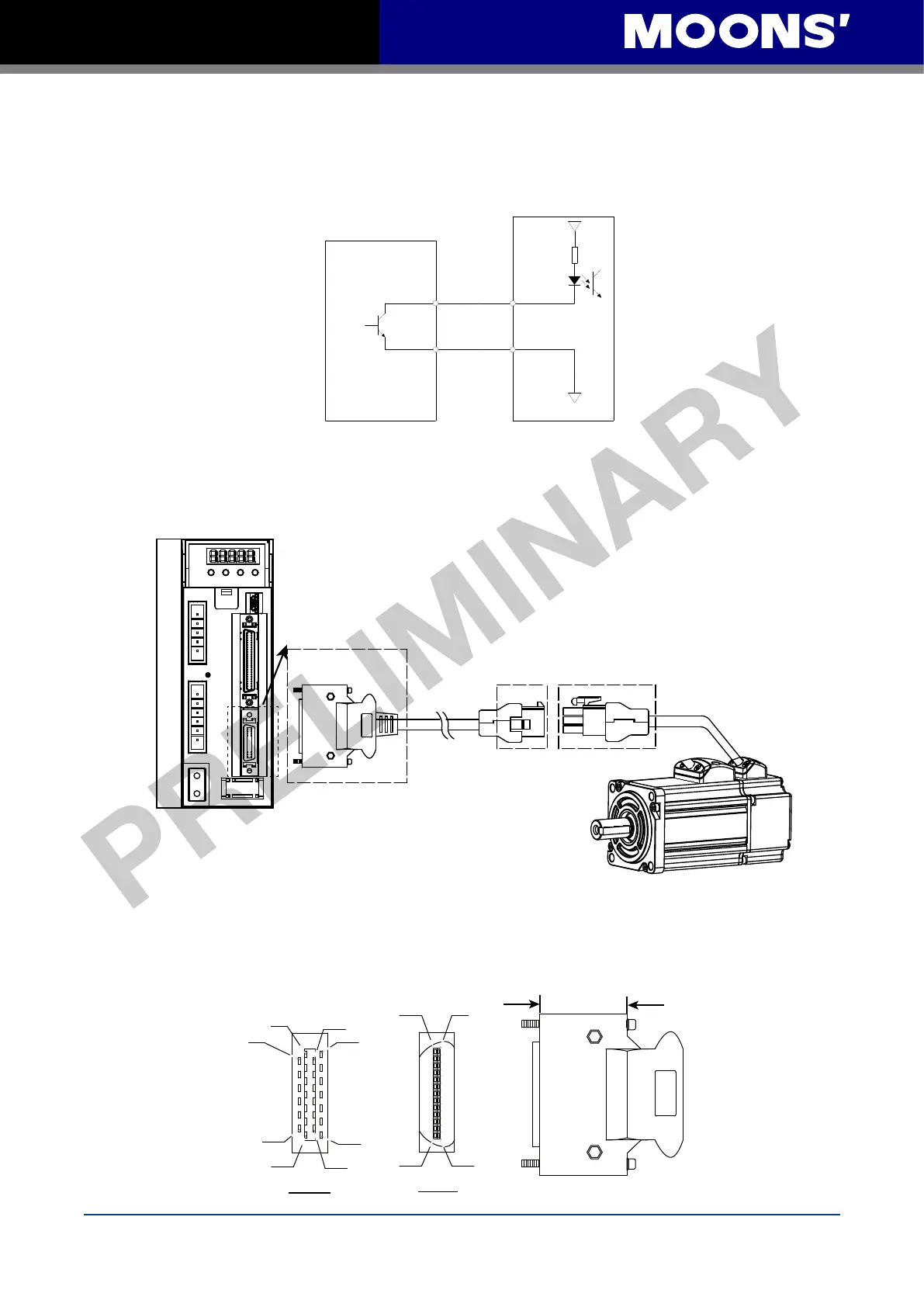

3.7.3.2 Phase Z Open Collector Output
In M2 series AC servo drive, encoder signal Z uses open collector output circuitry. Due to the
narrow bandwidth of encoder signal Z, please use high speed optocoupler circuitry for the host
receiver.
CZ
DGND
0VDC
24VDC
Servo Drive
19
15
3.8 Encoder Connector CN3
3.8.1 Motor Encoder Feedback Cable Conguration
驱动器CN3端
P2
C
N
3
编码器延长线连接头
编码器引出线编码器连接头
B1+
B2
B3
U
V
W
NOTE: Please refer to section 3.8.4 Encoder Connector Specications for details.
3.8.2 The Layout of CN3 Connector
1
13
14
26
1
2
12
13
15
14
25
26
A
B
View A
View B
