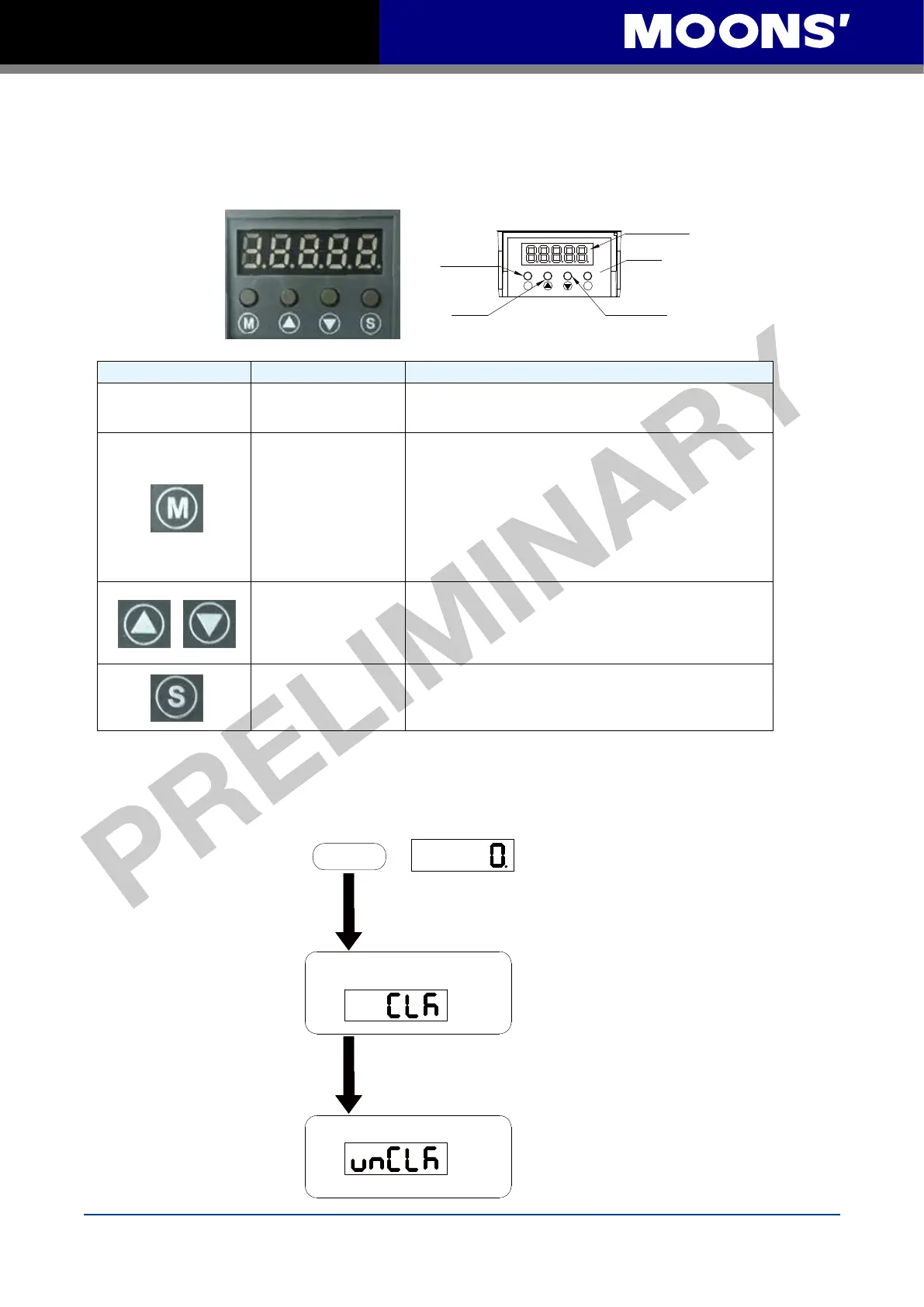

5 Display and Operation
5.1 Description of Operation Panel
LED Display
SET
DOWN
MODE
UP
M
S
Symbol Name Details
LED Display
The LCD display (5 digits, 7 segments) show the drive’s
operating condition and warning codes, parameters and
settings values.
MODE Key
Press and hold on mode button to switch LED display mode
a). monitoring mode
b). monitoring selection mode
c). function selection mode
d). parameter setting mode
When editing the parameters, press on MODE button can
move the cursor to the left and then change parameters by
using arrow keys.
UP/DOWN Key
UP and DOWN Key. Pressing the UP and DOWN key can
scroll through and change monitor codes, parameter groups
and various parameter settings.
SET Key
Press to entering mode
Press and hold to save parameters/settings
5.2 Key Lock
M2 series AC servo drive has Key Lock function to prevent unexpected operation. When the key
is locked ,the panel can not be operated of set any parameters.
Monitor Status
Press and hold SET key for 1 second
The Key Lock is active.
Any key operation will display as follows:
Press and hold the SET Key for 1 second
to Unlock the panel when the Key Lock is active.
Unlock the key
