9
Rev. 1.0
4/29/2016
M2 Quick Setup Guide Manaul
3 Connections and Wiring
3.1 Connecting to Peripheral Devices

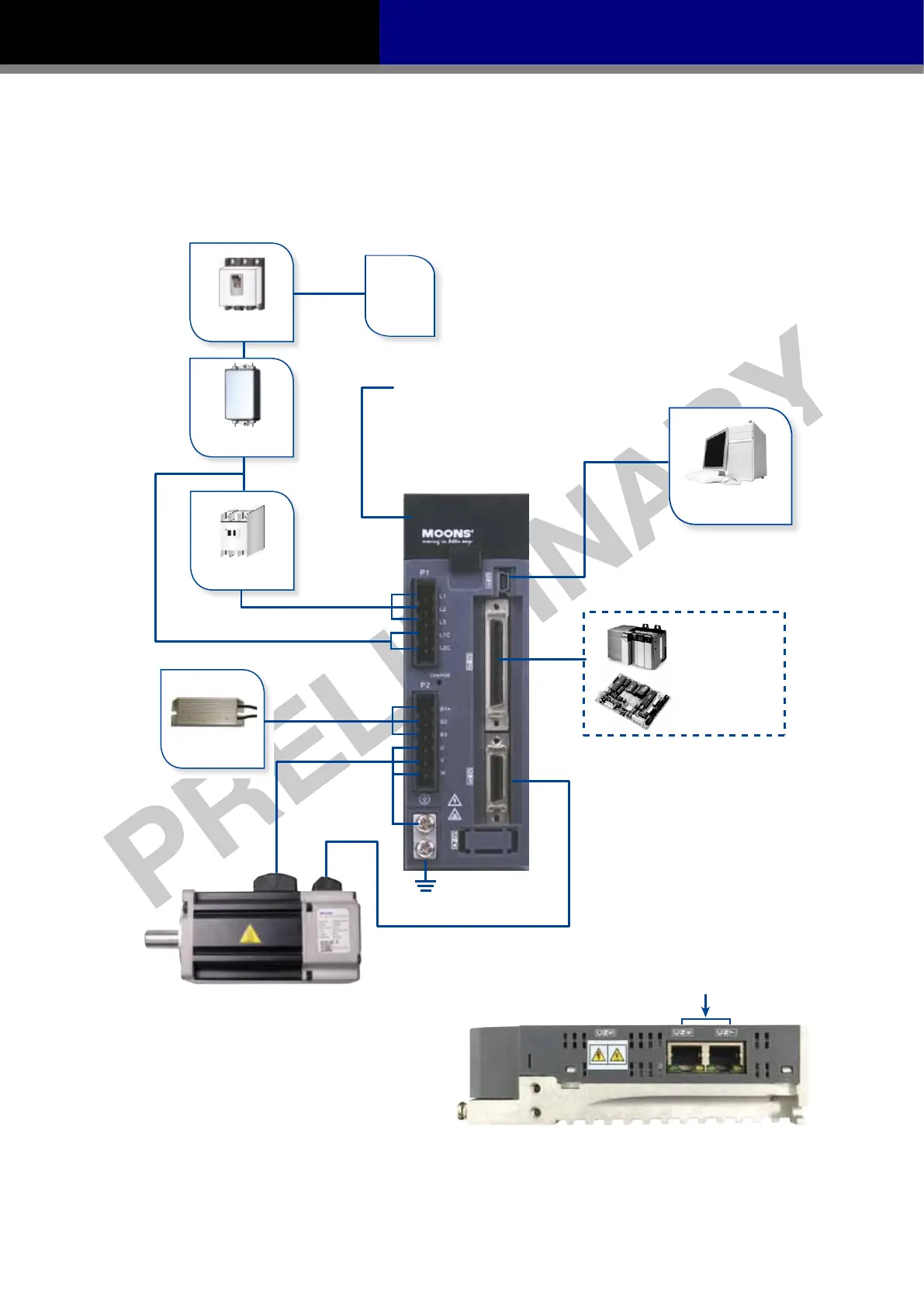

3.1.1 System Conguration
Non Fuse Breaker
Line Filter
(optional)
Line Filter
AC Power Part No. Vendor
Single phase 240Vac 10ET1 Tyco
Three phase 240Vac DF300-10A-01 Dephir
PLC
LED Display
The 5 digit,7 segment LED displays the
diver status and faults.
Operation Panel
Function keys are used to perform status
display,monitor and diagnostic,function
and parameter setting.
I/O Interface
Used to connect PLC ,motion card
and other controllers.
Main Power Input
Control Power Input
Motor Power Cable
Motor Feedback Cable
Ground (PE)
USB communication Port
(CN1)
Regeneration
Absorbing Resistor
Electromagnetic
Contactor
Motion Control Card
AC Power
CANBus, RS-485, Ethernet
Communication Port
