Connecting Analog Input on the IN/OUT1 connector
The MSSTAC6 has a ±10 Volt analog input that can be used by the drive for a number of dedicated
purposes for controlling the motor or can be used for general purpose analog input signals.

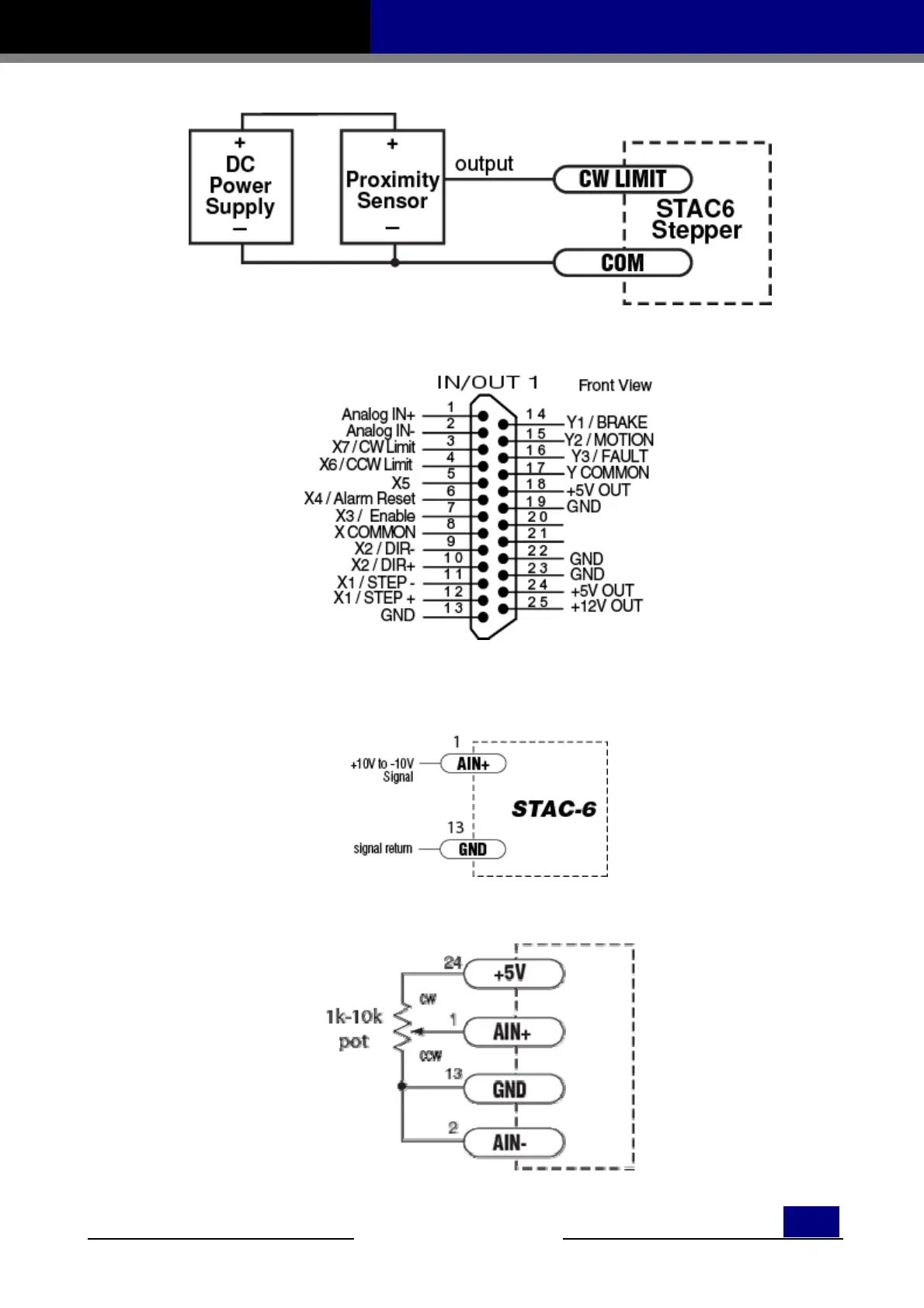

Connecting an Analog Input to a Potentiometer or Joystick
