The Brake, Alarm and Motion outputs can only sink current. An optional I/O board adds four additional
programmable outputs which can be used to drive LEDs, relays and the inputs of other electronic devices
such as PLCs and counters.
The COM terminal must be tied to power supply (-).
Diagrams of each type of connection follow.
Do not connect the outputs to more than 30VDC.
The current through each output terminal must not exceed 100 mA.

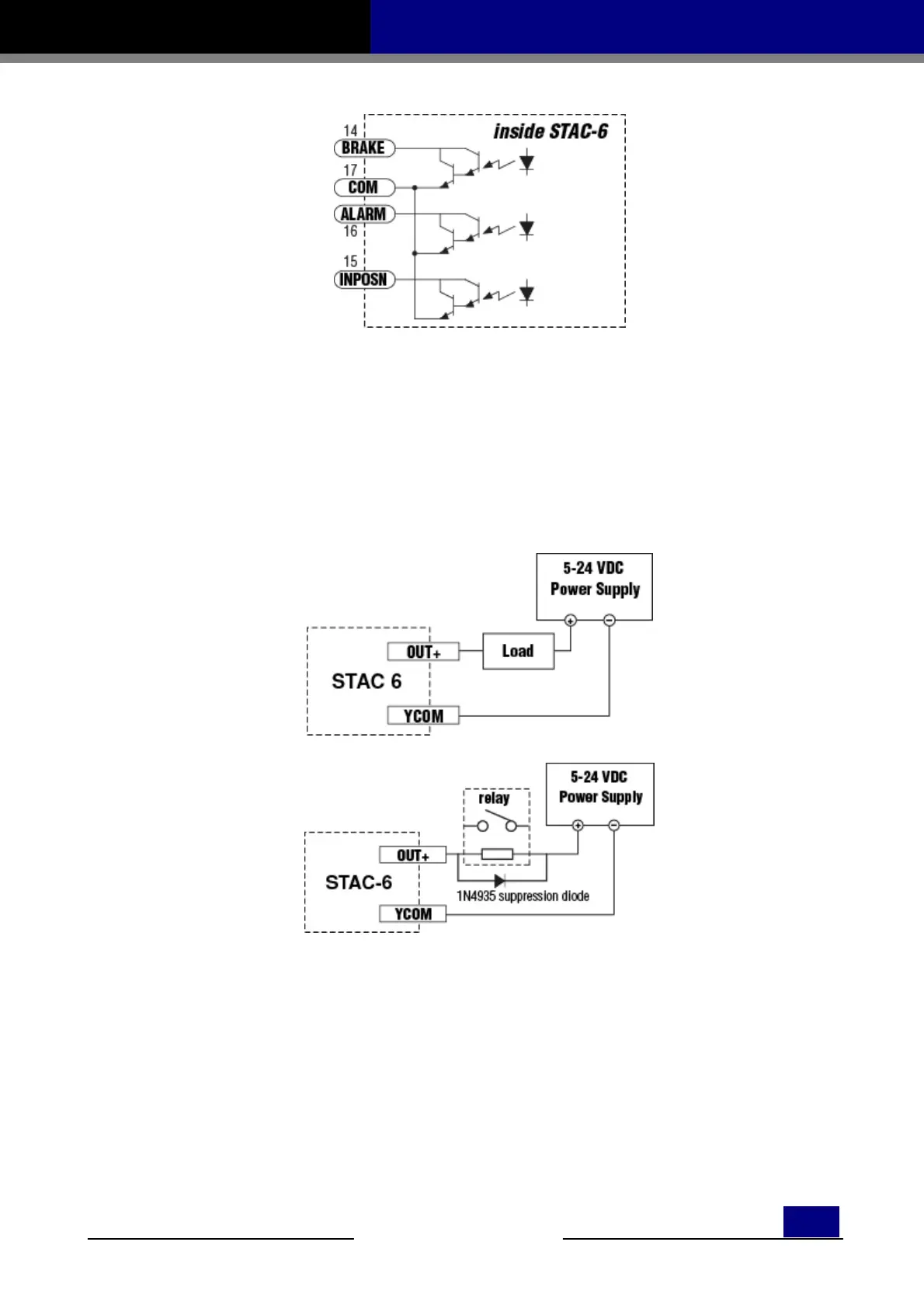

Connecting Digital Inputs on the IN/OUT2 connector
