SR4/SR8 Stepping Motor Drive User Manual
www.moons.com.cn

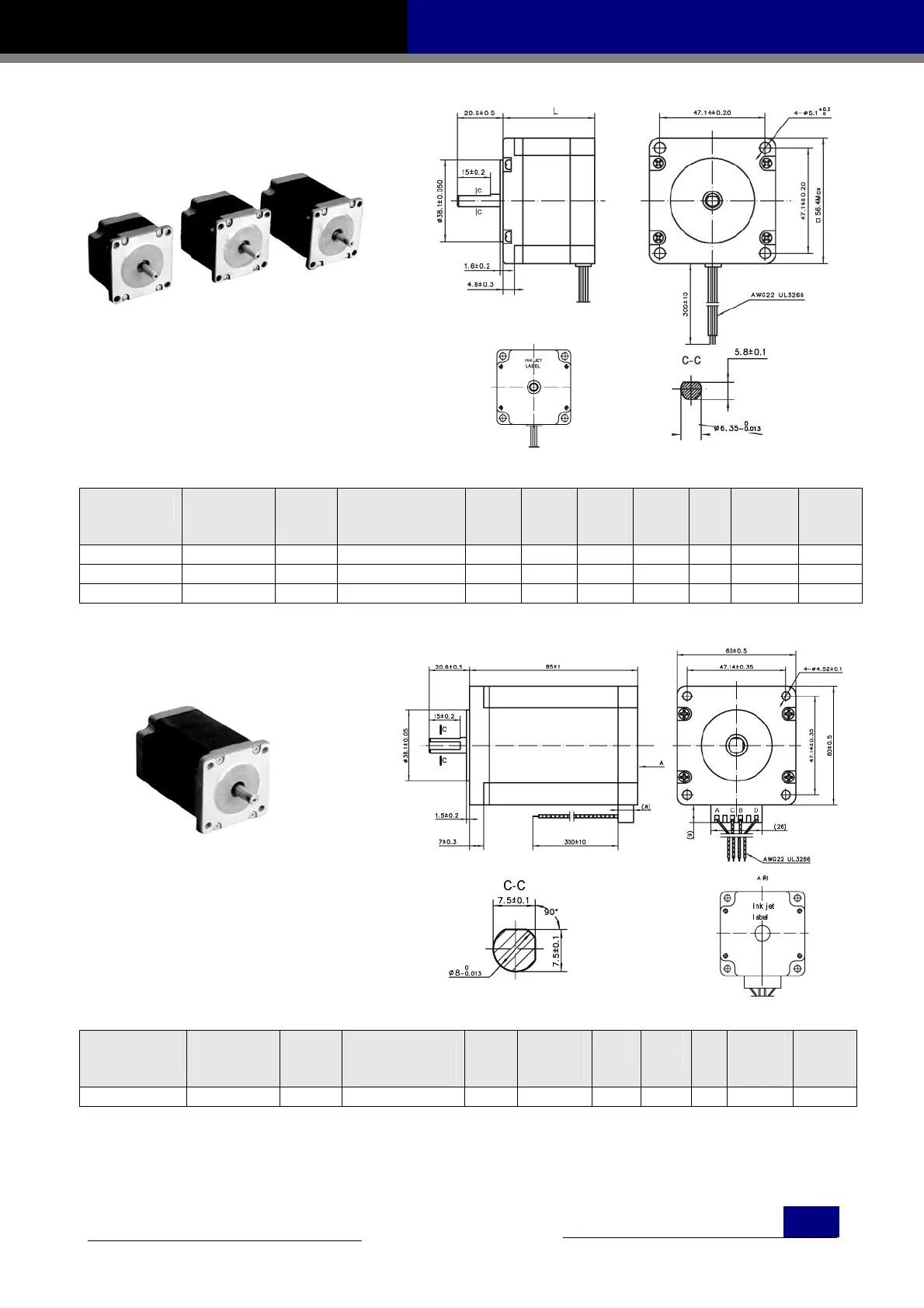

23HS Series1.8°
Unit: mm
Parameters
PART# CONNECTION
MOTOR
LENGTH
（mm）
MOTOR HOLDING
TORQUE
（mN·m）
#OF
LEADS
STEP
ANGLE
（deg）
AMPS OHMS MH
MOTOR
INERTIA
(g-cm
2
)
MOTOR
WEIGHT
(Kg.)
23HS0416-01 bipolar 41 600 4 1.8 4.2 0.3 0.6 135 0.42
23HS2442-05 bipolar 54 1000 4 1.8 4.2 0.4 1.4 260 0.6
23HS3422-06 bipolar 76 1800 4 1.8 4.2 0.55 1.7 460 1
24HS Series1.8°
Unit: mm
Parameters
PART# CONNECTION
MOTOR
LENGTH
（mm）
MOTOR HOLDING
TORQUE
（mN·m）
#OF
LEADS
STEP
ANGLE
（deg）
AMPS OHMS MH
MOTOR
INERTIA
(g-cm
2
)
MOTOR
WEIGHT
(Kg.)
24HS5401-10N bipolar 85 2500 4 1.8 4.2 0.7 2.6 900 1.4
