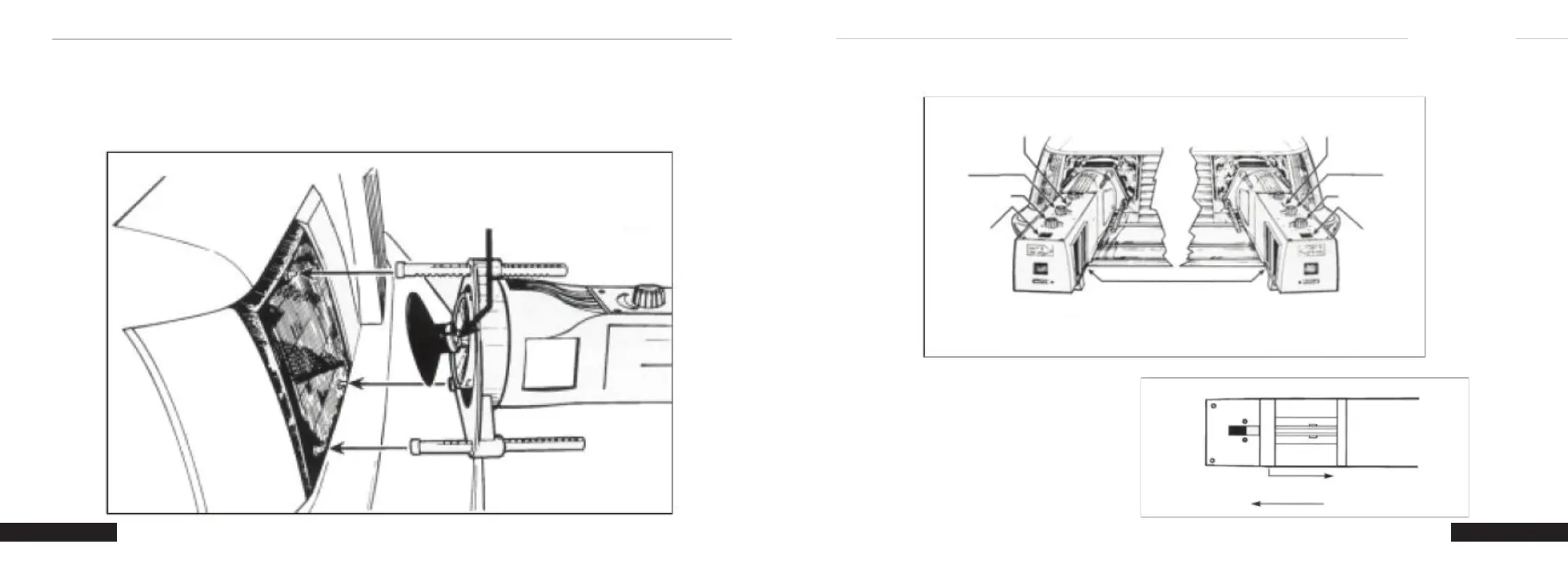

6. Place the aimers with the adaptors onto the headlights. If the adjustment rods do not touch the aiming pads, use
the extension studs to provide proper reach for the vacuum cup, or remove one or both of the extension studs. If the
articulating vacuum cap does not touch the lens of the headlights, then add one or both of the extension studs to the
vacuum cup assembly.
REMOVE / ADD
EXTENSION STUD(S)
HEADLIGHT AIMING (CONT.)
6.
Page 39
C250 HEADLIGHTS
Page 40
UNIT B MUST BE USED
ON CURB SIDE
UNIT A MUST BE USED
ON ROAD SIDE
LEVEL BUBBLE
VERTICAL
DIAL
HORIZONTAL
DIAL
VIEWING
PORT
LEVEL BUBBLE
VERTICAL
DIAL
HORIZONTAL
DIAL
VIEWING
PORT
SIGHT OPENINGS
(MUST FACE EACH OTHER)
7a. Attach each aimer to headlight by pushing the piston handle forward, then engaging the rubber
suction cup.
7b. Once attached, immediately pull back
the piston handle until it locks in place.
BOTTOM VIEW
HANDLE FORWARD TO ENGAGE CUP
HANDLE BACK
UNTIL LOCKED
7a.
7b.
