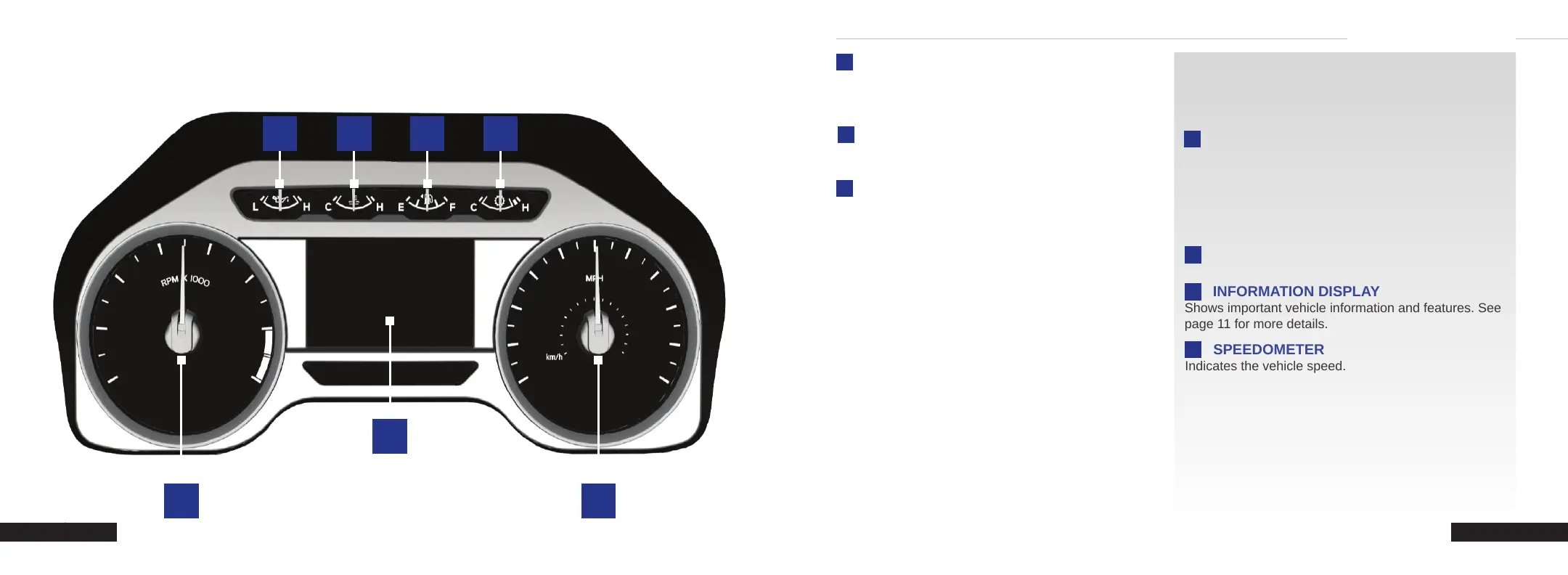

INFORMATION DISPLAY
Shows important vehicle information and features. See
page 11 for more details.
6
Page 8
ENGINE OIL
PRESSURE GAUGE
Indicates the engine oil pressure.
Note: This is a congurable gauge.
C250 INSTRUMENT CLUSTER
2
ENGINE COOLANT
TEMPERATURE GAUGE
Indicates the engine coolant temperature.
3
FUEL GAUGE
4
TRANSMISSION FLUID
TEMPERATURE GAUGE
Indicates the transmission uid temperature. Special
operating conditions can cause higher than normal
operating temperatures. See Maintenance Intervals on
page 35.
Note: This is a congurable gauge.
5
TACHOMETER
Indicates the engine speed.
SPEEDOMETER
Indicates the vehicle speed.
7
WHAT IS THE FUEL GAUGE
Indicates approximately how much fuel is in the fuel
tank.
FUEL GAUGE LIMITATIONS
The fuel gauge may not provide an accurate reading
when your vehicle is on an incline.
LOCATING THE FUEL ACCESS
The arrow adjacent to the fuel pump symbol indicates
on which side of your vehicle the fuel access is
located. See page 26 for the fuel access location.
WHAT IS THE LOW FUEL REMINDER
A low fuel level reminder displays and sounds when the
distance to empty reaches 50 mi. (80km), 25 mi. (40
km), 12 mi. (20 km) and 0 mi (0 km).
Note: The low fuel reminder can appear at di󰀨erent fuel
gauge positions depending on fuel economy conditions.
This variation is normal.
WHAT IS DISTANCE TO EMPTY
Indicates the approximate distance your vehicle can
travel on the fuel remaining in the tank. Changes in
driving pattern can cause the value to not only decrease
but also increase or stay constant for periods of time.
